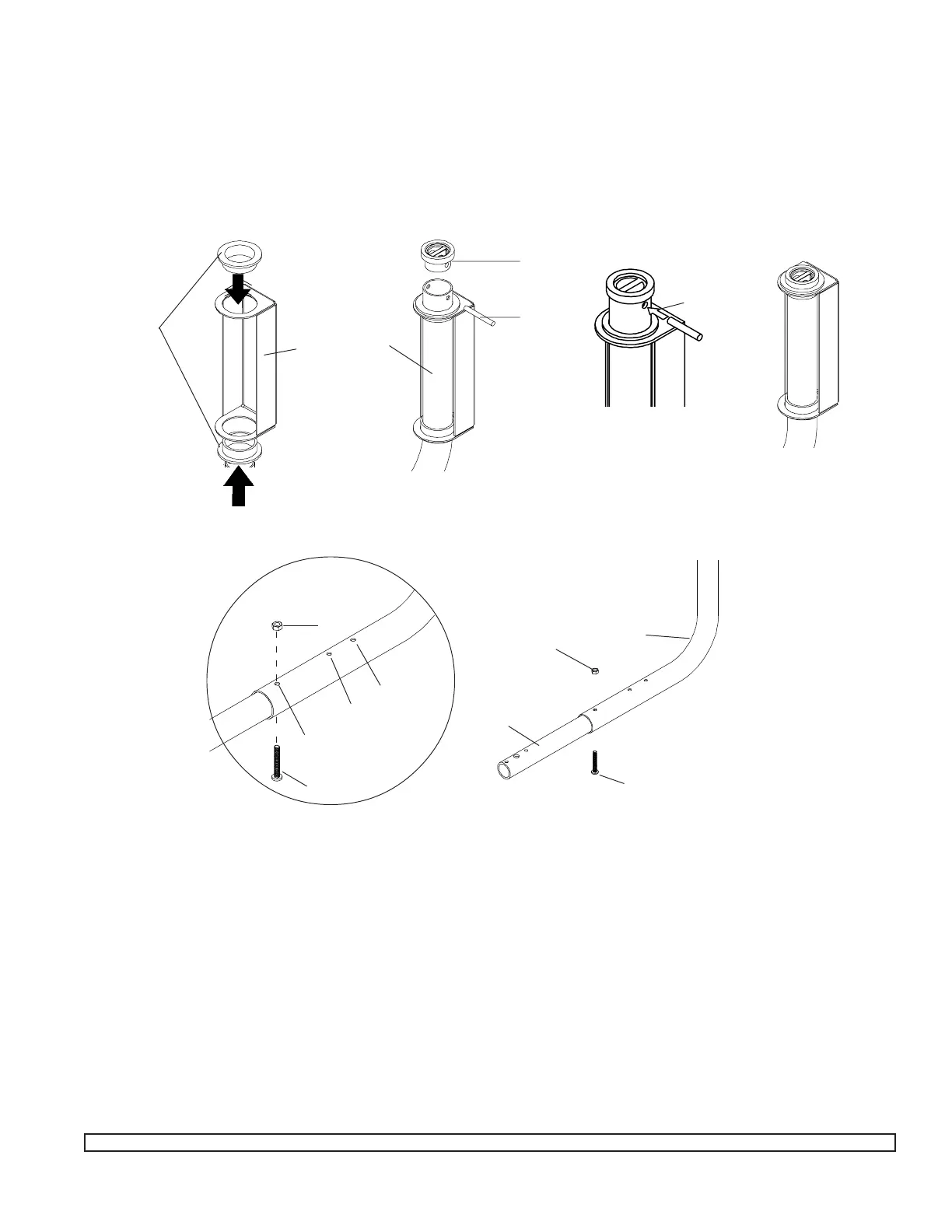

Assembling the Support Arm to the wall plate
Snap the two plastic bushings (H) into place. Insert the wall arm (E), coming up from the bottom of the wall bracket (G).
Drop in the retainer (I) and line up the holes on the retainer with the holes in the wall arm. Slide the retainer pin (J) through to
the point where it is flush on both sides of the wall arm (E). Please note that the pin will not come out either side of the tube
when it is inserted. Use a hammer to gently tap the pin into place if it is hard to insert.
Let the arm (E) slide down until the retainer (I) meets the top bushing (H).
You should now feel a nice, fluid swivel action if you move the arm left and right.
G
E
I
J
H
Set arm in desired position for the size TV you are mounting. Secure arm into desired position with screw (L) and nut (T) as
shown below.
D
E
L
T
13"
20"
27"
T
L
