68
BOILER DIMENSIONS & RATINGS
12. BOILER DIMENSIONS & RATINGS
Table 12.1: Boiler Dimensions
SERIES PEERLESS
®
PUREFIRE
®
DIMENSIONS (INCHES)
Boiler
Model
“A” “B” “C” “D” “E” “F” “G” “H” “J ” “K” “L”
PF-50 13-1/2 – 4-7/8 – – – – – – – –
PF-80 13-1/2 – 4-7/8 – – – – – – – –
PF-110 19 – 7-1/2 – – – – – – – –
PF-140 19 – 10-1/2 – – – – – – – –
PF-210 16-1/2 1-3/4 3-1/2 2-1/4 8-1/2 8-1/2 4-1/2 3 6-1/2 3 1
PF-399 28 2-3/4 7 2 19-3/4 8-1/2 5-1/4 3-1/2 5-3/4 4 1-1/2

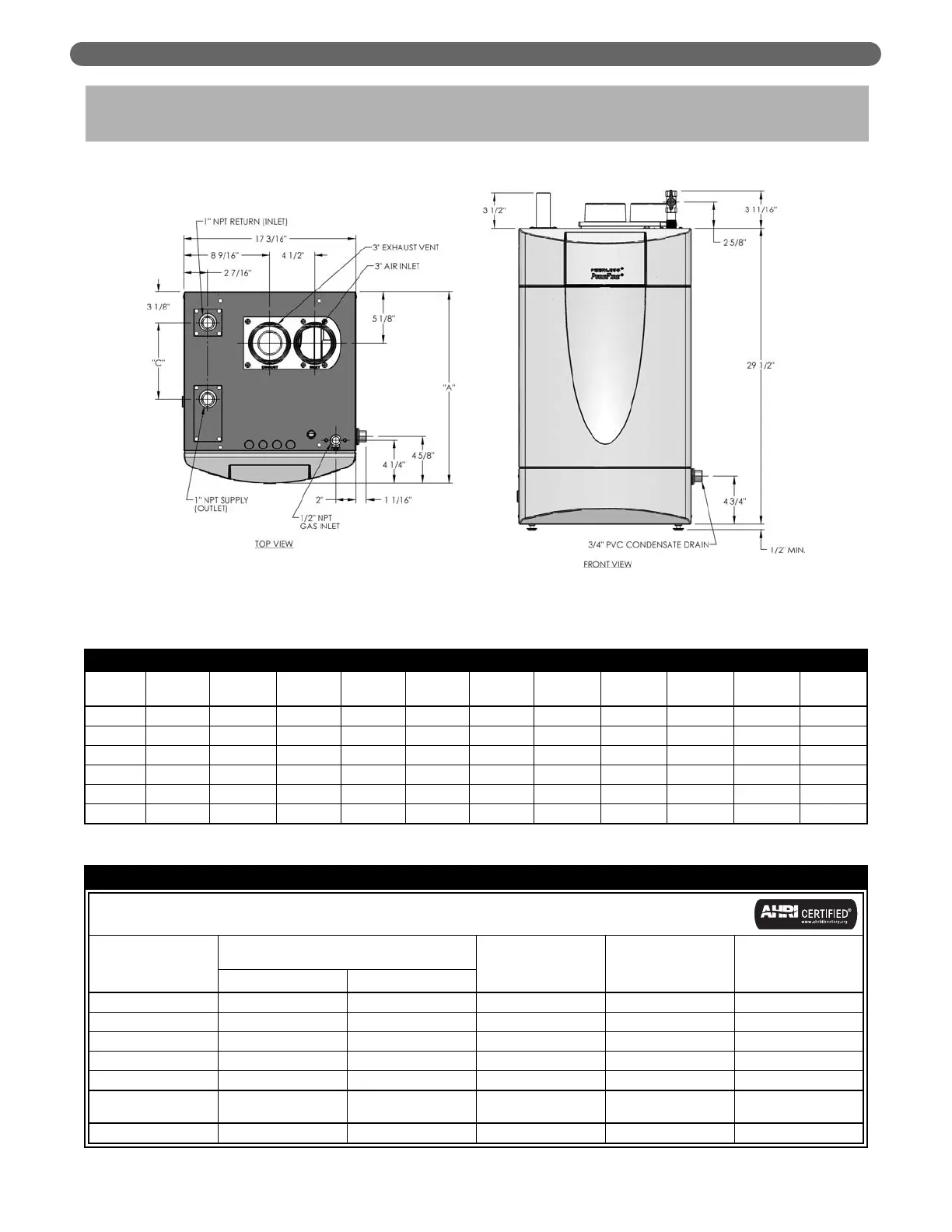

Figure 12.1: Dimensional Drawing – PF-50, PF-80, PF-110 & PF-140
Table 12.2: Boiler Ratings
Series Peerless
®
PUREFIRE
®
Boiler
Model
Input
(MBH)
Heating
Capacity
(MBH)
Net Rating
(MBH)
AFUE
(%)
Min. Max.
PF-50 16 50 46 40 91.6
PF-80 20 80 74 64 92.7
PF-110 27.5 110 102 89 93.0
PF-140 35 140 131 114 93.0
PF-210 42 210 193 168 93.3
Gross Output
(MBH)
Net Rating
(MBH)
Thermal Efficiency
(%)
PF-399 80 399 373 324 93.4
SERIES PEERLESS
®
PUREFIRE
®
BOILER RATINGS
