10
7. Attach the Draft Hood to the Flue Collector using
#10 x 1/2" sheet metal screws provided. Refer to
Figure 2.7.
8. Position the Top Jacket Panel so that the flanges
overlap the Side Jacket Panels and the air louvers are
at the front of the boiler. Attach with six #10 x 1/2"
sheet metal screws. See Figure 2.6.
9. Remove the following data plates or labels from the
manila envelope that contains the Instruction
Manual:
- Boiler Rating Label
- Lighting/Operating Instruction Label
- Wiring Diagram Label
Attach labels as shown in Figure 2.8.
10. Insert the top edge of the Front Jacket Panel beneath
front flange of the Top Jacket Panel and against the
top of the Lower Front Panel.

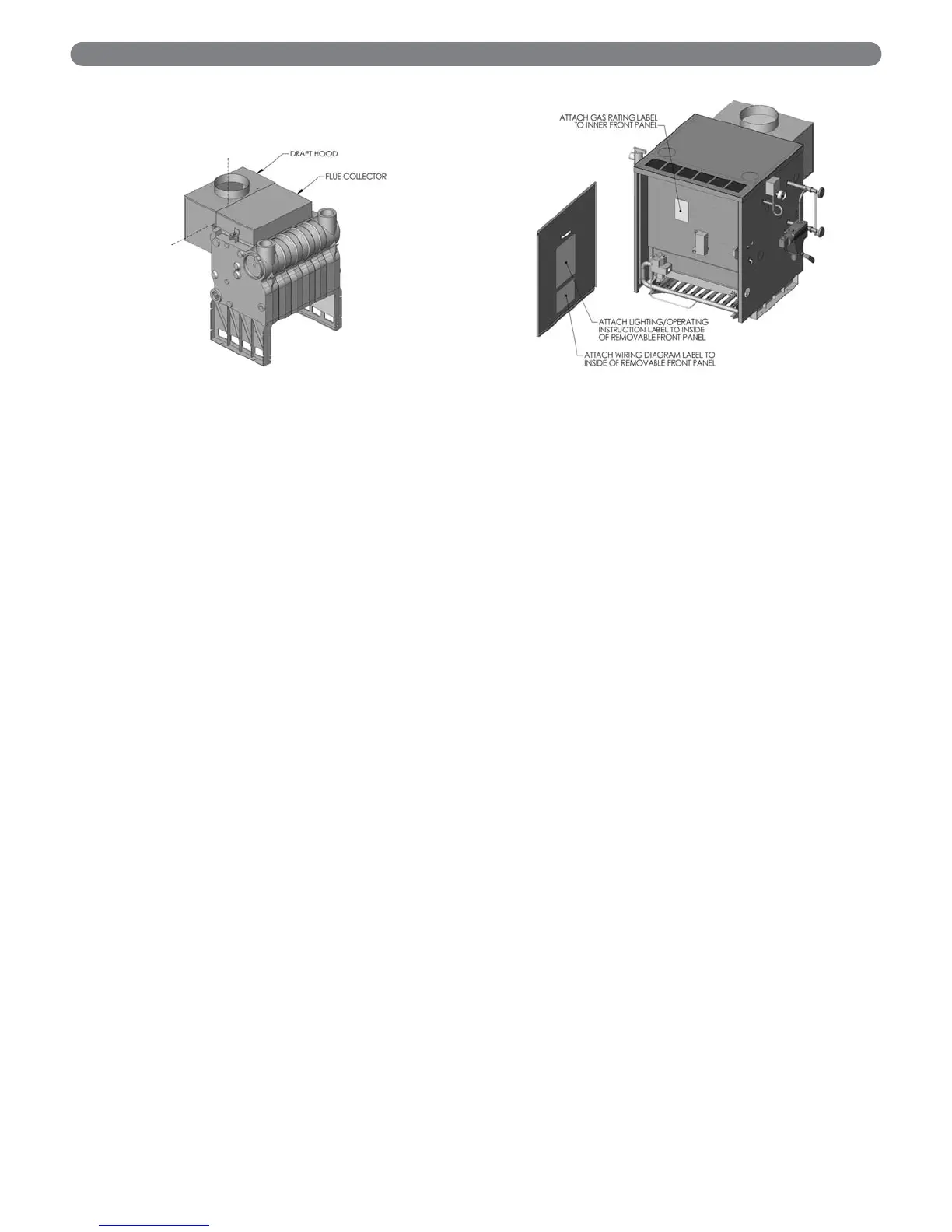

Figure 2.7: Draft Hood Attachment
Figure 2.8: Label & Rating Plate Locations
BOILER PLACEMENT & ASSEMBLY
