9 of 14
ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07

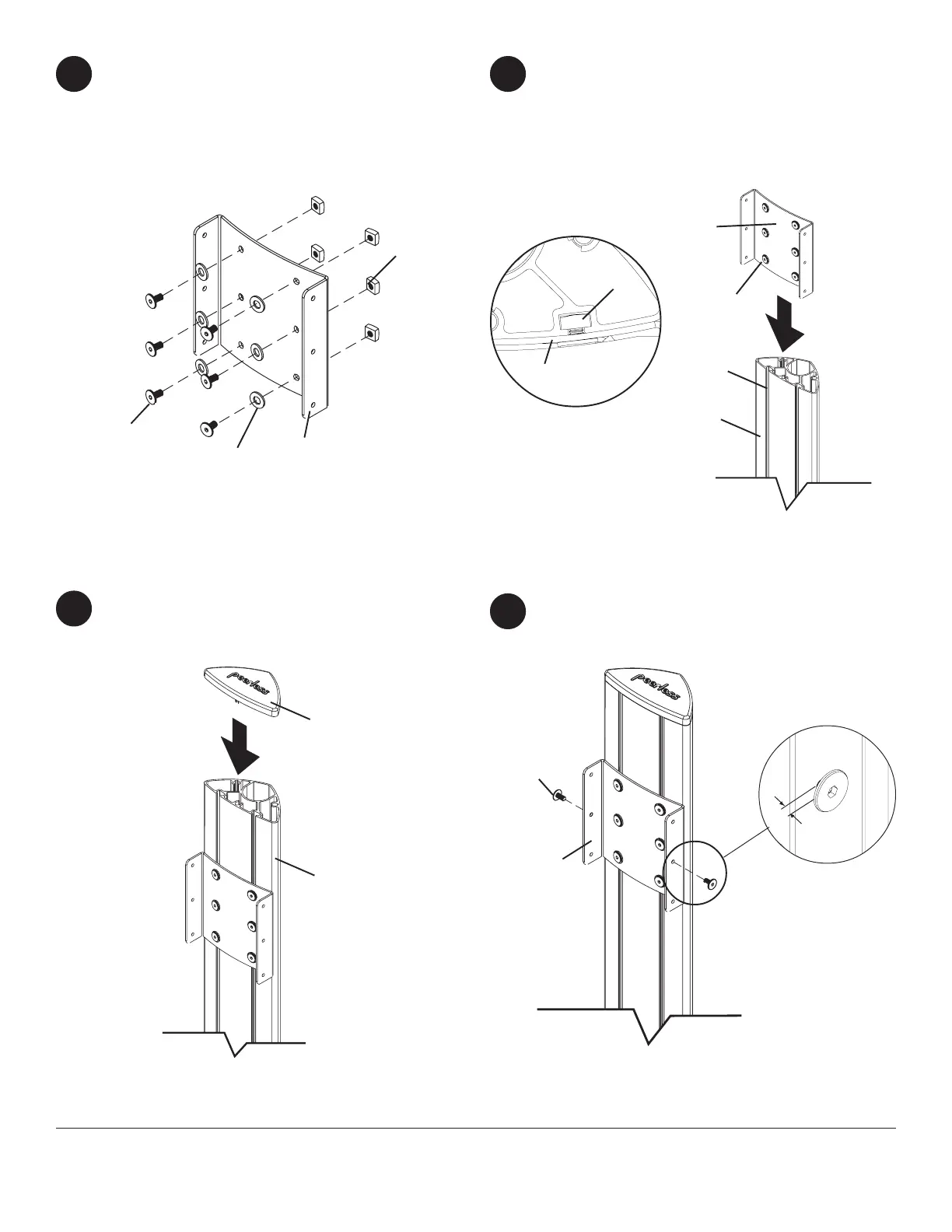

Insert two 1/4-20 x 12 mm screws (I) into screen
mount bracket (A), leaving 3/16" of exposed thread
as shown in figure 11 and detail 3.
H
G
Snap top cover (H) onto upright (G).
11
10
3/16"
fig 11
DETAIL 3
I
A
Loosely attach six 1/4-20 x 12 mm screws (I),
washers (K), and 1/4-20 nuts (J) to screen mount
bracket (A).
8
Slide screen mount bracket (A) onto upright (G) so
that 1/4-20 nuts (J) slide into slots of upright (G) as
shown in figure 9 and detail 2. Slide screen mount
bracket to desired position, level, then tighten 1/4-20
x 12 mm screws (I) using 4 mm allen wrench (N).
9
I
K
A
J
A
G
SLOT
fig 9
I
DETAIL 2
J
G
