5 of 14
ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07
1

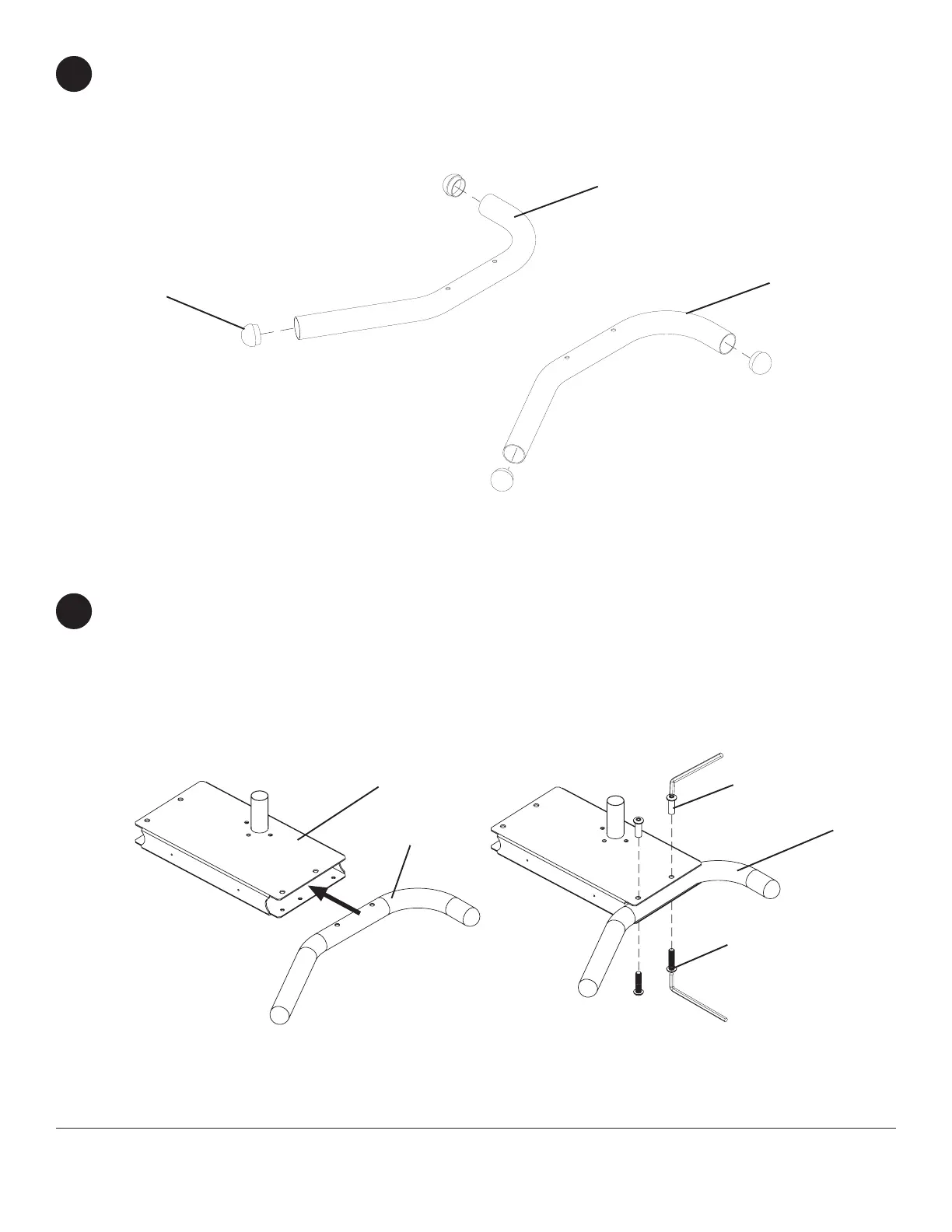

Insert four end caps (Y) into ends of left and right support legs (R & S) as shown.
Guide left leg (R) towards base housing (D) as seen in fig.2.1. Then line up holes in base housing with holes in left leg. Fasten base housing
to left leg using two 3/8-16 x 1.5" screw bolts (W) and two joint connectors (V) tighten using 3/16" allen wrench (Z) and 7/32" allen wrench
(M) as shown in fig.2.2. Repeat for right side with right leg (S).
2
R
W
fig 2.2
V
fig 2.1
D
R
Y
S
R
To Next Page
