Page 26 Rev. 01-16
MANUALE D’USO – USER MANUAL

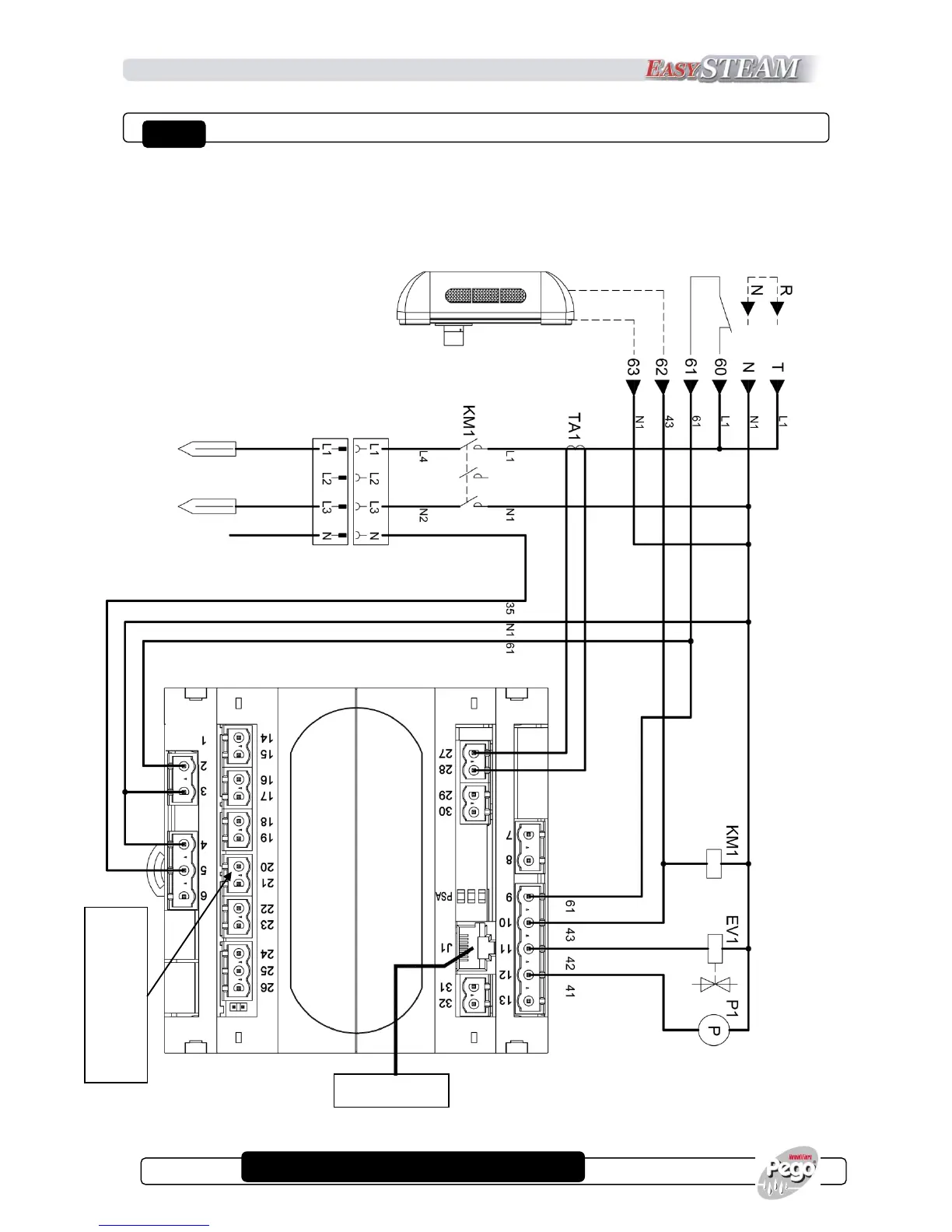

ES AND OEM SERIES ELECTRICAL LAYOUTS
- Electrical layout models:
400ES3MN / 400ES6MN
400ES3MOEMN / 400ES6MOEMN
- 400ES3MOEMCN / 400ES6MOEMCN
Fan
unit
Closed emergency
contact
of
Level
Humidifier
electrodes
Connector
Power
terminal box
Consents and probes
terminal box
LEGEND:
KM1: Contactor
TA1:
Amperometric transf.
P1:
Discharge pump
EV1:
Charge valve
Power supply
230Vac Single
-
phas
e
50/60Hz
CONSOLE
