Rev. 01-16 Page 27
MANUALE D’USO – USER MANUAL

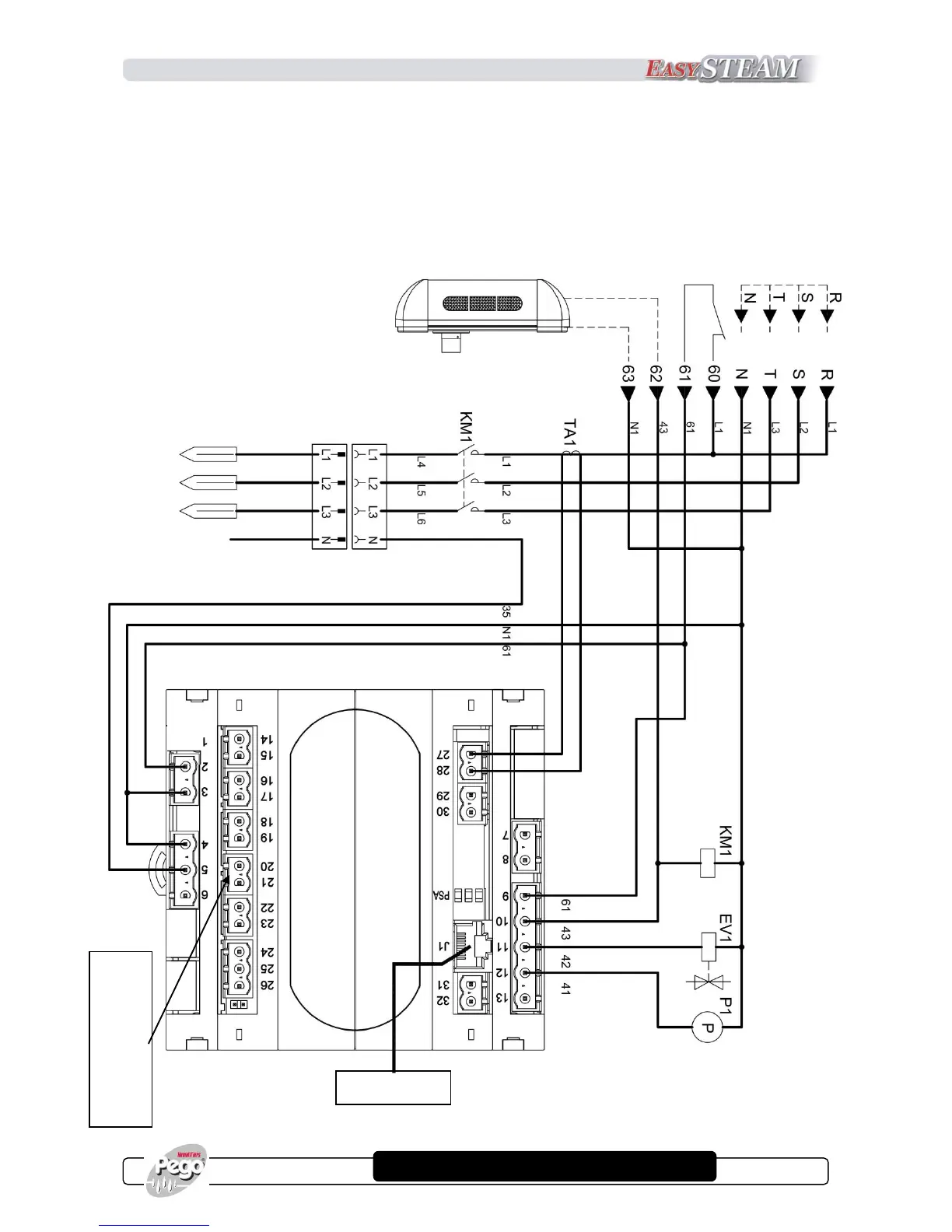

- Electrical layout models:
400ES6N / 400ES12N / 400ES24N
400ES6OEMN / 400ES12OEMN / 400ES24OEMN
- 400ES6OEMCN / 400ES12OEMCN / 400ES24OEMCN
Fan unit
Closed emergency
contact
Level
Humidifier
electrodes
Connector
Power
terminal box
LEGEND:
KM1: Contactor
TA1:
Amperometric transf.
P1:
Discharge pump
EV1:
Charge valve
Power supply
400Vac three
-
phase +
N
50/60Hz
C
onsents and probes
terminal box
CONSOLE
