Page 28 Rev. 01-16
MANUALE D’USO – USER MANUAL

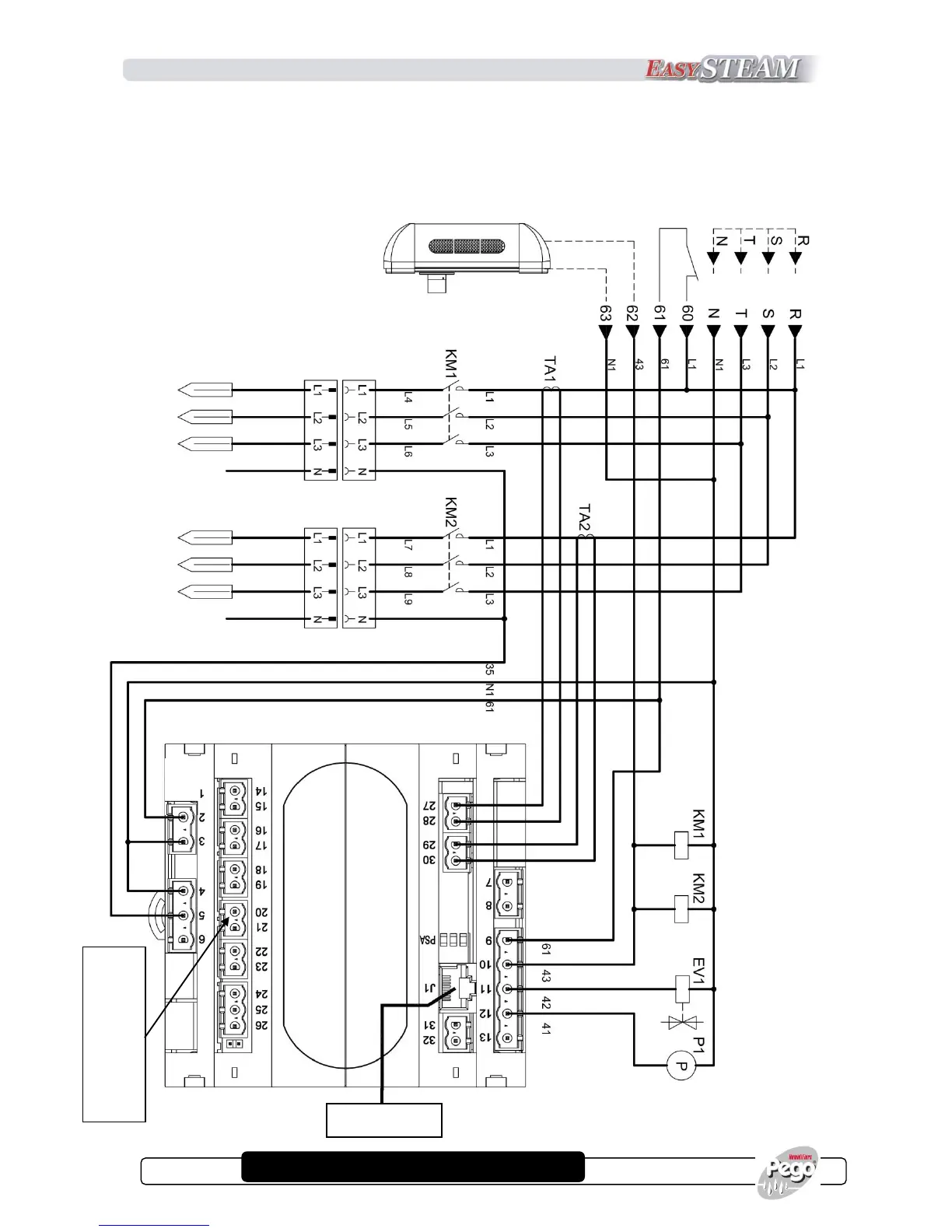

- Electrical layout models:
400ES488N
Power supply
400Vac three
-
phase +
N
50/60Hz
Fan unit
Closed emergency
contact
Lev. 1
Humidifier
electrodes
Connector 1
Power
terminal box
LEGEND:
KM1: Contactor 1
KM2: Contactor 2
TA1:
Amperometric transf. 1
TA2:
Amperometric transf. 2
P1:
Discharg
e pump
EV1:
Charge valve
Connector 2
Lev. 2
Humidifier
electrodes
Consents and probes
terminal box
CONSOLE
