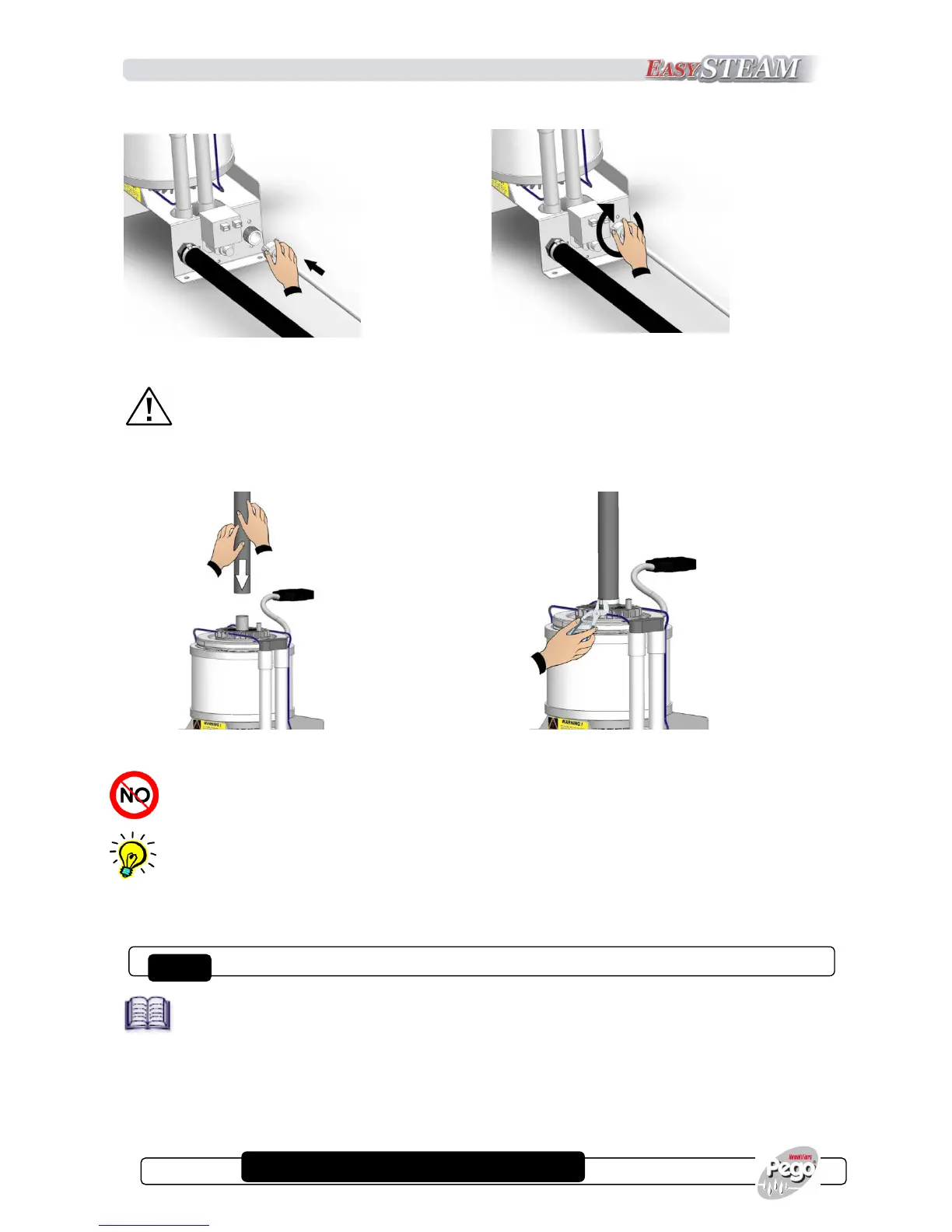

4. Connect the water charge line to GAS ¾ coupling of the electrovalve (fig. 21 and 22).
Fig. 21 Fig. 22
Connect the water charge with a non metal piping, e.g. rubber, PVC, polypropylene,
nylon, etc.
5. Connect the steam tube in the cylinder flange sleeve fixing it with the provided strap (fig. 23 and
24).
Fig. 23 Fig. 24
DO NOT MAKE THROTTLES, SIPHONS OR LENGTHS GREATER THAN
5 METRES!
To correctly connect the steam distribution line, carefully read chapter 8, STEAM
DISTRIBUTION.
OEM SERIES HUMIDIFIER ELECTRIC CONNECTIONS
The OEM series humidifiers are characterised by the splitting in vaporiser unit and
electronics kit; the electric connections are the full responsibility of the customer and are
the same as the ES models described in paragraphs 2.3, 2.4, 2.5, 2.6, 2.7.
In particular, the information for eventual different settings to those by default is in paragraph 2.4.
