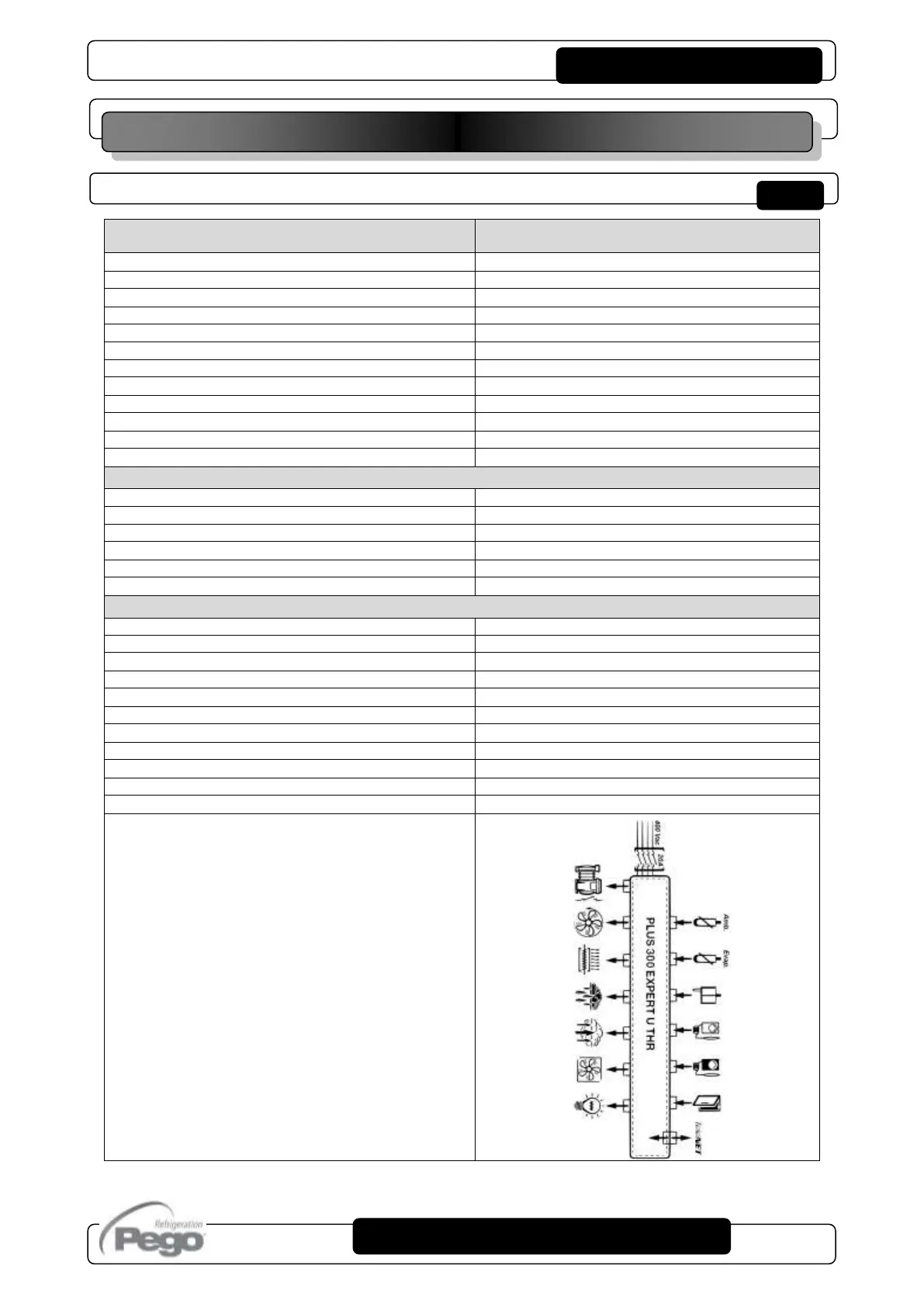

USE AND MAINTENANCE MANUAL
Rev. 01-18
TECHNICAL CHARACTERISTICS
TECHNICAL CHARACTERISTICS
PLUS300 EXPERT U THR
Box dimension
400 x 300 x 135mm
Weight
6 Kg
Protection rating
IP65
Power supply ( 3F + N + T )
400Vac ±10% 50/60Hz
Load type
three-phase
Working temperature
- 5 ÷ +40 °C
Storage temperature
-25 ÷ +70 °C
Relative ambient humidity
form 30% to 90% RH without condensate
Reading range
- 45 ÷ +45 °C / 0 ÷ 100% Rh
Control
PEGO THR integrated
Status indicators
Display LCD
Main switch general protection
4 poles magnetothermic 20A
INPUTS
Ambient probe
NTC 10K 1%
Evaporator probe
NTC 10K 1%
Humidity probe
4÷20mA (0 ÷ 100% Rh)
Door switch
Present
Min. temperature sensor
Present
Max temperature sensor
Present
OUTPUTS
Enable condensing unit
Present
Evaporator fans
800W (1ph)
Defrost
Off-cycle
Hot heaters
7500W (AC1)
Enable humidifiers
Present
Enable dehumidifiers
Present
Air change
Present
Pause
Present
Room light
Present
Alarm relay
Present
Supervision system
TeleNET
CHAP. 3 - Technical characteristics
CHAPTER 3: TECHNICAL CHARACTERISTIC
3.1
Connection diagrams:
