65
EN

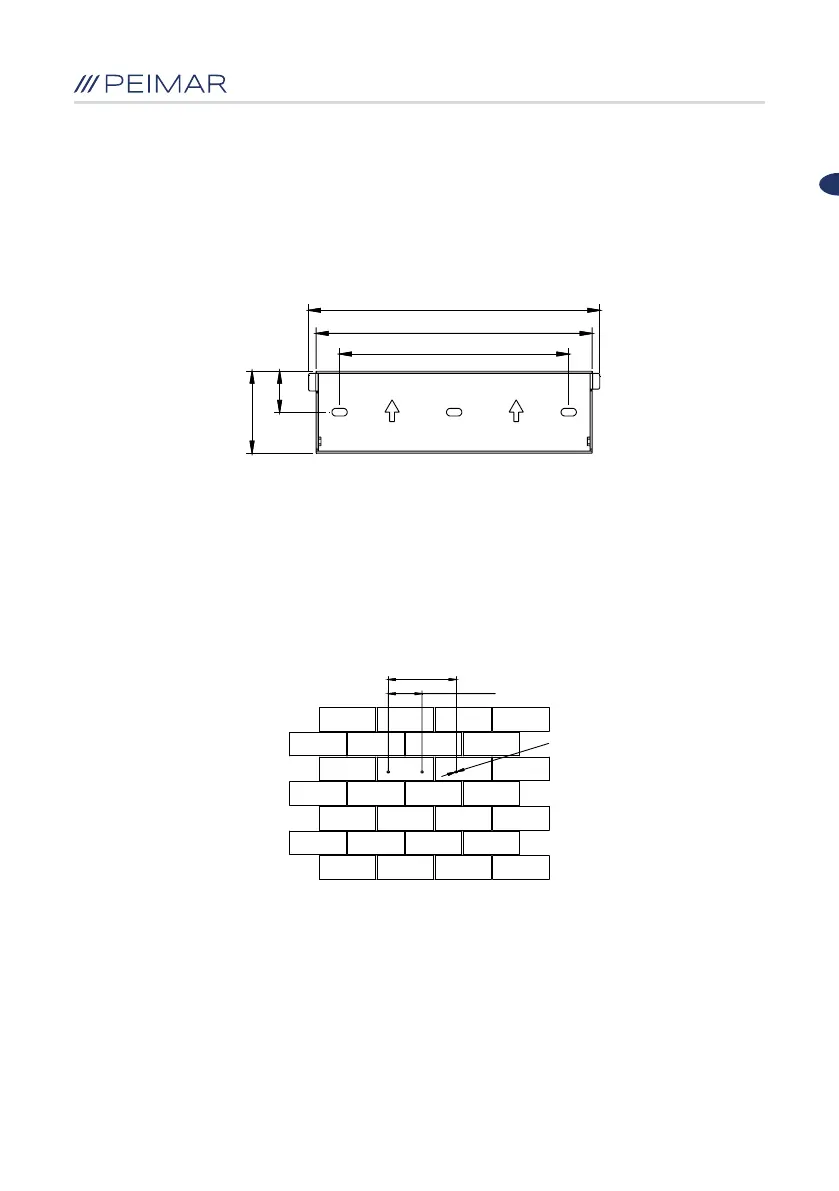

4.4 Mounting procedure
4.4.1 Mark the positions of the drill holes of the rear panel
The mounting position should be marked as shown. (Dimensions in millimeters)
305
289
240
86
43
240
120
ø8
4.4.2 Drill holes and place the expansion tubes
According to the guides, drill 3 holes in the wall in conformity with position
marked and then place expansion tubes in the holes using a rubber mallet.
(Dimensions in millimeters)
