Pelican TS200 - Heat Pump Wiring Guide: 1 Stage Cooling, 1 Stage Heat; 5-Wire Heat Pump Wiring

9

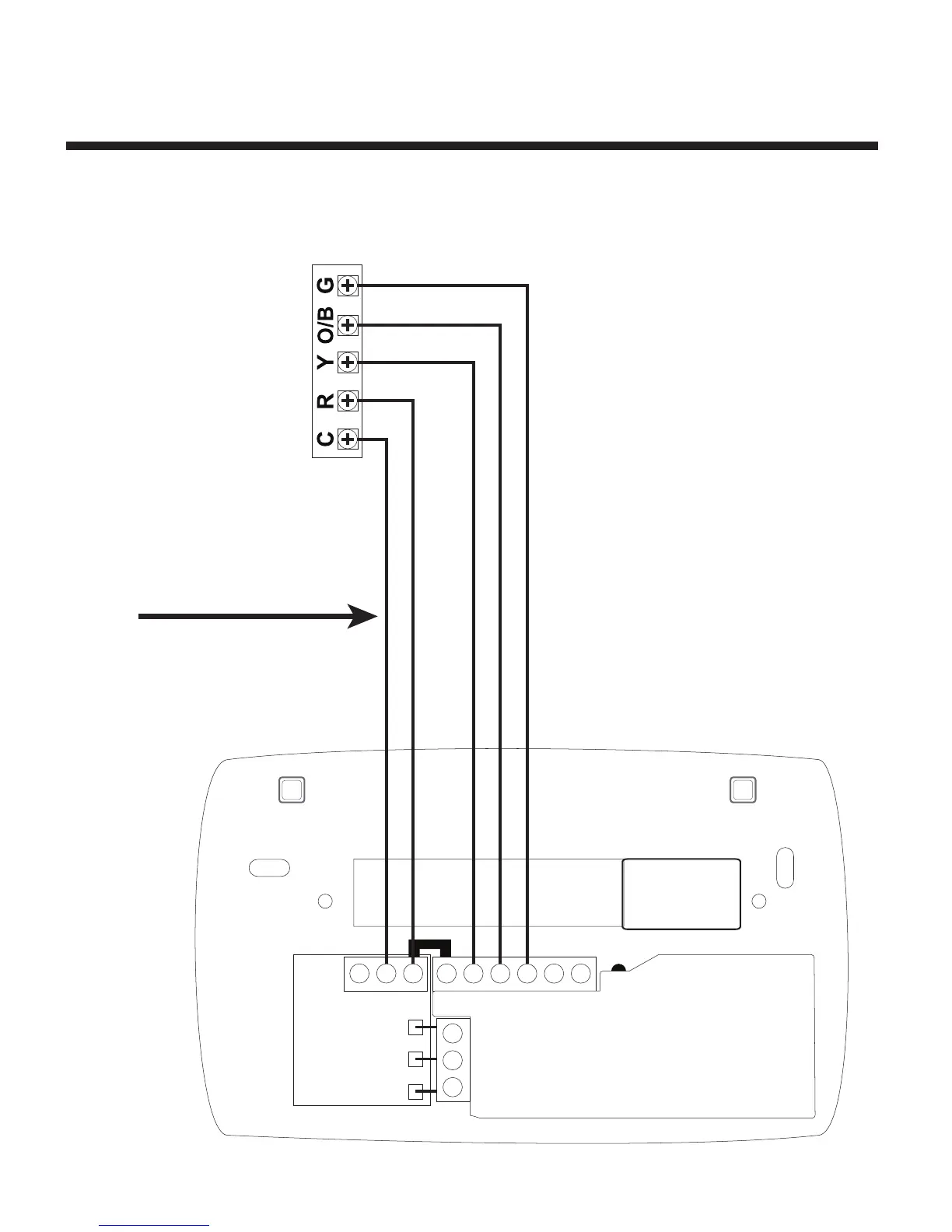

5 Wire, 24VAC Heat Pump 1 stage cooling with
1 stage heat
CD R
(O/B)
Rc Y W G W2 Y2
Fan Circuit
Reversing Valve
Compressor Relay
24 VAC Power
24 VAC Common
Heat Pump Wiring Guide
Use 18 gauge unshielded
cable from thermostat to
the equipment.
