Installing Your Stove
Installing Your Stove

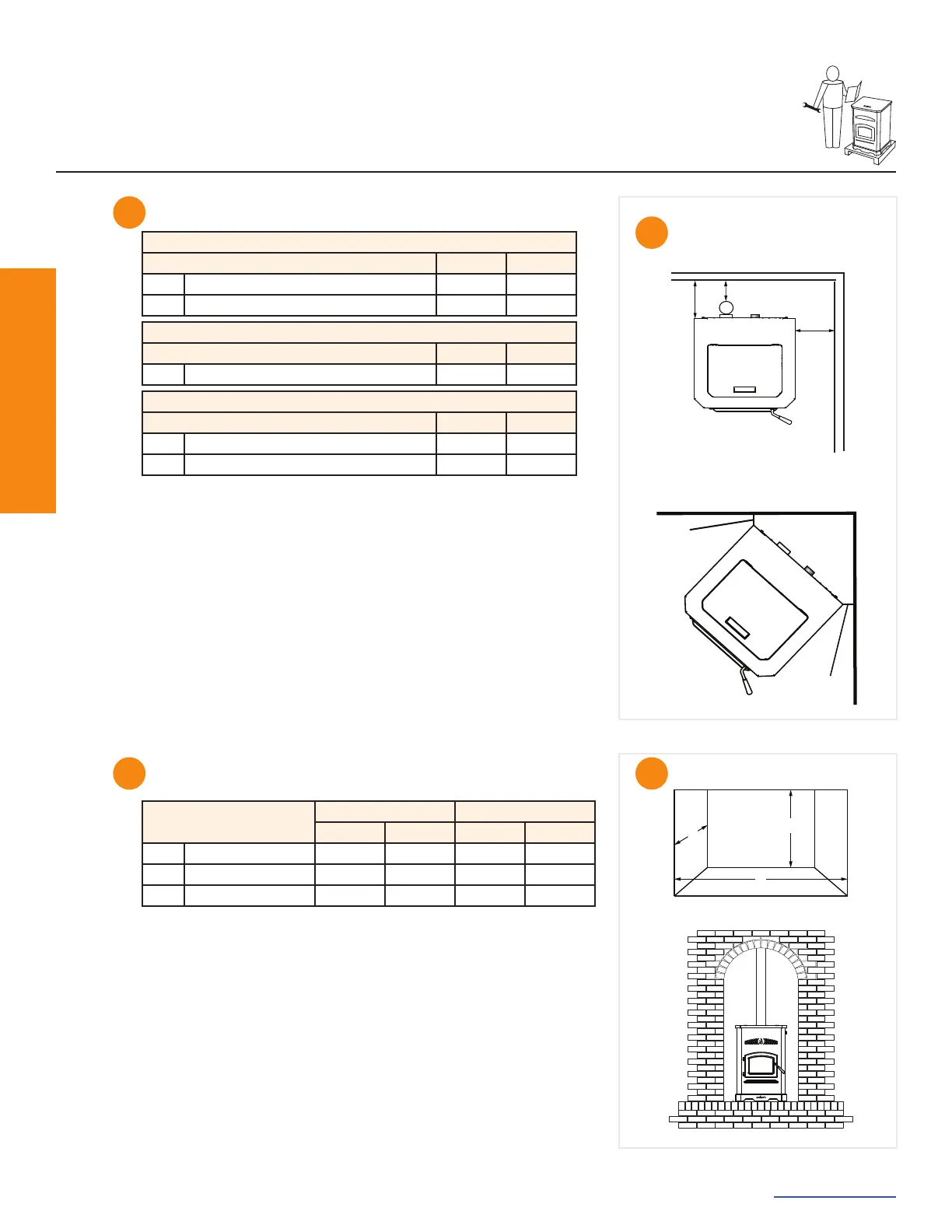

Conrm required clearances to combustibles:
Alcove:
3
4
Vertical Installations (Interior Flue)
Straight back against wall Inches mm
D Back wall to pellet pipe 3 254
E Side wall to Stove 9 229
Horizontal Installations
Straight back against wall Inches mm
G Back wall to Stove 3 76
E Side wall to Stove 9 229
Minimum* Maximum
Inches mm Inches mm
H Height 52 1092 n/a n/a
I Width 42-1/2 1080 n/a n/a
J Depth** n/a n/a 25-3/4 654
Corner Installation
Straight back against wall Inches mm
F Walls to Stove 3 76
3
4
F
F
G
E
D
J
H
I
*All minimums listed are to a combustible surface.
**Front of stove must be ush or extend past the alcove front.
