Compool/EasyTouch Pool and Spa Control System Upgrade Installation and User’s Guide
Compool EasyTouch Upgrade System Overview
• Pumps
Filter, Cleaner, Spa Jet -
1.5 HP 120 VAC
3 HP 277 VAC
20 FLA/120 LRA,120 VAC
17 FLA/102 LRA, 277 VAC
• Pool/Spa Lights
1.5 KW 120 VAC Tungsten
4.8 KW 240 VAC Tungsten
20 AMP, 277 VAC Ballast
• Pool/Spa Valve
Suction and return.
24 VAC valve actuator,
shared equipment only
• Auxiliary Valves
(Qty. 2) A and B
• Heater
Gas or electric
• Relays
20 AMP, 2 HP, 240 VAC
30 AMP, 3 HP, 240 VAC
optional
Optional equipment
• IntelliChlor Salt Chlorine
Generator (SCG)
• IC20 P/N 520554/520556
• IC40 P/N 520555/520556
• CIC60 P/N 521105
(see page 26)
Temperature Sensors
(Water, Air and
Solar optional)
Electric Heater -
Connects to plug J19 on
motherboard

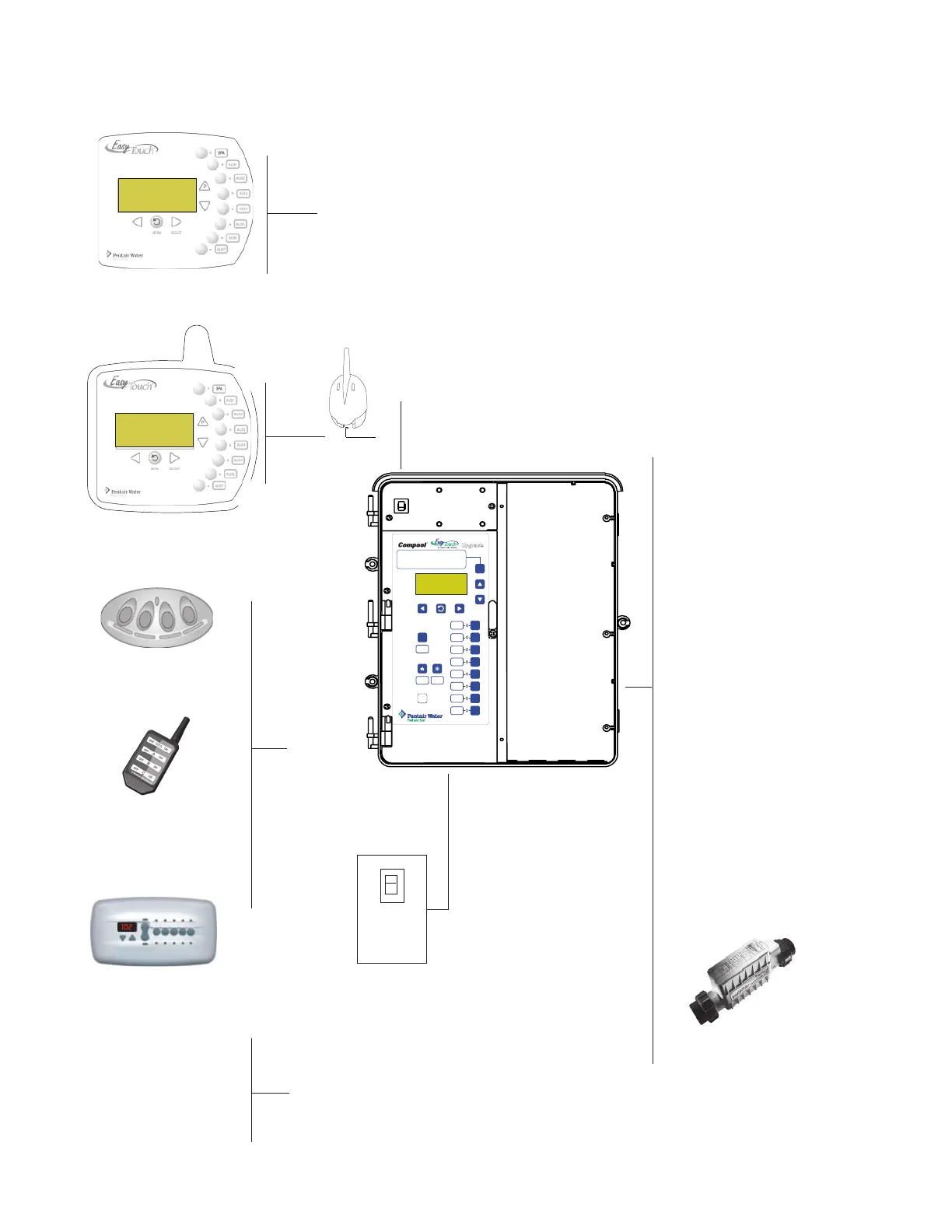

EasyTouch Indoor
Control Panel (P/N 520549)
(Optional)
Low Voltage (DC)
circuit breakers
Compool Power Center
(shown without subpanel)
Connects to
Compool/EasyTouch Upgrade motherboard via
RJ12 Adapter or 4-position screw terminal
iS4 Spa-Side
Remote (P/N 520094)
(Optional)
QuickTouch
®
(QT4)
wireless remote
Controller
(P/N 520148)
(Optional)
Main Power GFCI Panel 240 VAC 50
AMP (40 AMP recommended 8 AWG)
EasyTouch Wireless
Control Panel (8 circuit)
(P/N 520547) (Optional)
iS10 Spa-Side
Remote (P/N 520149)
(Optional)
F
VALVE S
HEATER SOLAR
FILTER
PUMP
MODE
MODES OF OPERATION
Auto:
Indoor control panel and other remote devices operate system.
Service: Service buttons on this panel operate system.
Other remote devices are disabled.
Time Out: Service buttons on this panel operate equipment for
three hours, then settings return to Auto mode.
V
Pool
Spa
Fill (Spillway)
Drain
1
2
3
4
5
6
7
MENU SELECT
Reset
Upgrade
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
AUTO HEATER
SPA 95 F / 100 F
AIR 70 F
MON 09:30 AM
