Lista de piezas de repuesto – serie CT45 - altura mediana
Clave. Descripción Cant. CT45-33 CT45-50 / C T45-3-50 CT45-75 / CT45-3-75
CT45-100 / CT45-3-100
1*
Motor, 115V, 1ø 1 J218-582A-115-PKG J218-590PKG J218-596PKG
Motor, 115/230V, 1ø 1 J218-582A-115-PKG A100DLL A100ELL
Motor, 230/460V, 3ø 1 AP100DL AP100EL
2† Deflector de agua 1 17351-0009
3 Placa de estancamiento 1 N3-8
4 Empaquetadura, placa de estancamiento 1 N29-26
5† Sello del eje 1 U109-6A
6
Impulsor - 1ø 1 J105-42PHA
J105-42PHA J105-42PJA
J105-42P
Impulsor - 3ø 1 J105-42PPA
6A Tornillo del Impulsor- 3ø 1 C30-21 C30-6SS
7 Unidad de voluta con aro de desgaste 1 C101-122E C101-122
7A Aro de desgaste (sólo) (1) N23-7
8 Tapón de tubería – 1/4” NPT (4) U78-941ZPV
9 Base 1 J104-9F
9A Cojinete del motor 1 C35-5
10
Tornillos prisioneros
(2) 3/8 - 16 x 1 1/4” de largo §
11 (2) 3/8 - 16 x 1 1/2” de largo §
† Incluido en el kit de sello y empaquetadura PP1700.
* Para las reparaciones o el servicio del motor, siempre indique el Número de Modelo del motor y toda otra información que se encuentre en la Placa del Modelo
del Motor.
§ Se deben comprar a nivel local.
2409 0496 SPC
1
2
3
4
5
6
7A
6A
7
8
10
9
9A
8
8

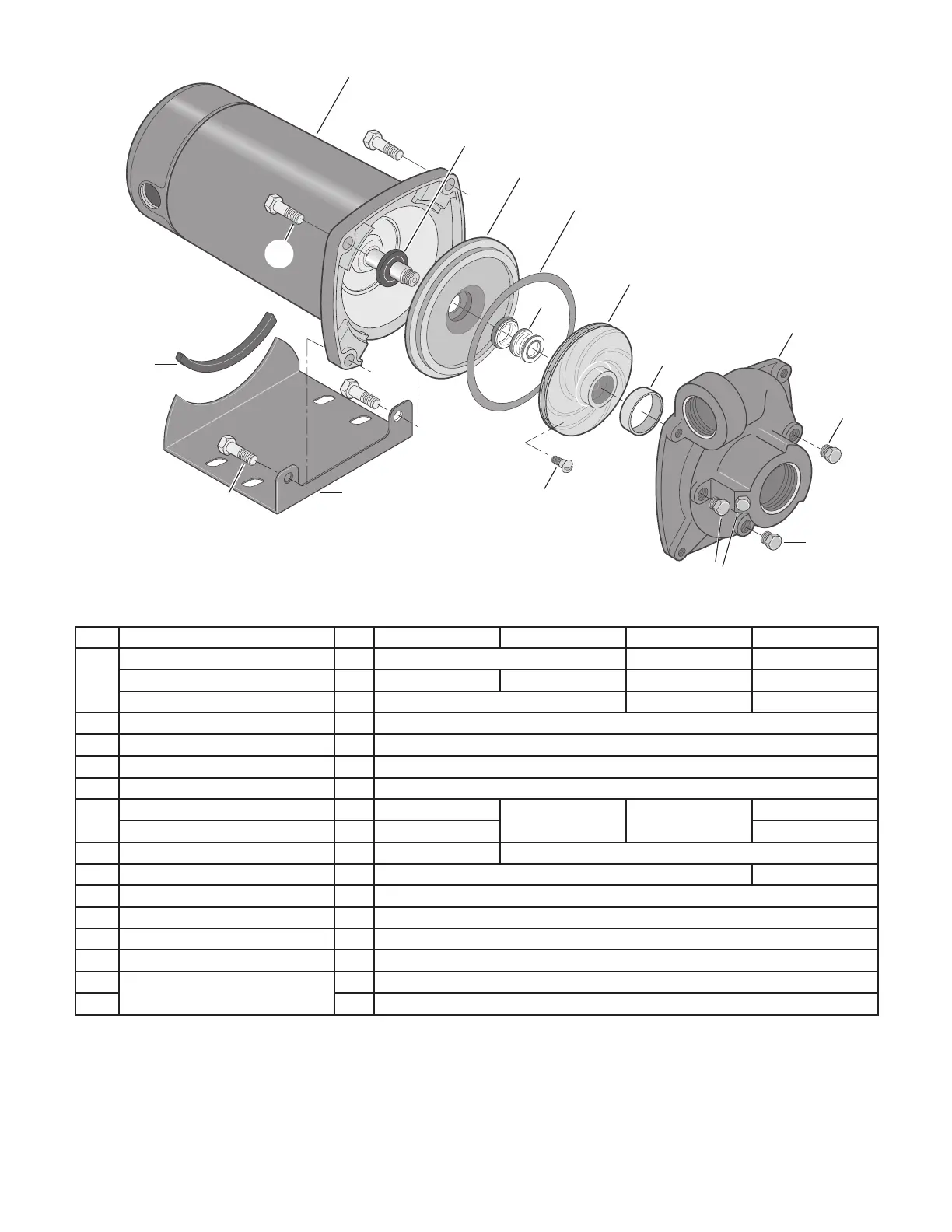

This drawing is for use with
Models using a capscrew configuration.
11
