7
8A
2
3
10
4
7
5A
5
6
9
9
11
11A
8B

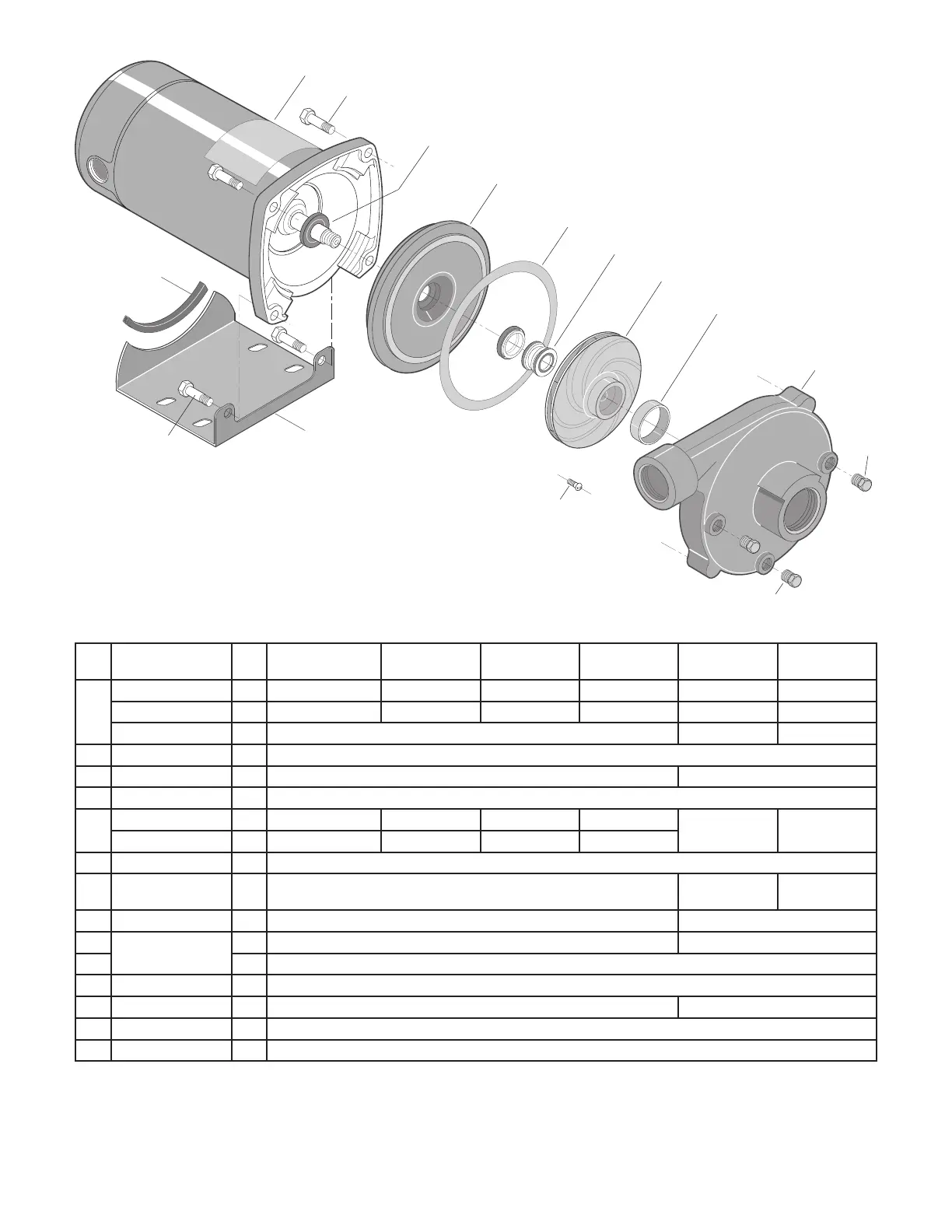

Repair Parts List – CT35 Series - High Head
Item Description Qty.
CT35-50
CT35-3-50
CT35-75
CT35-3-75
CT35-100
CT35-3-100
CT35-150
CT35-3-150
CT35-200
CT35-3-200
CT35-250
CT35-3-250
1*
Motor, 115/230V, 1ø 1 J218-582A-115-PKG J218-590PKG J218-596PKG J218-601PKG J218-883APKG J218-628APKG
Motor, 230/460V, 3ø 1 AP100CL AP100DL AP100EL AP100FL A100GSL AE100G5L
Motor, 230V, 1ø 1 – AP100GL AP100G5L
2† Water Slinger 1 17351-0009
3 Seal Plate 1 C3-1042P C3-181
4† Shaft Seal 1 U109-6A
5
Impeller - 1ø 1 C105-92PN C105-92PM C105-92PL C105-92PB
C105-214PCA C105-214PA
Impeller - 3ø 1 C105-92PNA C105-92PMA C105-92PLA C105-92PBA
5A Impeller Screw - 3ø 1 C30-14SS
6
Volute Assembly -
Complete
1 C101-284E C101-264E C101-264EB
7 Wear Ring (1) C23-27 C23-19
8A
Capscrew
(2) 3/8 - 16 x 1-1/4” Lg. § 3/8 - 16 x 1” Lg. §
8B (2) 3/8 - 16 x 1-1/4” Lg. §
9 Plug - 1/4”NPT (3) U78-941ZPV
10† Gasket - Volute 1 C20-121 C20-122
11 Base 1 J104-9F
11A Motor Pad 1 C35-5
* For repair or service to motors, always give the motor Model Number and any other data found on the Motor Model Plate.
† Included in Seal and Gasket Kit PP1700.
§ Purchase locally.
To Next Page
