9
2410 0496 SPC
2
3
4
5
6
7A
6A
7
8
12
11
12
10
10A
9

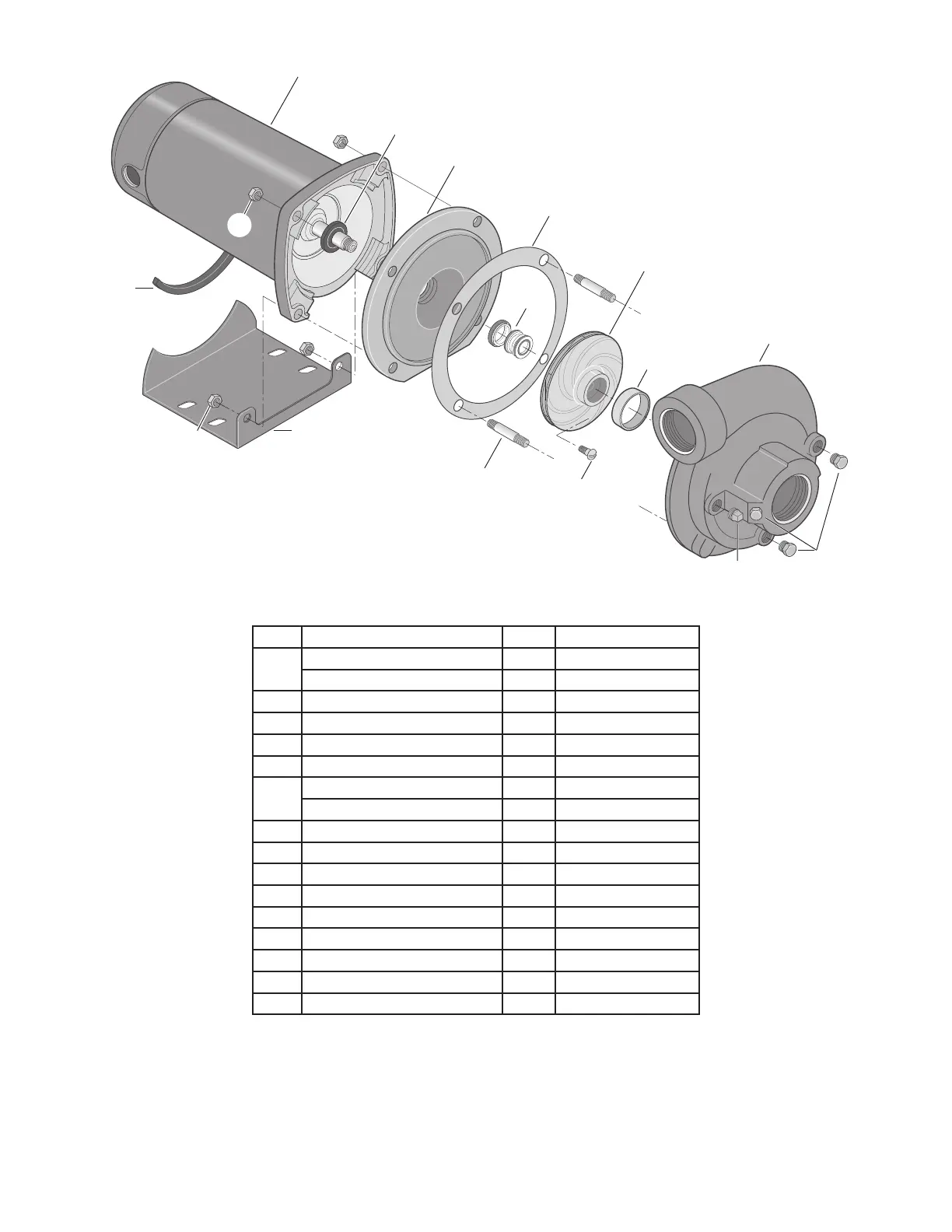

This drawing is for use with
Models using a stud configuration.
Repair Parts List – CT45 Series - Medium Head
Item Description Qty. CT45-150 / CT45-3-150
1
Motor, 115/230V, 1ø 1 J218-601PKG
Motor, 230/460V, 3ø 1 AP100FL
2 Water Slinger 1 17351-0009
3 Seal Plate 1 C3-52
4 Gasket, Seal Plate 1 C20-21
5 Shaft Seal 1 U109-6A
6
Impeller, Single Phase 1 C105-114PC
Impeller, Three Phase 1 C105-114PCA
6A Impeller Screw 1 C30-14SS
7 Volute Assembly with Wear Ring 1 C101-123
7A Wear Ring 1 C23-19
8 Pipe Plug, 1/4” NPT Sq. Hd. 1 U78-57DT
9 Pipe Plug, 1/4” NPT Hex Hd. 3 U78-941ZPV
10 Base with Motor Pad 1 J104-9F
10A Motor Pad 1 C35-5
11 Stud, 3/8 - 16 x 1-13/16” 4 U30-35SS
12 Hex Nut, 3/8 - 16 4 U36-38ZP
† Included in Seal and Gasket Kit PP1700
* For repair or service to motors, always give the motor Model Number and any other data
found on the Motor Model Plate.
