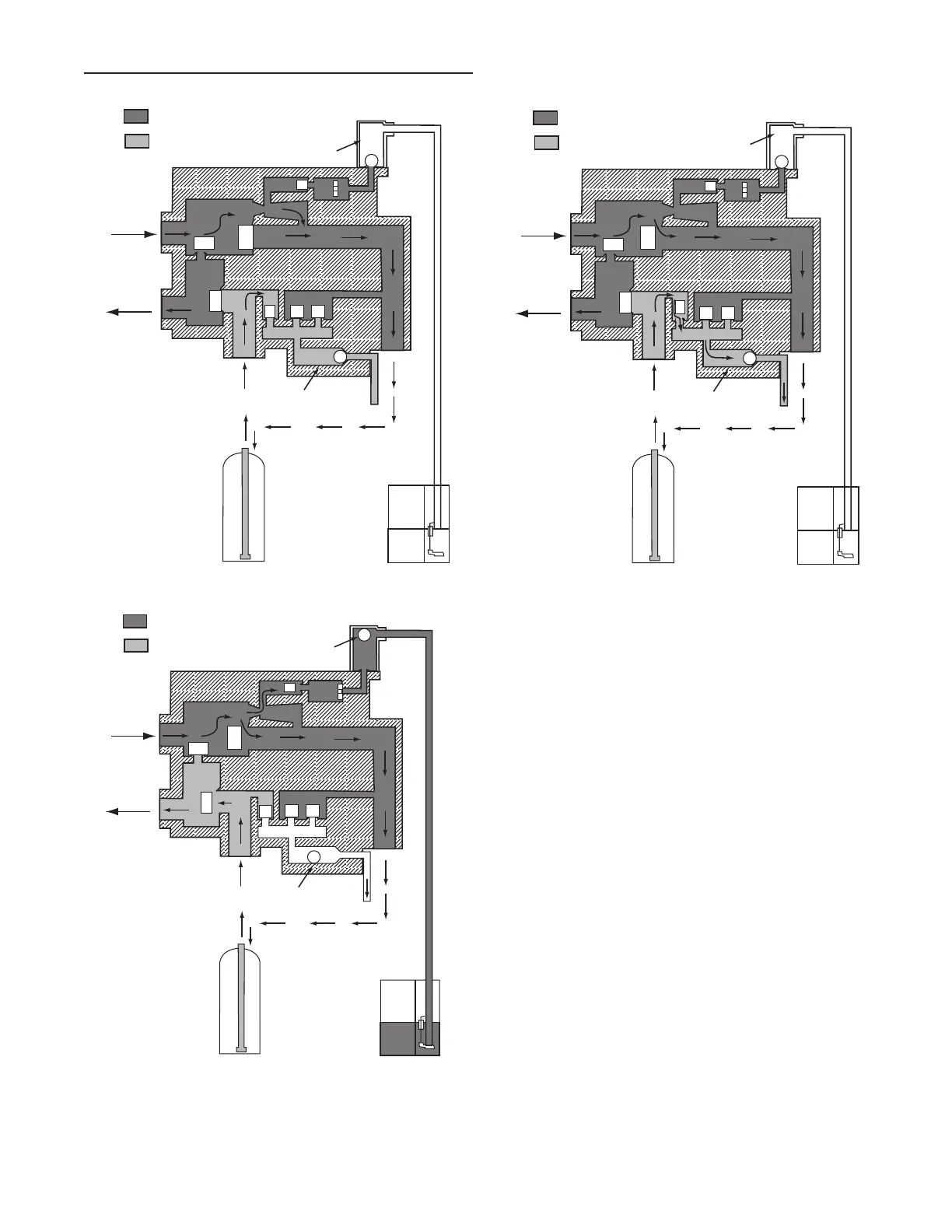

Repressurize Position
Brine Tank
Mineral Tank
Drain
Inlet
Outlet
Hard Water
Soft Water
3
2
4
6
Drain Control
6
Air Check
1
5
Valve No.
1-Closed
2-Closed
3-Closed
4-Open
5-Closed
6-Closed
Brine Refill Position
Brine Tank
Mineral Tank
Drain
Inlet
Outlet
Hard Water
Soft Water
5
3
1
2
4
6
Drain Control
6
Air Check
Valve No.
1-Open
2-Open
3-Open
4-Closed
5-Closed
6-Closed
Fast Rinse Position
Brine Tank
Mineral Tank
Drain
Inlet
Outlet
Hard Water
Soft Water
5
3
2
4
6
Drain Control
6
Air Check
1
Valve No.
1-Closed
2-Open
3-Closed
4-Open
5-Open
6-Closed
FLOW DIAGRAMS CONTINUED
AUTOTROL 742/762 Control 255 & Performa Series Valves (263, 268, 268FA) Service Manual • 41
