Pentair DYNAMO User Manual

P/N 354554 Rev. D 07/09/10
12
13
14
11
10
9
9
7
8
6
5
4
3
2
1
NOTE: Items inside box are
not included on Spa Pump.
ITEM # P/N DESCRIPTION QTY.
1 — MOTOR (SEE NOTE 1) 1
2 354632 BRACKET, DIFFUSER ¾ HP 1
2 354633 BRACKET, DIFFUSER 1, 1½ HP 1
3 354542 SQ. NUT #10-24 s/s 6
4 354634 O-RING 3/16 in. PUMP BRACKET 1
5 354545 SEAL-MECHANICAL 5/8 in. 1
6 353002 IMPELLER ASSY. ½ HP 1
6 354552 IMPELLER ASSY. ¾ HP 1
6 355122 IMPELLER ASSY. 1 HP, 1½ HP 1
7 354630 HOUSING BODY 1
8 354541 SCREW-SLOTTED HEX #10-24, 1-3/8 in. 6
9 154481 PLUG, DRAIN ¼ in. 2
10 273062 O-RING 1
11 354530 POT 1
12 354548 BASKET ASSY. 1
13 354533 O-RING, LID 1
14 354531 LID 1
155233 POWER SUPPLY LABEL, 3' STANDARD CORD 1
155238 POWER SUPPLY LABEL, 3' TWIST LOCK CORD 1
357186 CAUTION LABEL, 230V 1
357187 CAUTION LABEL, 115V 1
357188 CAUTION LABEL, 115V/230V 1
98997900 CAUTION TAG 1
354648 CAUTION LABEL, CSA 1
NOT SHOWN
DYNAMO
®
ENGINEERED PLASTIC
POOL / SPA / HOT TUB PUMPS
Sanford, NC (USA) Moorpark, CA (USA)

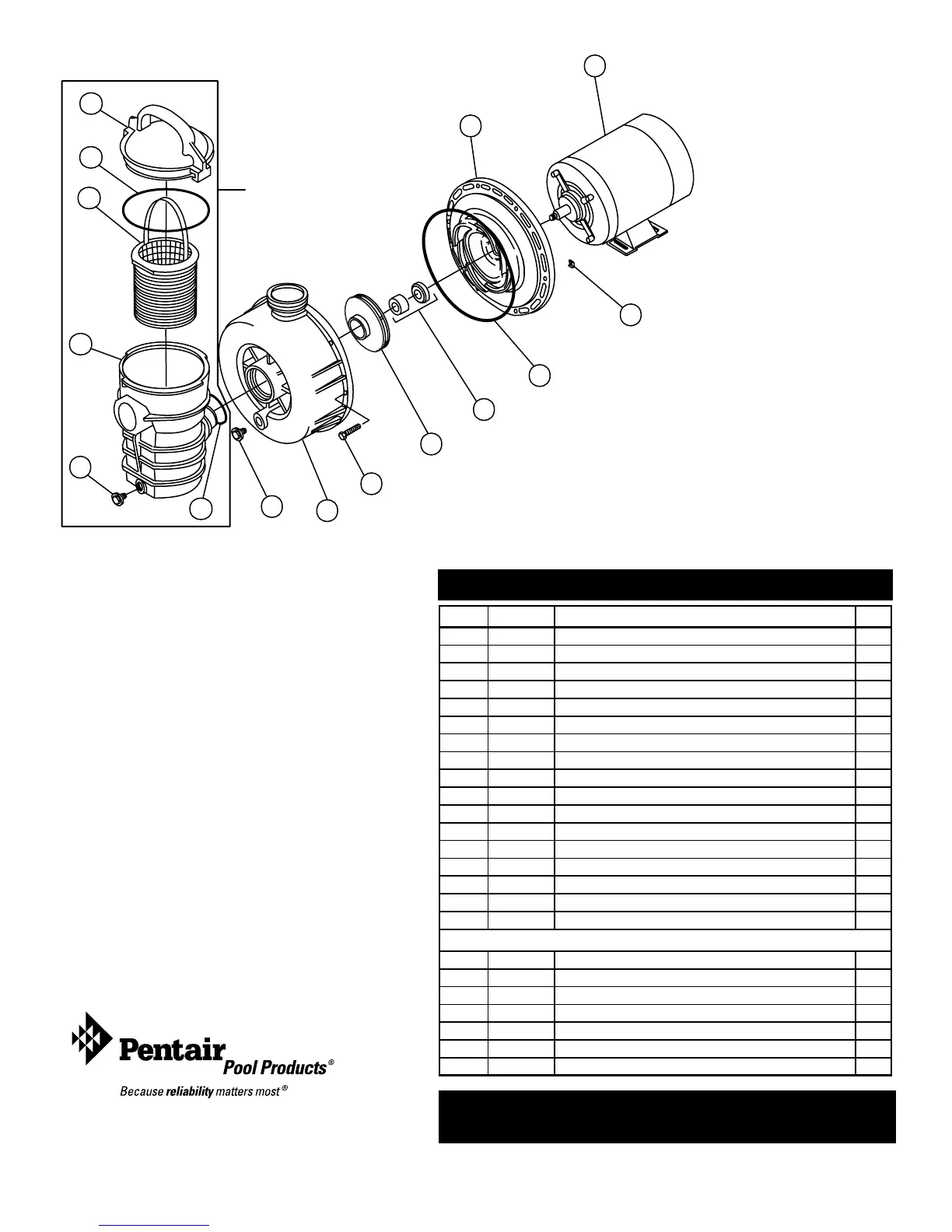

G. REPLACEMENT PARTS
NOTE:
1. For replacement cord or motor,
consult factory customer service.
UL listed pumps are supplied with
a 3' long power supply cord.
CUL listed pumps are supplied
without a power supply cord.
HOW TO ORDER PARTS
WHEN ORDERING PARTS,
GIVE HP, PUMP SERIAL NO.,
MODEL NO., & ITEM NO.
TO YOUR LOCAL
Pentair DEALER – H.P.,
PUMP SERIAL NO. & MOTOR NO.
ARE LOCATED ON PUMP
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
14
