INTELLICHLOR
®
Salt Chlorinator Installation Guide
5

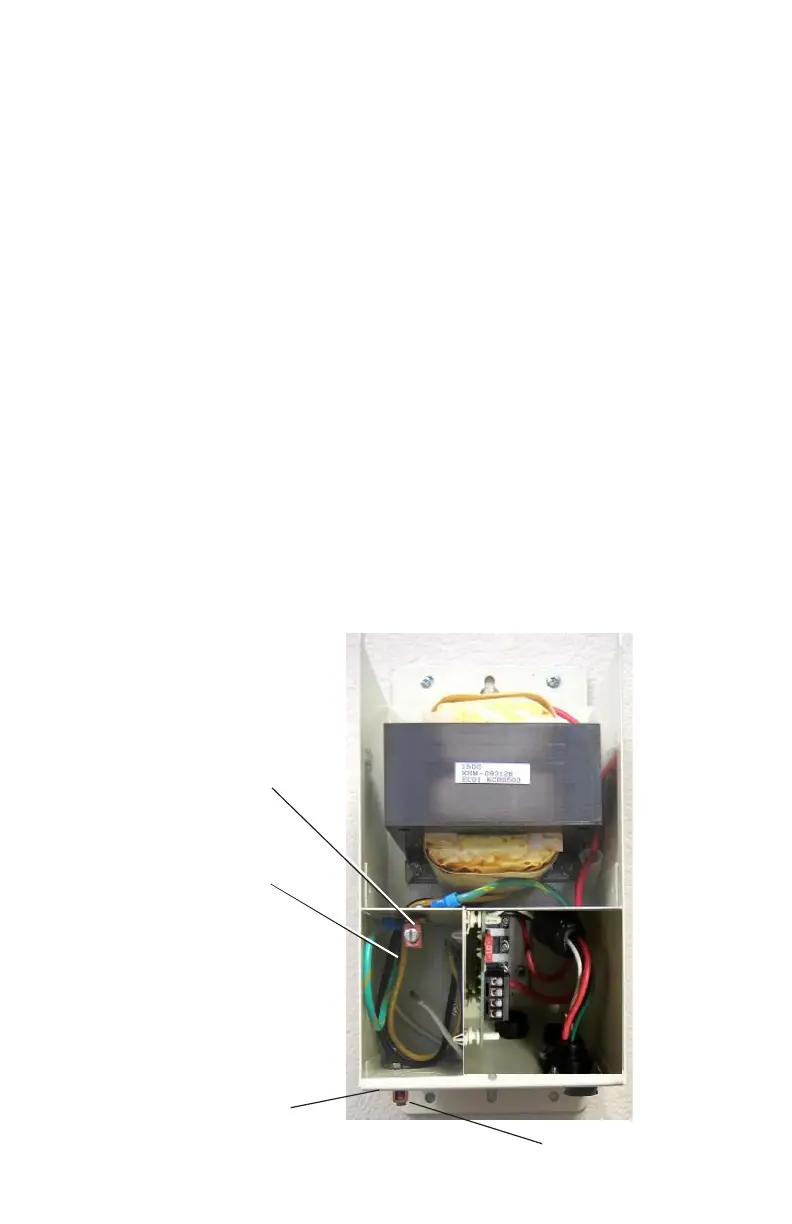

Conduit knockout
for AC power cable
source
Attach incoming power
wires (12-14 AWG 3-wire)
to Power Center
AC power wires
Ground bonding lug
Connect incoming ground
wire to GROUND lug
Connect AC Power to the IntelliChlor
®
Power Center
Note: This Power Center is wired as an “All Pole Disconnect” System
.
Therefore a 3
mm spacing is required for all AC wiring entering the unit.
6. Use 12-14 AWG three conductor insulated wire for the main AC power
connection. Connect the Power Center to pool pump AC power source.
The Power Center should be connected to the pump motor switch or
automatic timer. For system wiring information, see page 6.
7. Attach incoming GROUND wire to the ground lug inside the Power
Center.
8. Earth Bonding (Grounding): Connect the earth wire to the GROUND
BONDING LUG located on the bottom of the Power Center enclosure.
Earth bonding is necessary to ensure personal safety and safety of
equipment.
IMPORTANT: A number 8- guage (8.4 mm)wire is recommended when
connecting the power supply to a Permanent Earth Ground connection
that is acceptable to the local inspection authority. Attach the bonding
point located on bottom of the Power Center to a Common Earth Bonding
Point. Do not use the IntelliChlor as the Common Bonding Point. Each
piece of non-chlorinator pool equipment requiring a ground should be
bonded to the Common Approved Earth Bonding Point. Never ground
pool pump to Power Center.
9. Reinstall the Power Center cover and secure with the cover screw.
10. The Power Center installation is complete. For IntelliChlor operating
information, refer to the
IntelliChlor User’s Guide (P/N 520848).
