INTELLICHLOR

Salt Chlorinator Installation Guide

Installing the Power Center

Install the Power Center at eye level as close to the IntelliChlor pump and filtration as

possible. CAUTION: The Power Center must be installed more than 8 ft (2.44 m)

from the pool edges.

Leave sufficient clearance on all sides of the Power Center. Ensure that the 15 ft

(4.57 m) “Type Z” DC power cord from the Cell assembly pipe location can reach the

Power Center location. The Power Center enclosure can be mounted on the wall up

to 15 ft (4.57 m) away from the cell controller.

Note: For installation instructions about

connecting the cell to Power Center, see the IntelliChlor User’s Guide (P/N 520848).

Mount the Power Center enclosure:

1. Remove the screw securing the Power Center cover and remove the

cover.

2. Mount the Power Center on a flat surface such as a wall or post and mark

each mounting bracket screw hole location. There are two (2) screw holes

and a keyslot for the top and lower bracket.

3. Drill six ¼ in (6.35 mm) holes. Install anchors if necessary and one screw

for each bracket keyslot location.

4. Position each Power Center keyslot (top and lower) slot over the two

mounting screws just installed. Tighten the two (2) screws to secure the

enclosure.

5. Install and tighten four (4) mounting screws two (2) in the top and two in

the lower bracket.

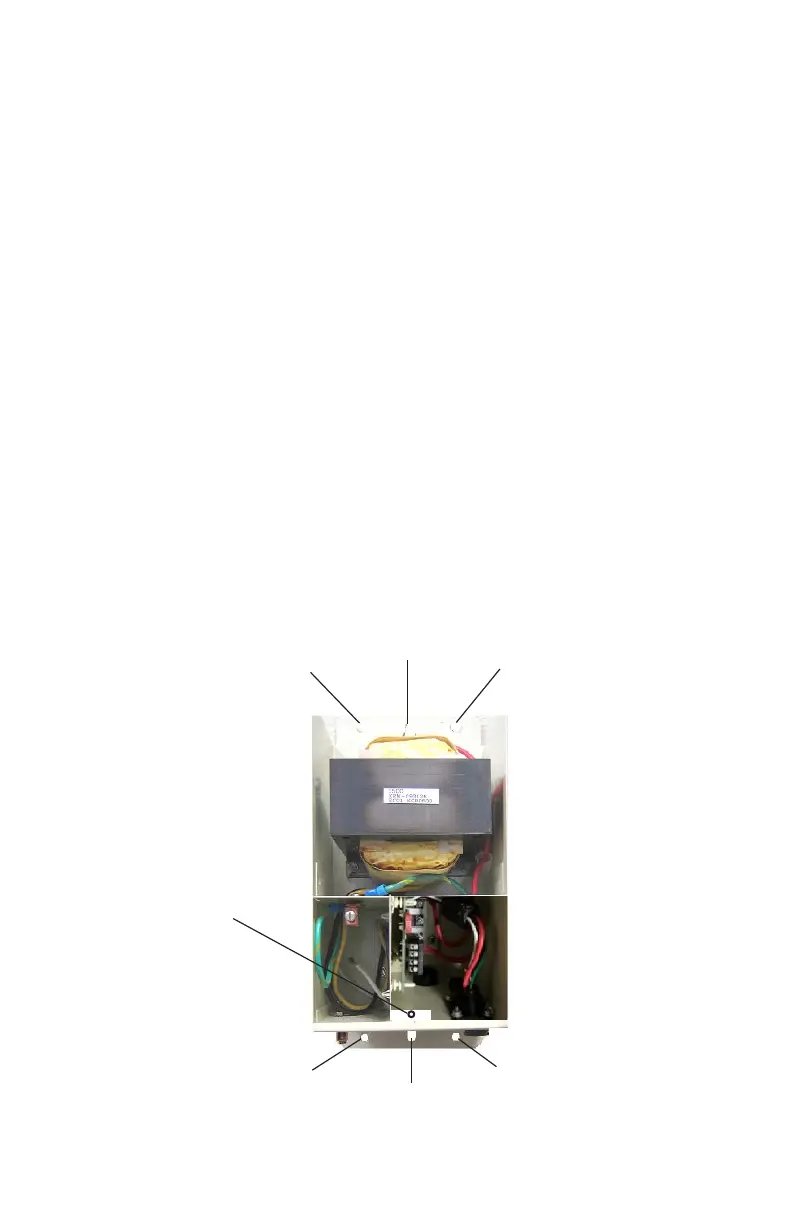

Bracket key slot

Bracket screw hole

Bracket key slot

Cover screw hole

IntelliChlor Power Center (Model PC 100)

(Cover removed)
