INTELLICHLOR
®
Salt Chlorinator Installation Guide
9
Connect AC Power Wires and ORP Controller Wires
1. Provide 208-260VAC power to the POWER CENTER. This power should be on its own
breaker for future servicing. A knock-out opening is provided on the bottom of the power center
for a conduit.
Note: For 110VAC operations, each power center will need to be re-configured. A 110VAC
wiring diagram is provided on the inside of the power center cover.
2. Splice the incoming AC power wires onto the two wires labeled WIRED FOR 220V. Do not
apply AC power yet.
3. Connect the two (2) twisted wires labeled ORP CONTROLLER to the ORP chlorine
controller (AcuTrol). Carefully place the connection inside of power center.
Note:
The Acu-Trol Controller (sold separately), contains an oxidation reduction potential (ORP)
sensor that is placed in the water stream to detect the sanitizing ability of the water and according to a
user-preset set point, calls for chlorine when low, and cancels chlorine when satisfied. This Controller
rovides a dry-contact output that connects to the Power center with ORP input. When the dry-contact
terminals are closed, chlorine is required. When the dry contact terminals are open, no chlorine is
required. The Acu-Trol Controller is not used for a stand-alone-No ORP system.
4. Replace the cover. Secure it using the retaining screw.

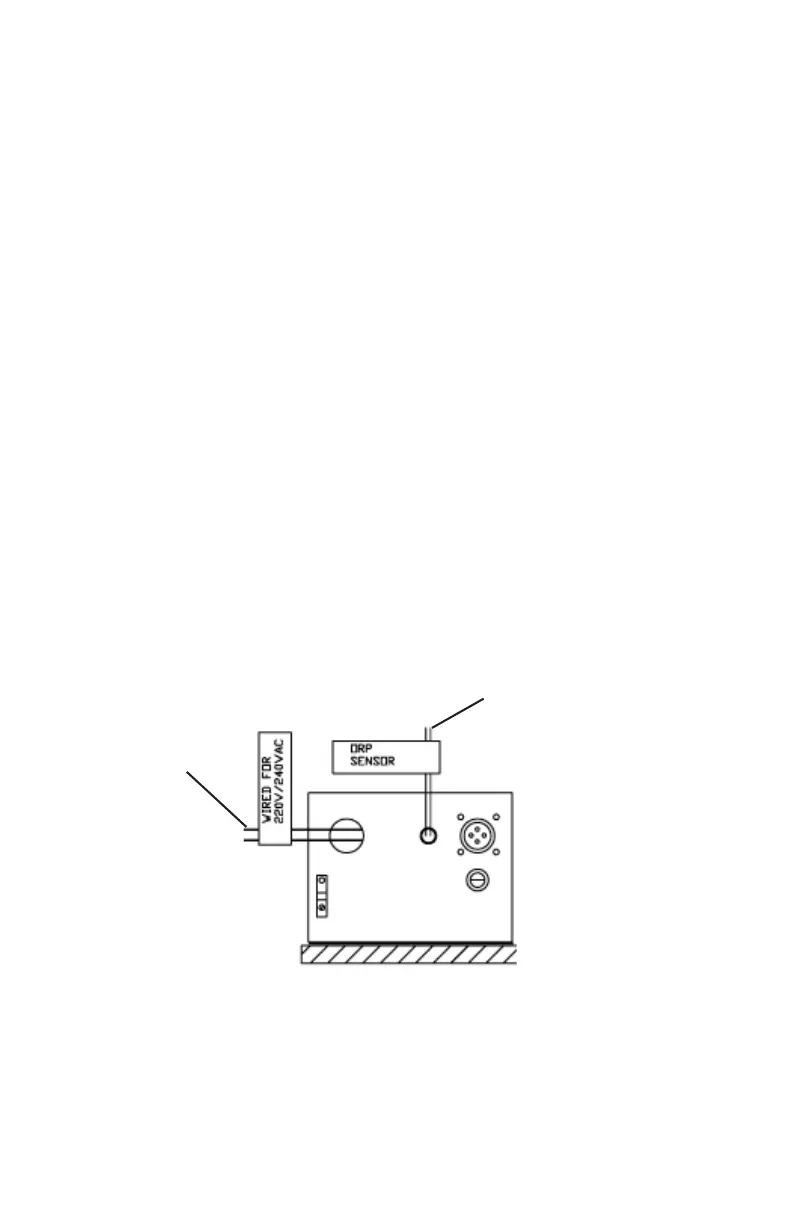

IntellliChlor Power Center with ORP Controller
Connect wires
to AC POWER
SOURCE
Connect wires to
ORP CONTROLLER
Power Center (Bottom View)
