INTELLICHLOR
®
Salt Chlorinator Installation Guide
1
IntelliChlor
®
Salt Chlorinator Power Center Overview
The IntelliChlor Salt Chlorinator system comprises of a Power Center and electrolytic
Cell. The Power Center converts AC electrical current to a low voltage DC current
required by the IntelliChlor Salt Chlorinator electrolytic cell to operate and create
chlorine for the swimming pool and spa. The Power Center is connected with the pool
circulation pump electrical source so that the electrolytic cell only operates when the
pool pump is on. It is recommended that a pool pump timer be used to save on energy
and prolong the service life of your pool pump and IntelliChlor Salt Chlorinator. A timer is
not included as part of the IntelliChlor Salt Chlorinator Power Center kit. The IntelliChlor
Salt Chlorinator Power Center can be connected to an IntelliTouch
®
, EasyTouch
®
or
SunTouch
®
Control System for automation control.
The Power Center enclosure can be mounted vertically on a flat surface such as a wall
or post no more than 15 feet away from the cell controller. The Power Center contains the
transformer, fuse, and connector plug to the IntelliChlor Salt Chlorine cell. 110 VAC and
220 VAC wiring is connected at this box, with 35 VDC output to the cell controller.
A 10 AMP replaceable fuse is mounted on the electronic circuit board for additional
protection. There are no other controls or lights on the outside of the Power Center. A
green power LED indicator is mounted on the inside main board. When the Power
Center is switched on, the green power LED is lit.

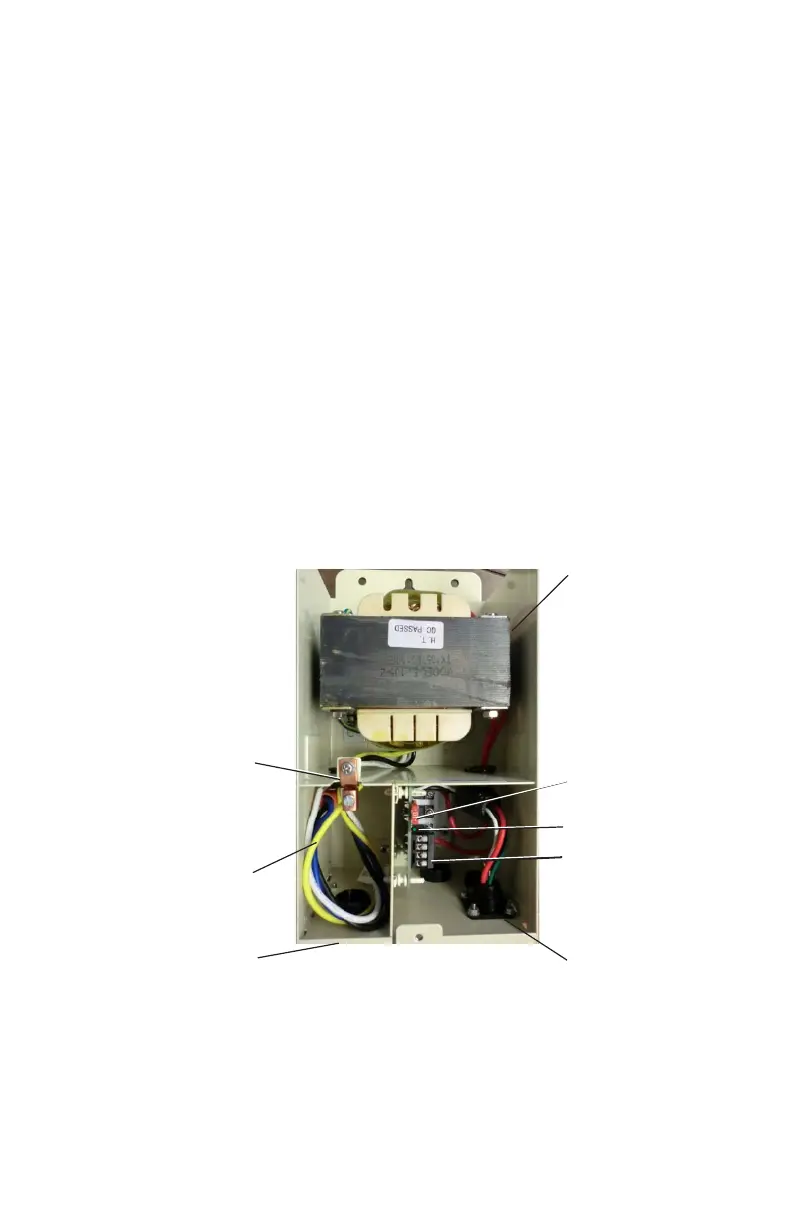

IntelliChlor Salt Chlorinator Power Center
(Model PC 100) (Cover removed)
Cell connector
Transformer
Screw terminal
(RS-485) (connect
to EasyTouch and
IntelliTouch Control
Systems
Attach incoming AC wire
to Power Center AC
power wires
(blue and brown)
Lug (Ground bonding)
(not shown)
Internal
Ground lug
10 AMP
replaceable fuse
Power LED (Green)
