4
General Orifice Replacement Procedure
Use this procedure for Orifice Replacement Kit or Gas Conversion Kit, (see Tables 3 and 4 for Parts List).
1. Turn off the electrical supply to the heater; turn off the pump; turn off the manual gas supply valve to the heater.
2. Unbolt and remove the access door panels.
3. Unscrew completely the 3/4" gas line union.
4. Remove the gas orifice and o-ring contained in the
union.
5. Install the o-ring on the new orifice, see
Figure 3. Verify
the correct size of the orifice included in your kit (see
Parts List).
6. Insert the new orifice squarely in the gas line union.
7. Tighten union securely.
8. Replace the access door panels; tighten bolts.
9. Turn on heater. Observe it for smooth ignition and
regular combustion without undue noise or pulsation.
10. Run the heater for at least 10 minutes. After at least
10 minutes of continuous operation, insert a combustion
analyzer probe into the exhaust and measure CO/CO
2
ratios. The maximum allowable CO/CO
2
ratio for
combustion products are listed in Table 2.
IMPORTANT: For Fuel Gas Conversion Kits, apply
the Label from Step 11.
Remove
Orifice
2
.
5
X
Install O-Ring
and new Orifice
then Reconnect
the Gas Line
Union

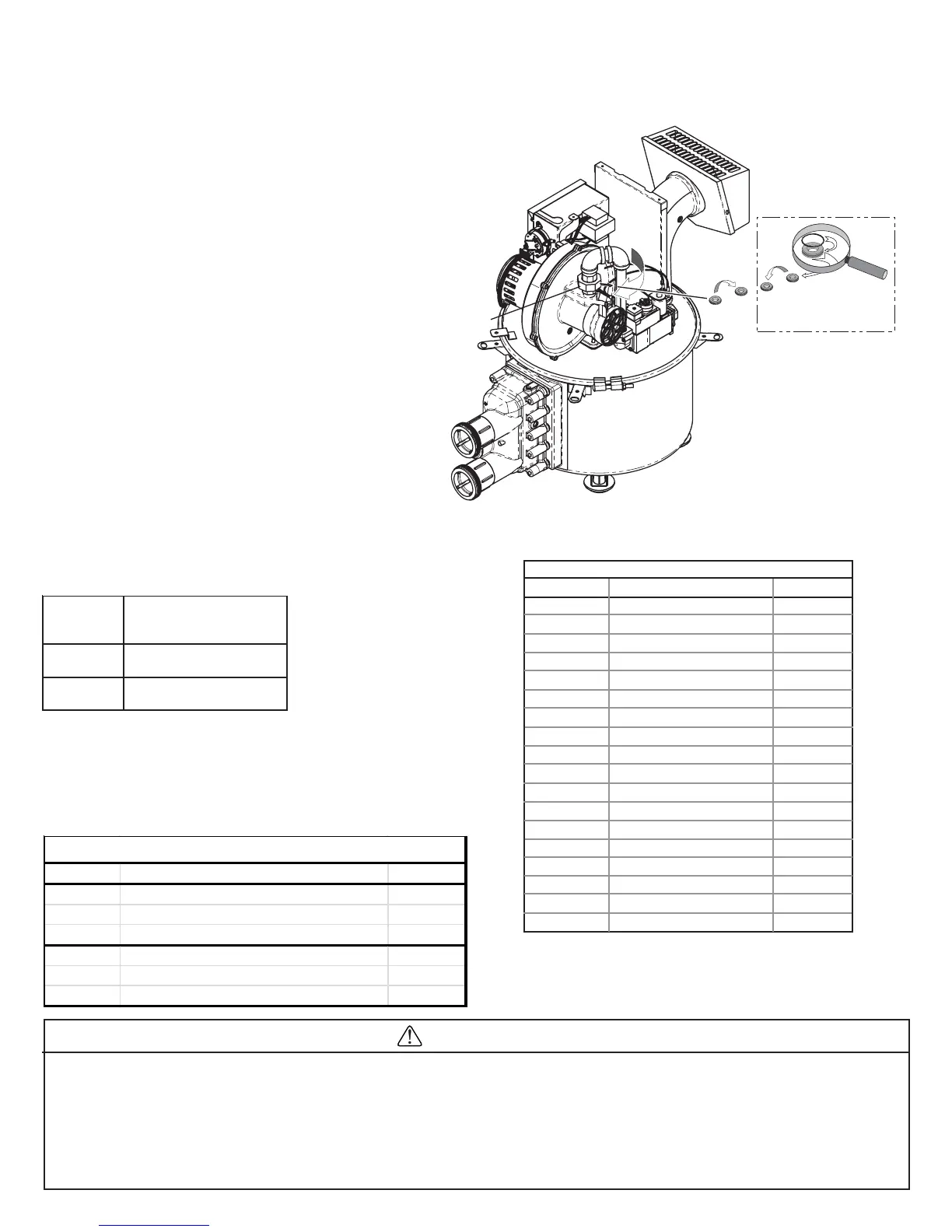

Figure 3: Install new Orifice and
Reconnect Union.
Kit No. Model No. ID Stamp
474142 200
HD
Convert NG to LP LQ
474141 300
HD
Convert NG to LP LN
474140 400
HD
Convert NG to LP LK
474145 200
HD
Convert LP to NG NH
474144 300
HD
Convert LP to NG NE
474143 400
HD
Convert LP to NG NB
Fuel Gas Conversion Kits (NG to LP) & (LP to NG)
TABLE 3. Orifice Kits Parts List
TABLE 4. Gas Conversion Kits Parts List
leuF
elbawollAmumixaM
OC/OC
2
)sisaByrD(
.G.N
20.0
enaporP
20.0
TABLE 2. Flu Gas CO/CO
2
ratios
WARNING
ANY BROKEN SEALS MUST BE RE-SEALED
ANY ADJUSTERS PREVIOUSLY SEALED MUST BE RE-SEALED
FOR BOILERS OPERATING WITH A PRESSURE COUPLE GAS REGULATOR, WHEN DISCONNECTED THE
PRESSURE MUST REMAIN WITHIN THE NORMAL RANGE.
Kit No. Model No. ID Stamp
474136 200HD NG NH
474135 300HD NG NE
474134 400HD NG NB
474139 200HD LP LQ
474138 300HD LP LN
474137 400HD LP LK
474110Z 400HD NG (+5%) NA
474113Z 300HD NG (+5%) ND
474115Z 300HD NG (+5%) NF
474116Z 200HD NG (+5%) NG
474118Z 200HD NG (+5%) NI
475140Z 125HD NG (+5%) NJ
475141Z 125HD NG (+5%) NL
474119Z 400HD LP (+5%) LJ
474122Z 300HD LP (+5%) LM
474125Z 200HD LP (+5%) LP
474142Z 125HD LP (+5%) LS
474143Z 125HD NG (+5%) LU
Gas Orifice Adjustment Kits
