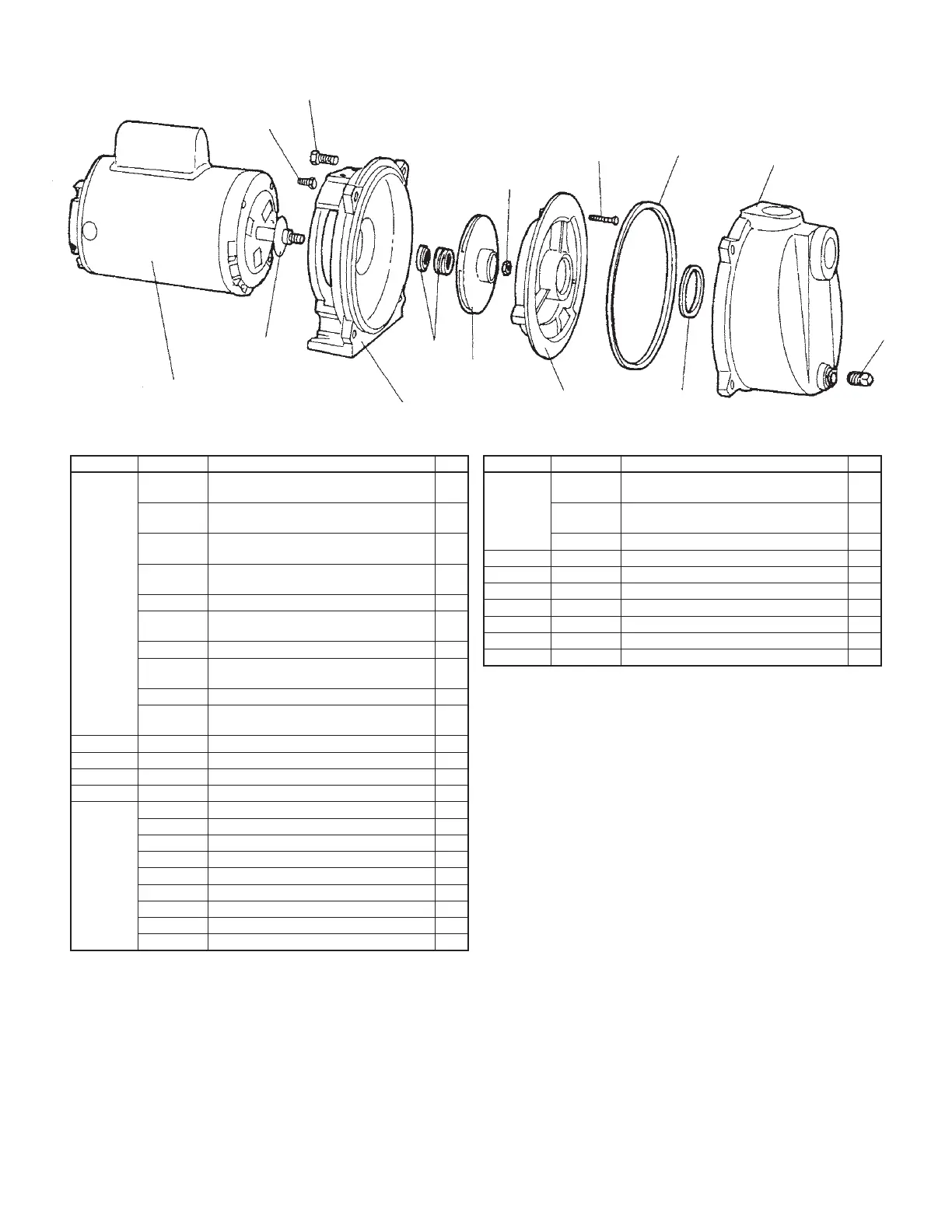

QP Series Centrifugal Pump Parts List
Reference Part No. Description Qty.
1
20934A000
Motor, 3/4 hp, 115/230V, 1 ph
QP-7 – Replaces 20587A
1
20593A000
Motor, 3/4 hp, 200/230/460V, 3 ph
QP7-3 – Replaces 21037A on QP7-03
1
20935A000
Motor, 1 hp, 115/230V, 1 ph
QP-10 – Replaces 20588A
1
20594A000
Motor, 1 hp, 200/230/460V, 3 ph
QP10-3 – Replaces 21038A on QP10-03
1
20589A000 Motor, 1-1/2 hp, 115/230V, 1 ph – QP15 1
20595A000
Motor, 1-1/2 hp, 200/230/460V, 3 ph
QP15-3 – Replaces 21039A on QP15-03
1
20591A000 Motor, 2 hp, 230V, 1 ph – QP20 1
20596A000
Motor, 2 hp, 200/230/460V, 3 ph
QP20-3 – Replaces 21040A on QP20-03
1
20592A000 Motor, 3 hp, 230V, 1 ph – QP30 1
20597A000
Motor, 3 hp, 200/230/460V, 3 ph
QP30-3 – Replaces 21041A on QP30-03
1
2 05059A318 Deflector, Rubber 1
3 20598D000 Bracket 1
4 19101A008
Screw, Cap 3/8-16" x 7/8"
4
5 –
Seal
1
6 20599B000
Impeller – QP7, QP7-3, QP7-03
1
20600B000
Impeller, Brass – QP10, QP10-3, QP10-03
1
20600B003
Impeller, GFN-3 – QP10
1
20600B004
Impeller, GFN-3 – QP10-3, QP10-03
1
20601B000
Impeller, Brass – QP15, QP15-3, QP15-03
1
20601B003
Impeller, Lexan
®
– QP15
1
20601B004
Impeller, GFN-3 – QP15-3, QP15-03
1
20602B000
Impeller – QP20, QP20-3, QP20-03
1
20603B000
Impeller – QP30, QP30-3, QP30-03
1
Reference Part No. Description Qty.
7
20559D000
Diffuser – QP7, QP7-3, QP7-03, QP10,
QP10-3, QP10-03
1
20560D000
Diffuser – QP15, QP15-3, QP15-03,
QP20, QP20-3, QP20-03
1
20561D000
Diffuser – QP30, QP30-3, QP30-03
1
8 19099A014
Screw, Cap 1/4-20 x 1-1/2
3
9 05014A167
Gasket, 8-3/4" OD
1
10 05014A166 Gasket, 2-1/8" OD 1
11 20604D000 Case 1
12 19102A002 Screw, Cap 7/16-14 x 1-1/4" 4
13 05022A009 Plug, 1/4 NPT 1
14 19109A070
Nut, 7/16-20 SST – Used on 3 Phase Units Only
1
4
12
14
8
9
11
13
107
6
5
3
2
1
To Next Page
