76
5 HP QP SERIES

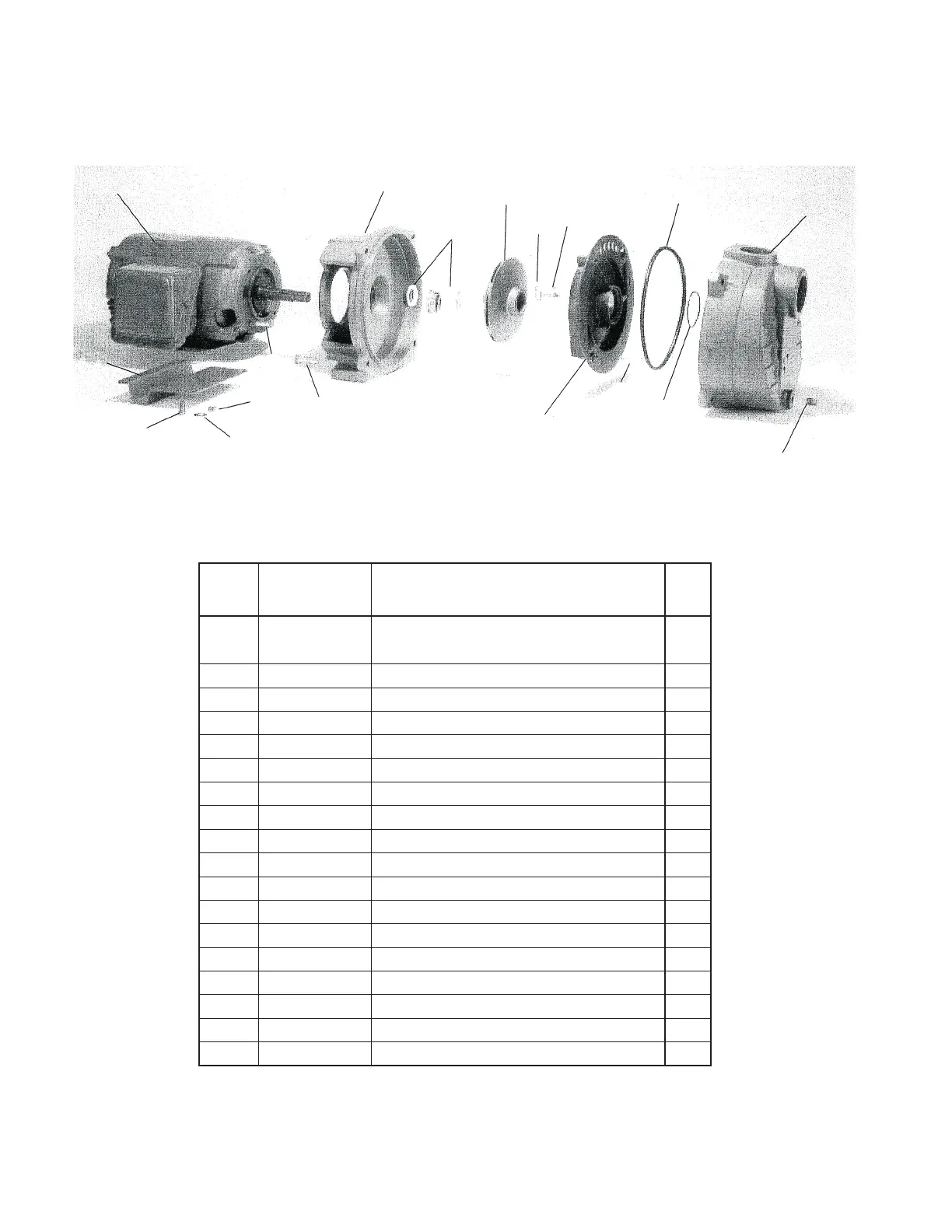

Centrifugal Pump Parts List
Ref.
No.
Part No. Description Qty.
1 26579A000
26579A001
Motor, 5 hp, 230V, 1Phase – QP50B
Motor, 5 hp, 230V, 3 Phase – QP50B3
1
2 26579B000 Bracket, Motor Support 1
3 19101A007 Cap Screw 3/8-16 x 3/4 4
4 05030A004 3/8 Flat Washer 4
5 19109A017 3/8 Hex Nut 4
6 19101A019 Cap Screw 3/8-16 x 1-1/4 4
7 19103A045 Cap Screw 1/2-13 x 1-3/4 4
8 26545E000 Bracket, Pump 1
9 21181A016 Seal 1
10 26546C000 Impeller, Brass 1
11 05876A225 O-ring 1
12 26583A000 Impeller Screw 1
13 19099A022 1/2-20 x 1-3/4 Cap Screw 3
14 05876A138 O-ring 1
15 26544D000 Case 1
16 26547D000 Diffuser 1
17 05876A059 O-ring 1
18 05022A009 Plug, 1/4" NPT 1
1
8
9
10
11
12
14
15
18
17
13
16
7
6
5
4
3
2
Model QP50B - Single Phase
QP50B3 - Three Phase
