PIPING SETS AT ANGLE TO
PUMP AS SHOWN
UPPER GUIDE PLATE
RAIL SUPPORT YOKE
LIFTING EYE
1” PIPE CAP AND
NIPPLE
CONDUIT BUSHING
1
1
/2” NIPPLE
UPPER GUIDE PLATE

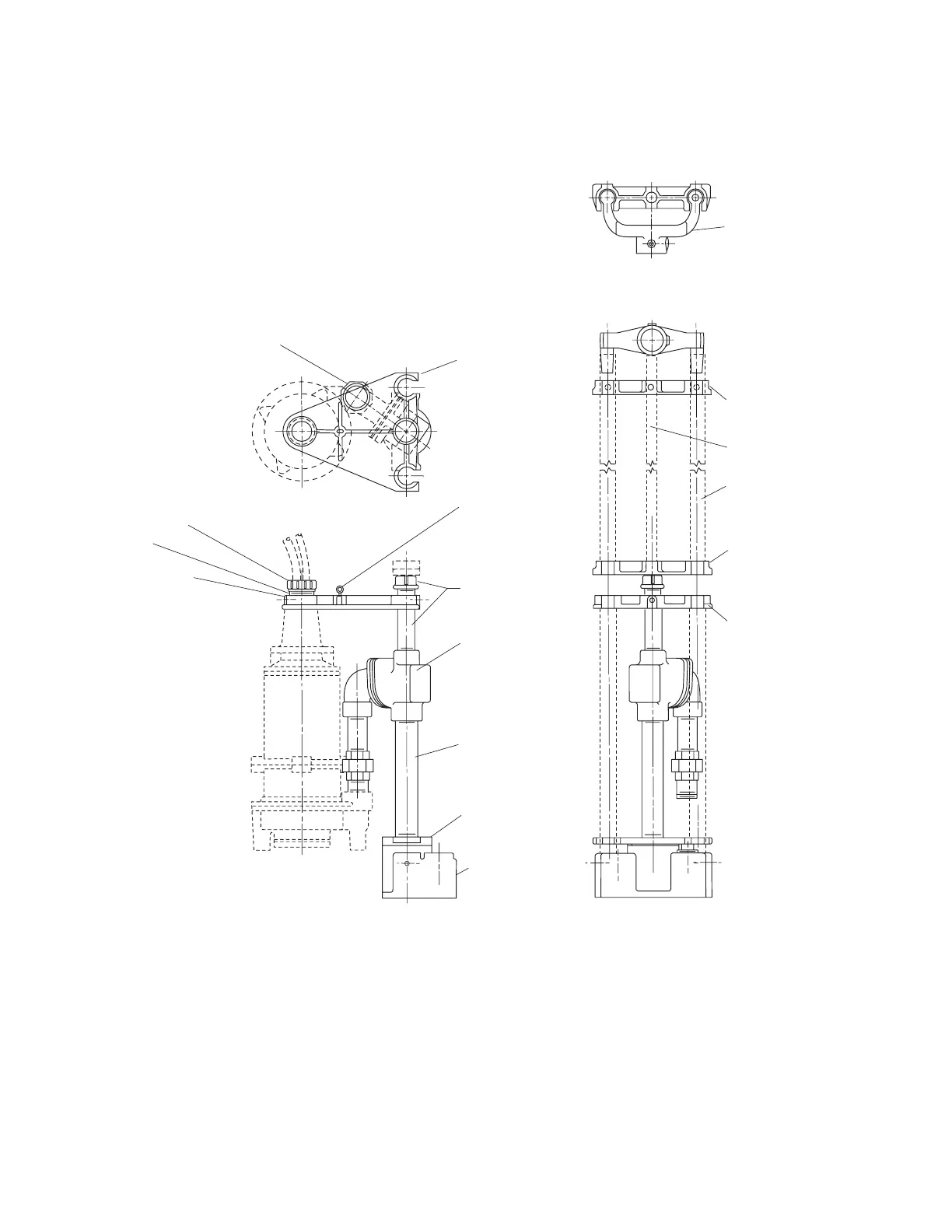

STEPS TO CONNECT PIPING ASS’Y.
AND RAIL GUIDES TO PUMP.
1. SCREW NIPPLE WITH HALF UNION
INTO PUMP AND CONNECT TO
PIPING. JUST TIGHTEN UNION SNUG.
2. SCREW 1
1
/2” NIPPLE INTO
CORD HOUSING CAP.
3. PLACE UPPER GUIDE PLATE
OVER 1
1
/
2
” NIPPLE AND TURN
PLATE UNTIL 1” PIPE OPENING
LINES WITH HOLE IN CHECK
VALVE BODY.
4. INSERT 1” NIPPLE WITH
CAP THROUGH EYE PLATE
AND SCREW INTO VALVE
BODY, TIGHTEN SET SCREWS
IN GUIDE PLATE.
5. TIGHTEN UNION
6. IF LOWER RAIL GUIDE
DOES NOT LINE WITH
UPPER PLATE, TURN
1
1
/2” DISCHARGE NIPPLE UNTIL
GUIDE HOLES LINE UP.
7. SCREW CONDUIT BUSHING
ONTO PUMP CORD NIPPLE.
ASSEMBLY OF CHECK
VALVE, DISCHARGE
PIPING AND SEALING
FLANGE WITH LOWER
RAIL GUIDE, COMES
ASSEMBLED AS SHOWN.
1
1
/4 ” DISCHARGE NIPPLE
LOWER RAIL GUIDE
AND SEALING FLANGE
DISCHARGE CASTING
UPPER HOLD-DOWN
GUIDE
1/2” GALV. HOLD-DOWN PIPE
1” GALV. GUIDE RAILS
LOWER HOLD-DOWN
GUIDE
UPPER GUIDE PLATE
13800A862 11/06/12
8
ASSEMBLING DISCHARGE PIPING AND RAIL GUIDES TO PUMP
