Pentair Myers WG20 User Manual

13800A862 11/06/12
9

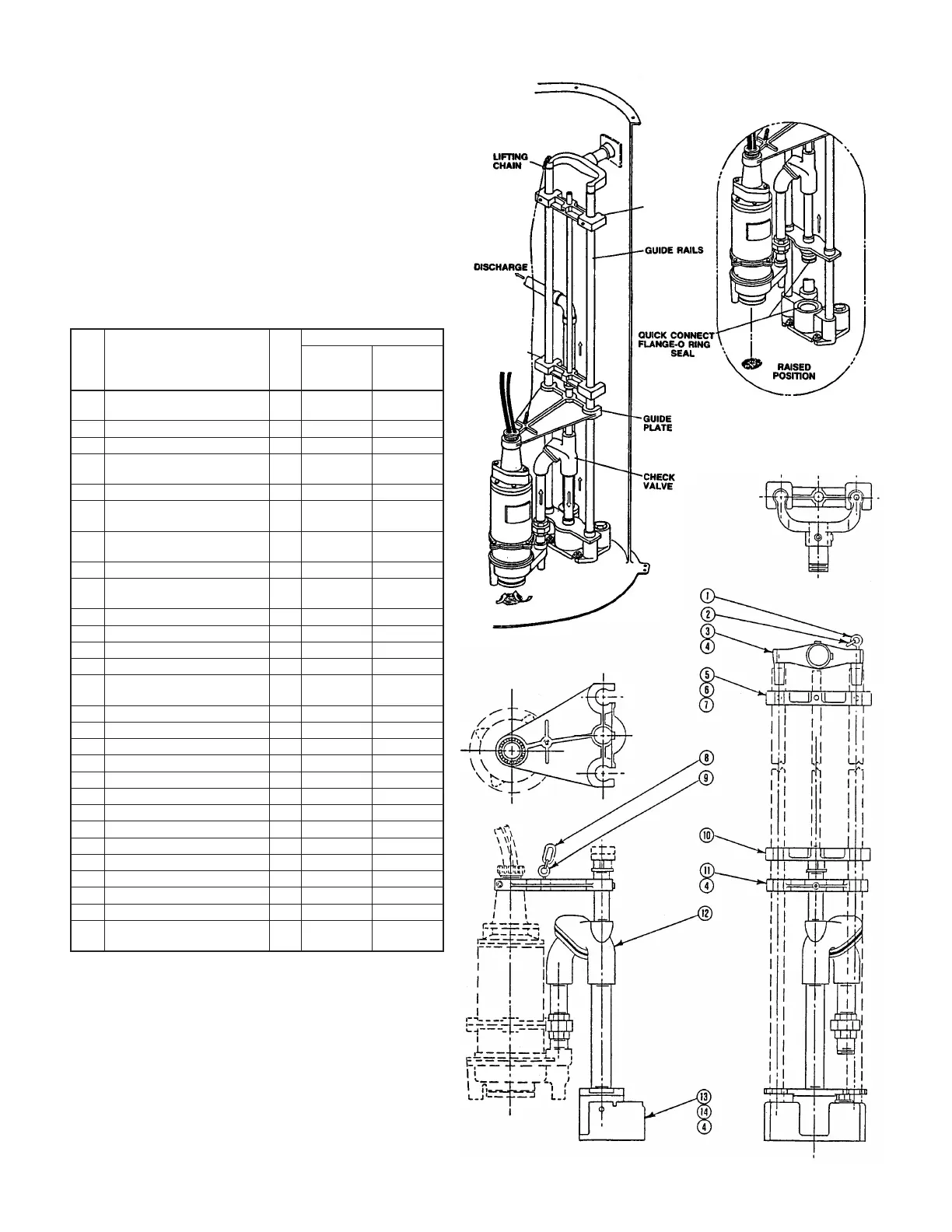

RWG & RWGX 125 RAIL SYSTEM PARTS
LIST FOR 2HP GRINDER PUMPS
Ref.
No. Description Qty.
Part Numbers
Standard
RWG-125
Hazardous
Location
RWGX-125
1
BOLT EYE, GALV.
5/16-18 x 7/8 EYE
1 21929A001 21929A001
2 CLEVIS, CHAIN SHACKLE, GALV. 2 22417A001 22417A001
3 GUIDE, UPPER RAIL 1 22416B000 22416B000
4
SCREW, SET 3/8-16 UNC x 1,
SQ. HD., SST
8 05057A030 05057A030
5 PLATE, TOP HOLD-DOWN 1 22415B001 22415B003
6
SCREW, CAP, HEX, SST,
3/8-16 x 1 LG.
2 19101A010 19101A010
7
SCREW, CAP, HEX, SST,
3/8-16 x 3/4 LG.
2 19101A003 19101A003
8 CHAIN 1 07741A012 07741A012
9
BOLT, EYE, GALV.
3/8-16 THD. x 1" EYE
1 21929A002 21929A002
10 PLATE, BOTTOM HOLD-DOWN 1 22415B000 22415B002
11 PLATE, UPPER GUIDE 1 22414C001 22414C002
12 VALVE, CHECK & FITTINGS 1 22412C000 22412C001
SLEEVE, SEAL & GUIDE 1 22422C000 22422C001
RING, O, 2-1/4 OD x 1-7/8
ID x 3/16
2 05876A036 05876A036
PIPE, GALV. 1-1/4 x 10-1/2 1 05917A124 05917A124
VALVE, CHECK 1-1/4 1 23076C002 23076C002
PIPE, STEEL, GALV. 1-1/4 x 2 1 05917A051 05917A051
UNION, PIPE 1 11387A008 11387AOO8
PIPE, GALV. 1-1/4 x 3-3/4 LG. 1 05917A132 05917A132
PIPE, GALV. 1 x 6 1 05427A052 05427A052
CAP, PIPE, MALL GALV. 1" 1 05737A002 05737A002
13 CASE, DISCHARGE 1 22413D000 22413D000
14 PLUG, PIPE, GALV. 1-1/4 SQ. H.D. 2 05022A047 05022A047
PIPE, GALV. 1-1/2 x 2-1/2 1 – 05347A026
BUSHING, CONDUIT, 1-1/2 PIPE 1 – 21955A001
PIPE, GALV. 1-1/4 x 4 TOE 1 07358A037 07358A037
PIPE, GALV. 1-1/4 x 5 TOE 1 07358A040 07358A040
PKG., DISCH. FLANGE CAT. DF
125-36
1 22428C010 22428C010
Lift-Out Assembly
HOLD-DOWN
BRACKET
HOLD-DOWN
BRACKET
HOLD-DOWN
BRACKET
