Software Setup 9
Parameter Name Default Value
0-01 Language English
3-41 Ramp 1 Ramp Up Time 5.0 Sec
3-42 Ramp 1 Ramp Down Time 5.0 Sec
3-84 Initial Ramp Time 1.0 sec for Submersible / Off for Above Ground
4-12 Motor Speed Low Limit 30 Hz for Submersible / 0 Hz for Above Ground
4-14 Motor Speed High Limit 60 Hz
6-25 Terminal 54 High Ref. / Feedb. Value 100 PSI
14-20 Reset Mode Automatic Reset x 3
14-21 Automatic Restart Time 10 Min
20-21 Setpoint 1 60 PSI
20-93 PID Proportional Gain 2.00
20-94 PID Integral Time 8.00 Sec
22-24 No Flow Delay 10 Sec
22-27 Dry Pump Delay 10 Min
22-40 Minimum Run Time 1 Min
22-41 Minimum Sleep Time 30 Sec
22-44 Wake-Up Ref./FB Difference 10%
29-00 Pipe Fill Enable Enabled
29-02 Pipe Fill Speed 45 Hz
29-03 Pipe Fill Time 60 Sec
29-05 Filled Setpoint 10 PSI
24
Auto
On
25

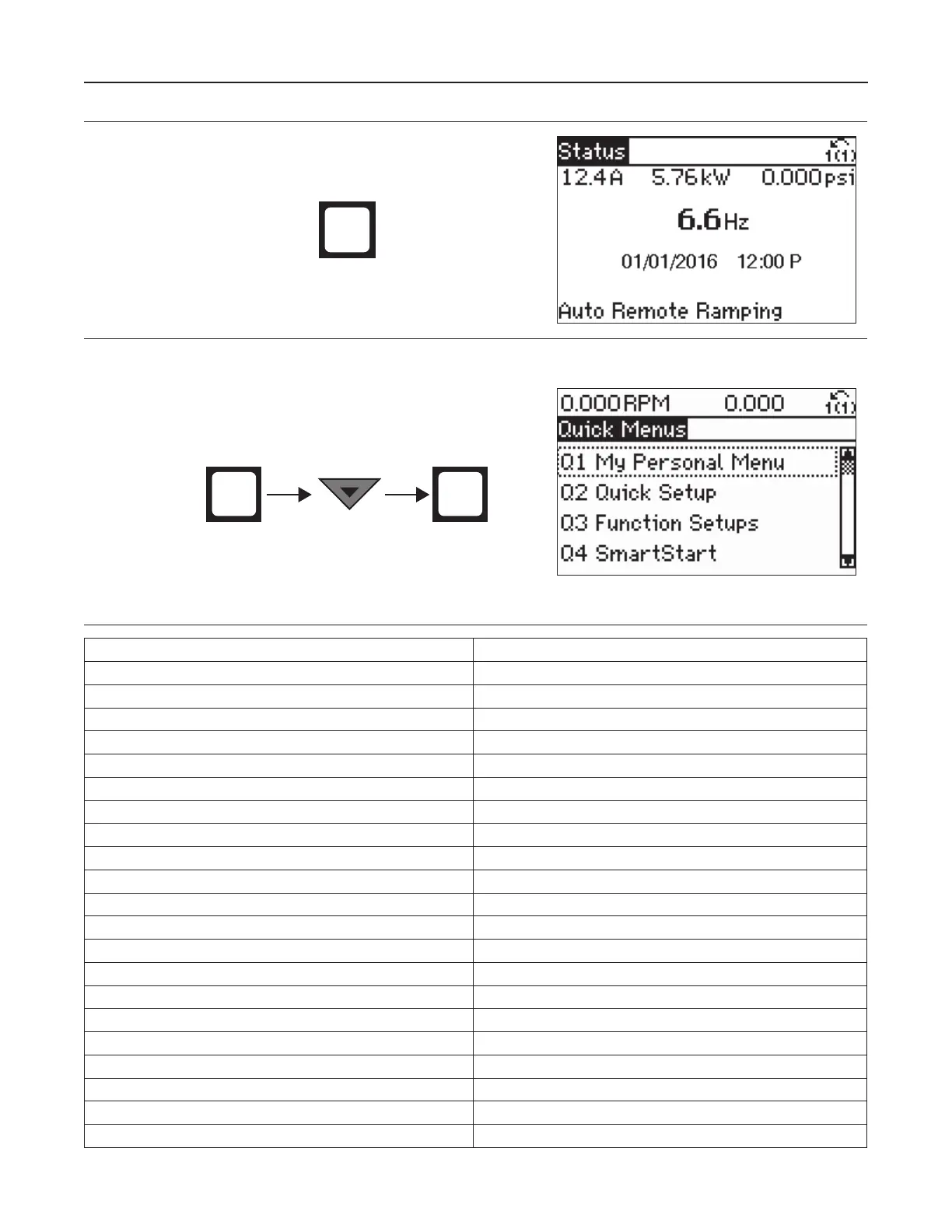

Use My Personal Menu to access commonly
adjusted parameters: Setpoint, Ramp Times,
Transducer Limits and PID and Pipe Fill
Settings. See table below for a list of the
parameters and their default settings.
Quick
Menu
OK
To My Personal Menu
Refer to Danfoss Operating Instructions
(130R0336), Design Guide (130R0337), and
Programming Guide (130R0335) for further
details.
