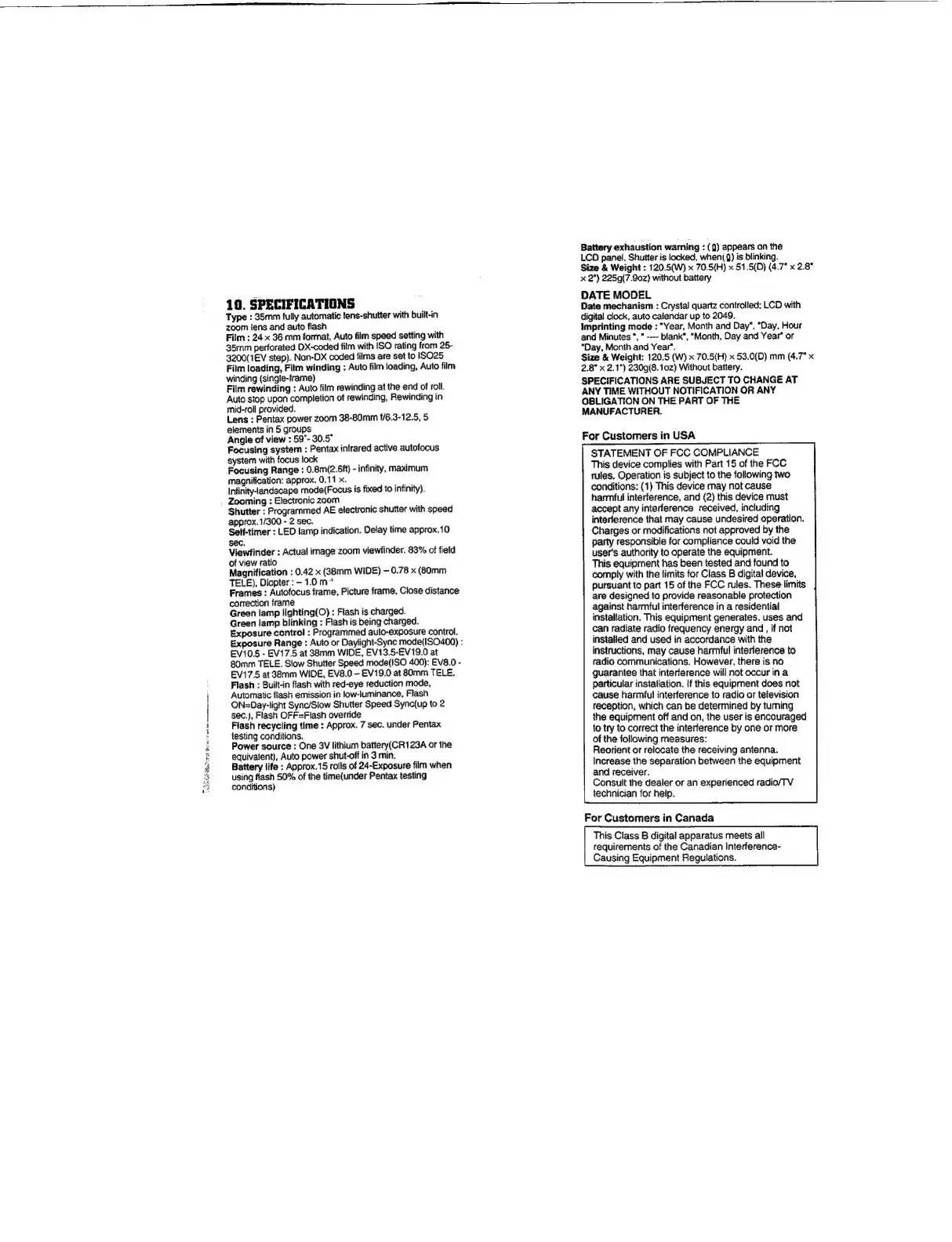

10. SPECIFICATIONS
Type : 35mm fully automatic tens-shutter with built-in
zoom lens and auto flash
Film : 24 x 36 mm format, Auto film speed setting with
35mm perforated DX-coded film with ISO rating from 25-
3200(1€V step). Non-DX coded films are set to ISO25
Film loading, Film winding : Auto film loading, Auto film
winding (single-frame)
Film rewinding : Auto film rewinding at the end of roll.
Auto
stop
upon
completion
of
rewinding,
Rewinding
in
mid-roll provided.
Lens : Pentax power zoom 38-80mm /6.3-12.5, 5
elements in 5 groups
Angle of view : 59°- 30.5"
Focusing
system
:
Pentax
infrared
active
autofocus
system
with
focus
lock
Focusing
Range
:
0.8m(2.6ft)
-
infinity,
maximum
magnification:
approx.
0.11
x.
Infinity-landscape mode(Focus is fixed to infinity).
Zooming : Electronic zoom
Shutter
:
Programmed
AE
electronic
shutter
with
speed
approx.
1/300
- 2
sec.
Self-timer : LED lamp indication. Delay time approx.10
sec.
Viewfinder : Actual image zoom viewfinder. 83% of field
of view ratio
Magnification
:
0.42
x
(38mm
WIDE)
—
0.78
x
(80mm
TELE),
Diopter
:
—
1.0m"
Frames
:
Autofocus
frame,
frame,
Close
distance
correction
frame
Green lamp lighting(©) : Flash is charged.
Green lamp blinking : Flash is being charged.
Exposure control : Programmed auto-exposure control.
Exposure Range : Auto or Daylight-Sync mode(ISO400) :
EV10.5 - EV17.5 at 38mm WIDE, EV13.5-EV19.0 at
80mm TELE. Slow Shutter Speed mode(iSO 400): EV8.0 -
EV17.5 at 38mm WIDE, EV8.0 -£V19.0 at 80mm TELE.
Flash : Built-in flash with red-eye reduction mode,
Automatic flash emission in low-luminance, Flash
ON=Day-light Sync/Slow Shutter Speed Sync(up to 2
sec.), Flash OFF=Flash override
Flash recycling time : Approx. 7 sec. under Pentax
testing conditions.
Power source : One 3V lithium battery(CR123A or the
equivalent), Auto power shut-off in 3 min.
Battery life : Approx.15 rolls of 24-Exposure film when
using flash 50% of the time(under Pentax testing
conditions)
Battery exhaustion warning : (0) appears on the
LCD panel. Shutter is locked, when( ĝ) is blinking.
Size & Weight : 120.5(W) x 70.5(H) x 51.5(D) (4.7" x 2.8"
x 2") 225g(7.90z) without battery
DATE MODEL
Date mechanism : Crystal quartz controlled; LCD with
digital clock, auto calendar up to 2049.
imprinting mode : "Year, Month and Day”, “Day, Hour
and Minutes °, " ---- blank", "Month, Day and Year" or
"Day, Month and Year".
Size & Weight: 120.5 (W) x 70.5(H) x 53.0(D) mm (4.7" x
2.8" x 2.1") 230g(8.10z) Without battery.
SPECIFICATIONS ARE SUBJECT TO CHANGE AT
ANY TIME WITHOUT NOTIFICATION OR ANY
OBLIGATION ON THE PART OF THE
MANUFACTURER.
For Customers in USA
STATEMENT OF FCC COMPLIANCE
This device complies with Part 15 of the FCC
tules. Operation is subject to the following two
conditions: {1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired operation.
Charges or modifications not approved by the
party responsible for compliance could void the
user's authority to operate the equipment.
This equipment has been tested and found to
comply with the limits for Class B digital device,
pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection
against harmtut interference in a residential
installation. This equipment generates. uses and
can radiate radio frequency energy and , if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does not
cause harmful interference to radio or television
reception, which can be determined by tuming
the equipment off and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Consult the dealer or an experienced radio/TV
technician for help.
For Customers in Canada
This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations.

Pentax espio 80V Specifications

Lens and Viewfinder

lens type	Pentax power zoom 38-80mm /6.3-12.5
viewfinder magnification	0.42 x (38mm WIDE) — 0.78 x (80mm TELE)
viewfinder field of view ratio	83%

Power and Battery

power source	One 3V lithium battery (CR123A or equivalent)
battery life	Approx. 15 rolls of 24-Exposure film when using flash 50% of the time
auto power shut-off	3 min

Weight and Dimensions

width	120.5 mm
height	70.5 mm
depth	51.5 mm
weight	225 g
