Pentax IQZoom 135 M - Viewfinder Displays; Viewfinder Framing Guides; Viewfinder Information

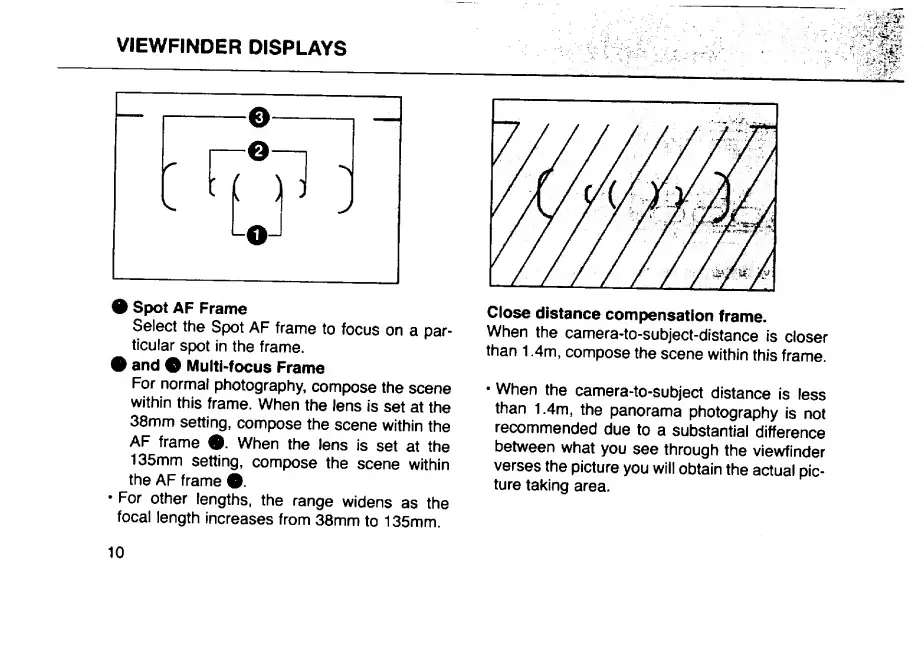

VIEWFINDER DISPLAYS
- A 1
©— 1
" 71 1
^ ^ j j j
LqJ
% Spot AF Frame
Select the Spot AF frame to focus on a par¬
ticular spot in the frame.
# and O Multi-focus Frame
For normal photography, compose the scene
within this frame. When the lens is set at the
38mm setting, compose the scene within the
AF frame 9. When the lens is set at the
135mm setting, compose the scene within
the AF frame O.
• For other lengths, the range widens as the
focal length increases from 38mm to 135mm.
Close distance compensation frame.
When the camera-to-subject-distance is closer
than 1.4m, compose the scene within this frame.
• When the camera-to-subject distance is less
than 1.4m, the panorama photography is not
recommended due to a substantial difference
between what you see through the viewfinder
verses the picture you will obtain the actual pic¬
ture taking area.
10
