Pentax P3 User Manual

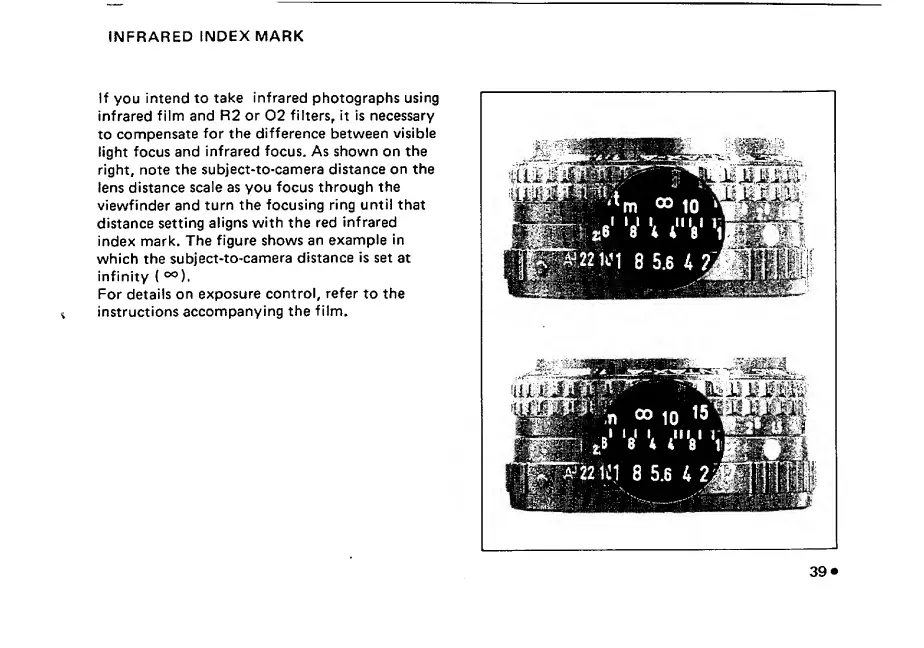

INFRARED INDEX MARK
If you intend to take Infrared photographs using
infrared film and R2 or 02 filters, it is necessary
to compensate for the difference between visible
light focus and infrared focus. As shown on the
right, note the subject-to-camera distance on the
lens distance scale as you focus through the
viewfinder and turn the focusing ring until that
distance setting aligns with the red infrared
index mark. The figure shows an example In
which the subject-to-camera distance is set at
infinity ( ).
For details on exposure control, refer to the
instructions accompanying the film.
39 •

Pentax P3 Specifications

General

Model	Pentax P3
Film Format	35mm
Lens Mount	Pentax K mount
Metering	TTL center-weighted
Flash Sync	1/100 sec
Camera Type	SLR
Shutter Speed	1/1000 sec to 1 sec, Bulb
Exposure Modes	Manual
ISO Range	25-1600
Viewfinder	Pentaprism
Flash	Hot shoe
Battery	2x LR44/SR44
