108
NOTE: Don’t use the same point name (PN) for start point when you measure the start point
from the last corner point. For example, change “T1” to “T1-1” etc.
Open traverse
You do not need to measure the corner point by pressing [ENT] for calculation at the
last corner point. The closing errors are not calculated.

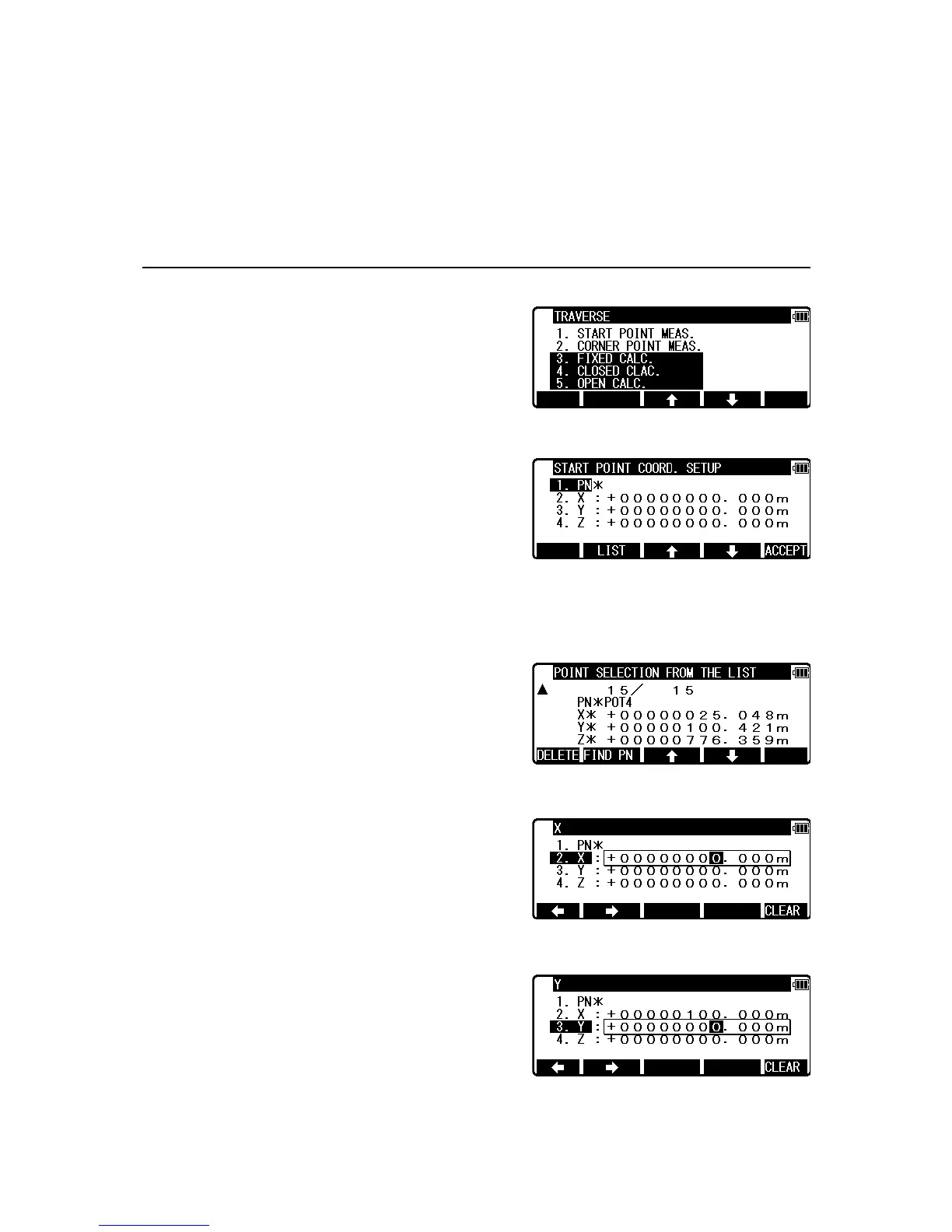

11.3 Calculation
Select “3.FIXED CALC.” or “4. CLOSED CALC.”
or “5.OPEN CALC.” to calculate the traverse route.
Press [ENT] to view the START POINT COORD.
SETUP screen.
Start point coordinates setup.
(Input the PN, Coordinates and PC of the Start point.)
[LIST] key
All the stored points can be displayed as follows by
pressing [F2] [LIST].
Press [F2] [LIST] to view the POINT SELECTION
FROM THE LIST screen.
Press [ENT] to open the X coordinate input screen.
Input your desired value by pressing each keys and
press [ENT] to go Y coordinate.
Press [ENT] to open the Y coordinate input screen
and input.
To Next Page
