DIN Rail Mounting
Following tools and installation materials required:
- Screwdriver,
- 4 anchors,
- 4 screws (included in scope of delivery).
1. Attach the DIN rail adapter to the back of the BTC22. Use the thread on the bottom of the
BTC22 to secure the adapter. Tighten the supplied screws to a tightening torque of 0.4 Nm.

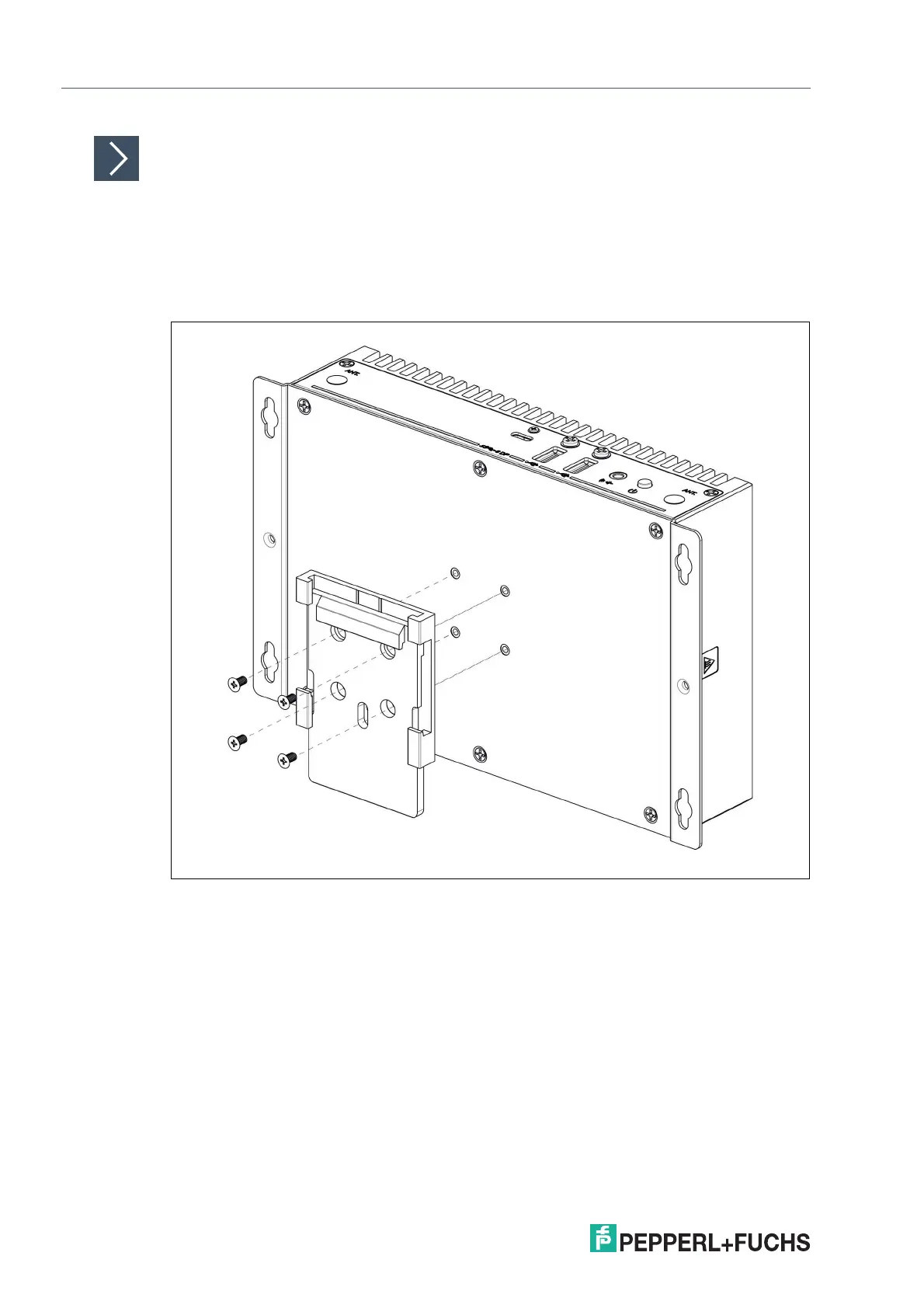

Figure 4.3
