BTC22-*
Product Description
3.4 Dimensions and Nameplates
Dimensions

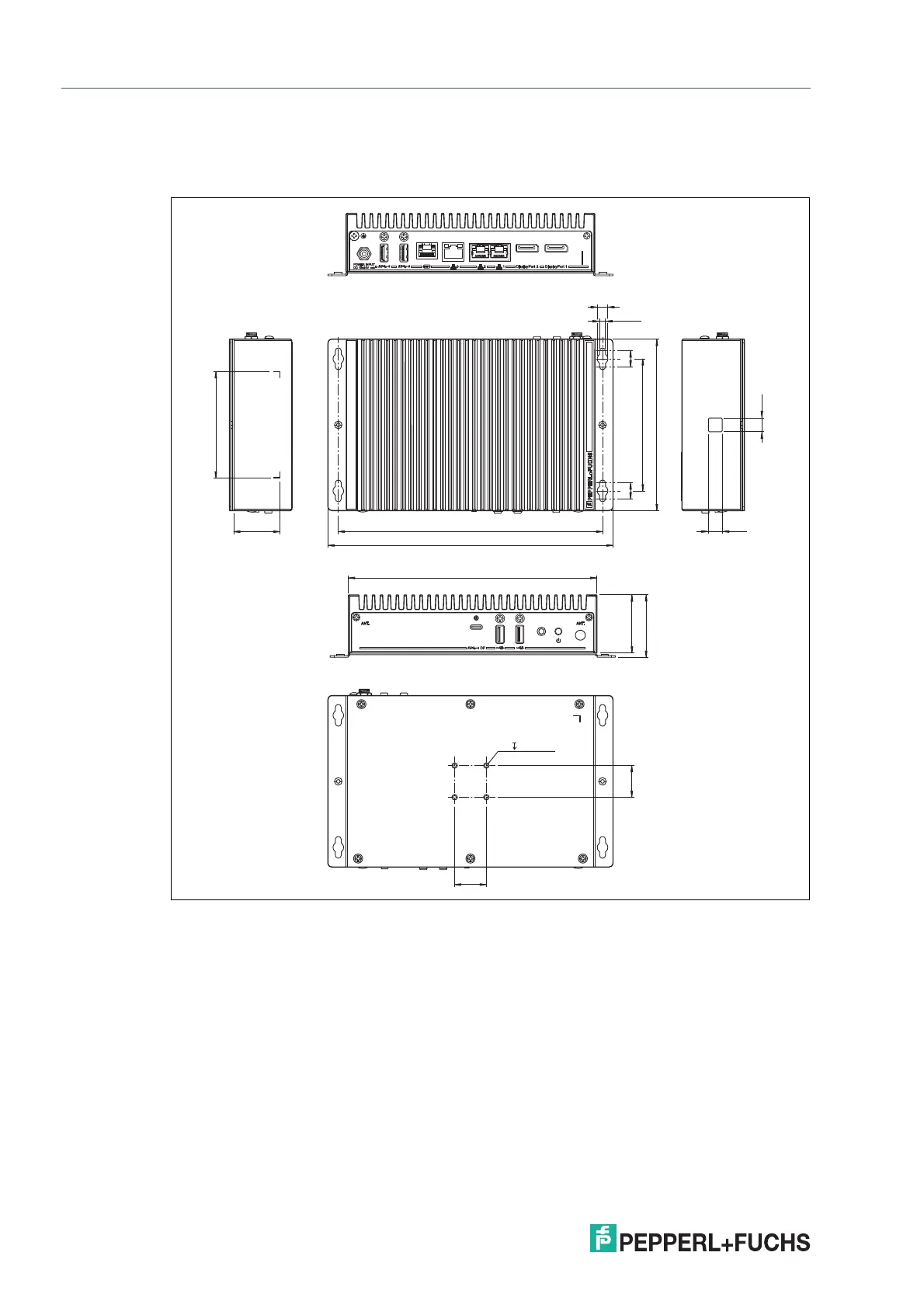

Figure 3.3 BTC22 dimensions
34.9
80.4
10.4
10.4
12 12
100
129.8
200
215.7
188
44
47.2
4.5 (2x)
8
24
M3 4 mm (4x)
24
