IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0
System Structure

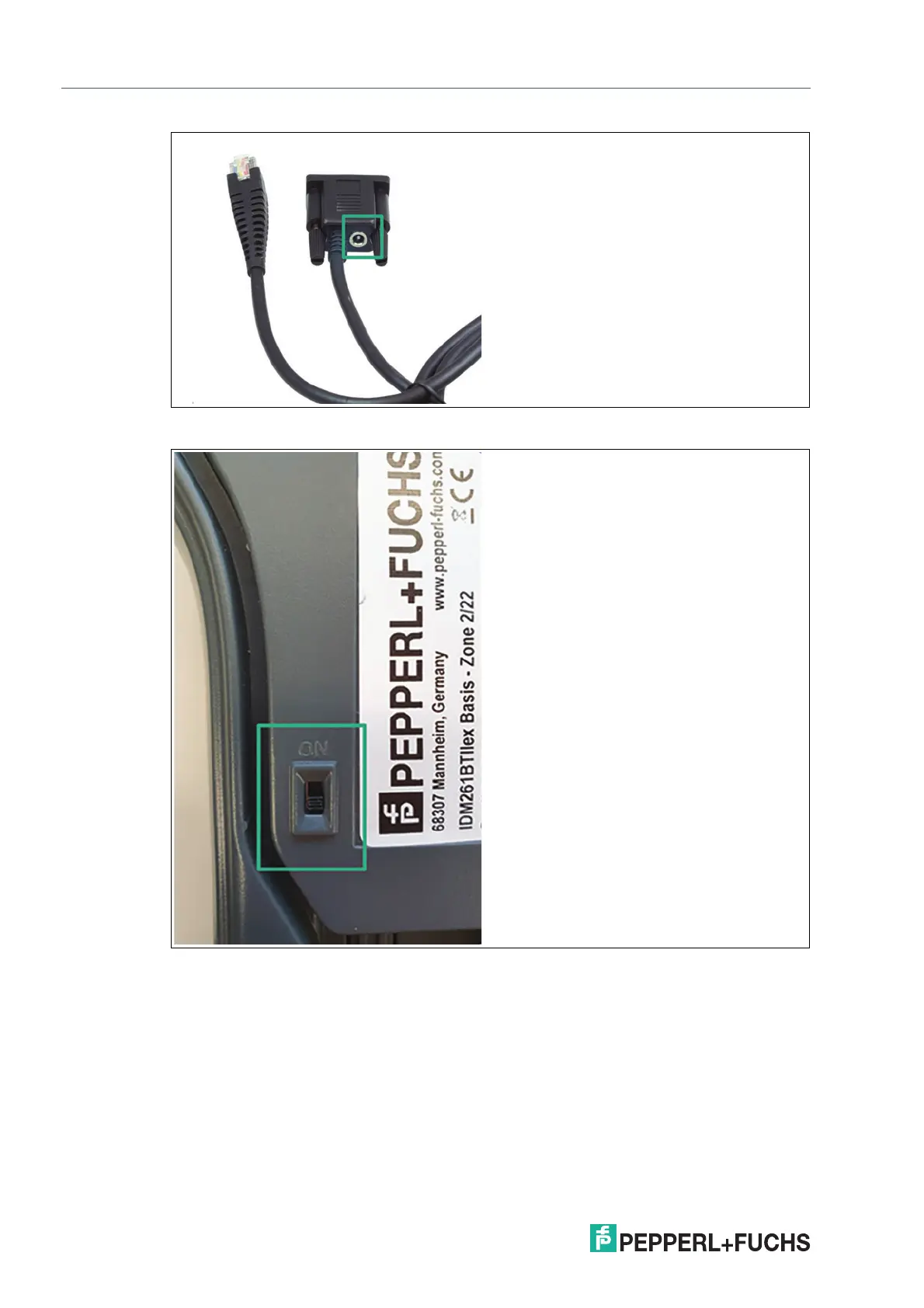

Figure 4.5 PSU-IDMx61-BC-N0-N0 Non-Ex Power Supply needs to be connected to the SUB-D9
connector
Figure 4.6 When USB 3.0 is available set the USB bus power switch to “ON”. Then connect the
cradle and host device via a USB cable.
