AS-i 3.0 Profinet-Gateway in Edelstahl
Montageanweisung // Installation Instructions // Notice de montage //
20.12.2013
11
8.2 Slave-Adressierung / Addressing / Adressage / Indirizzamento /
Asignamiento de dirección

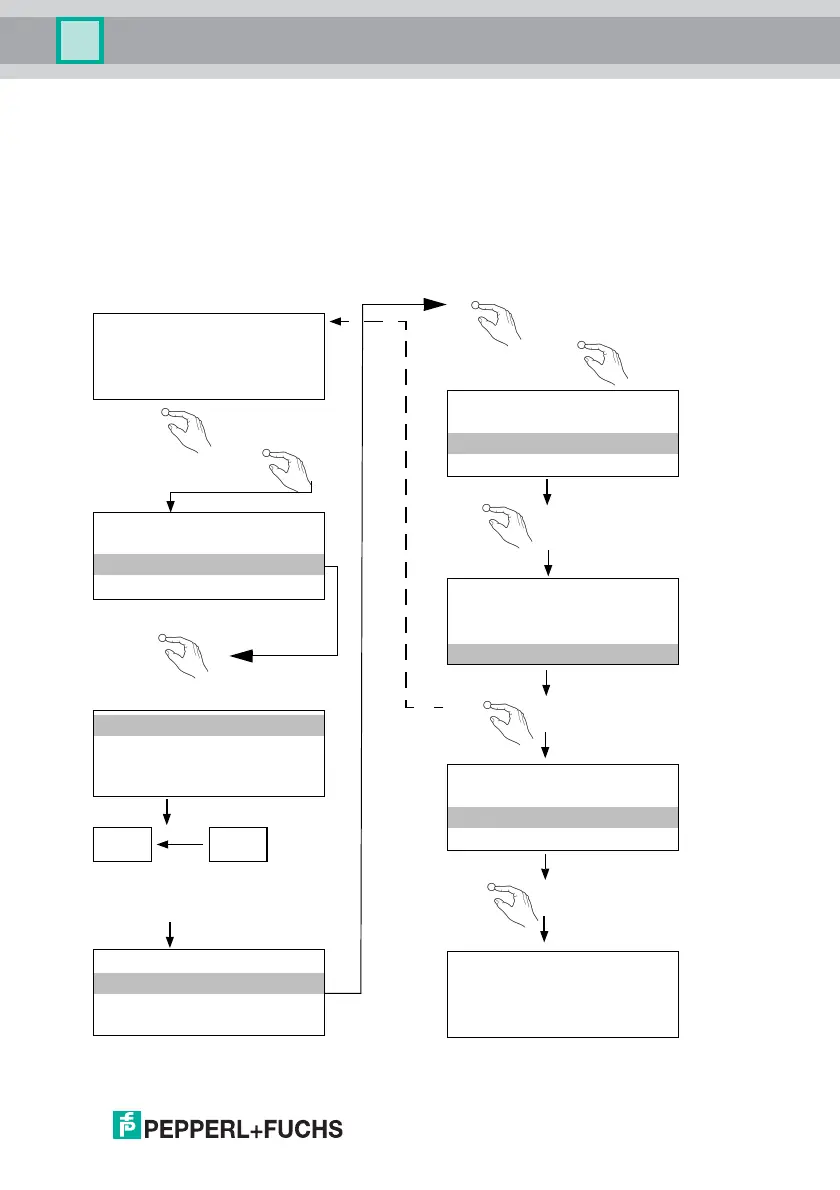

8.2.1 Slave 2 adressieren auf Adresse 6 / Assigning address 6 to slave currently
at address 2/ Affecter l’adresse 6 à l’esclave 2 / Impostare l’indirizzo 6 allo
slave 2 / Asignar el esclavo 2 a la dirección 6
LCD
. 41
SEARCHING SLAVE
QUICK SETUP
SLAVE ADR TOOL
TEST
LCD
SLAVE ADR TOOL
CONNECT NEW SLAVE
LCD
SLAVE ADR TOOL
OLD ADDRESS 2
NEW ADDRESS 3
PRG
LCD
SLAVE ADR TOOL
OLD ADDRESS 2
NEW ADDRESS 6
LCD
. 6
UNKNOWN SLAVE
LCD
SLAVE ADR TOOL
OK
OLD ADDRESS
NEW ADDRESS
PRG
LCD
SLAVE ADR TOOL
OLD ADDRESS 2
NEW ADDRESS 6
PRG
Master Slave
Modul anschließen/Connect
module/Raccordez module/
Collegare modulo/Conecte modulo
↓
OK
OK
↓
OK
↓
ESC
OK
DIAGNOSIS
