16 PERCUSSIONAIRE
®
Reattach the tubing harness
to Phasitron®:

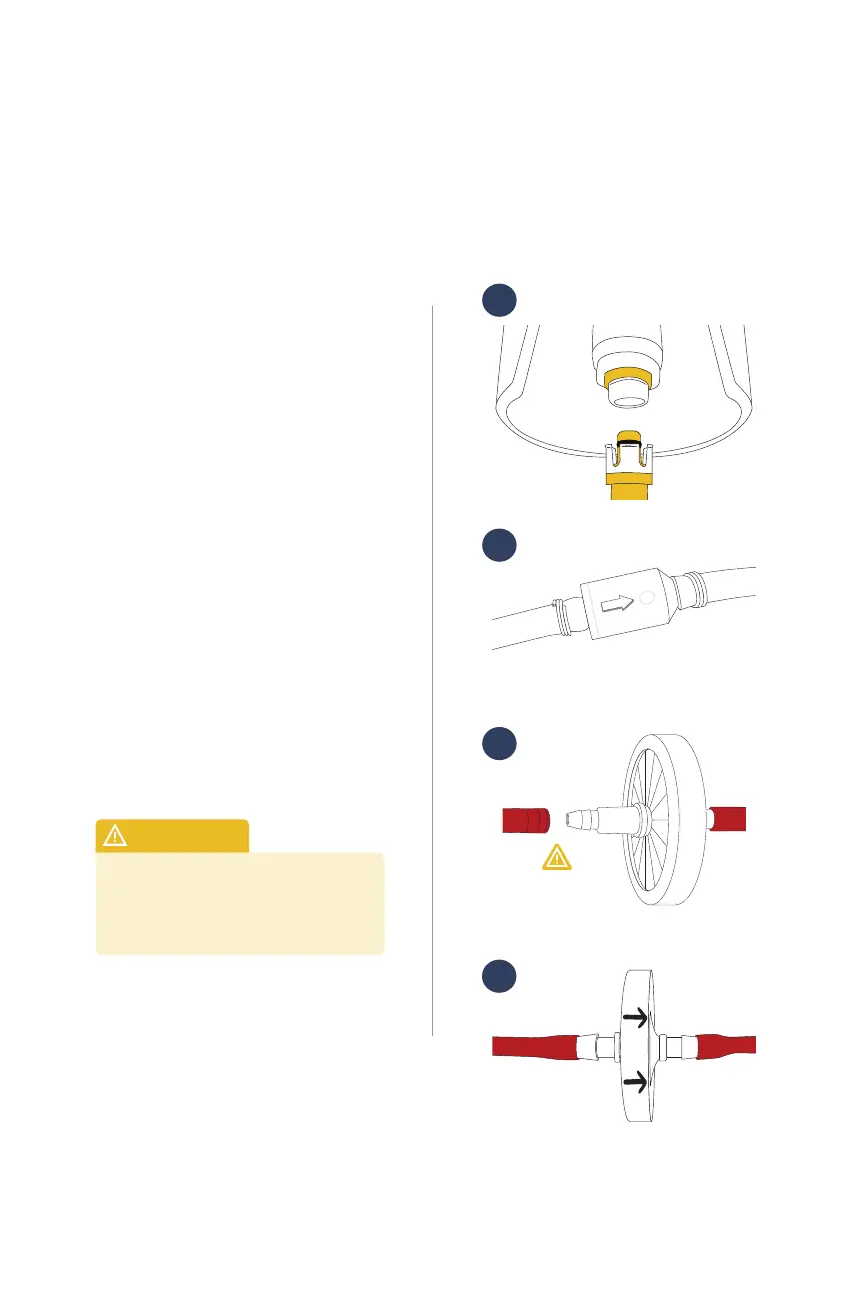

1. Connect yellow tubing
quick connector to
nebulizer bowl. Figure 24
2. If there is a check valve, it
is important to ensure that
the direction of arrow on
check valve points towards
the nebulizer. Figure 25
(check valve may dier in
color)
3. Connect red tubing to
either side of bacterial
filter. Figure 26
If reusing filter, ensure that it is
reassembled in original direction.
Figure 27
WARNING
• continued on page 17
