Reattach the tubing harness
to Percussionaire® Controller
device:

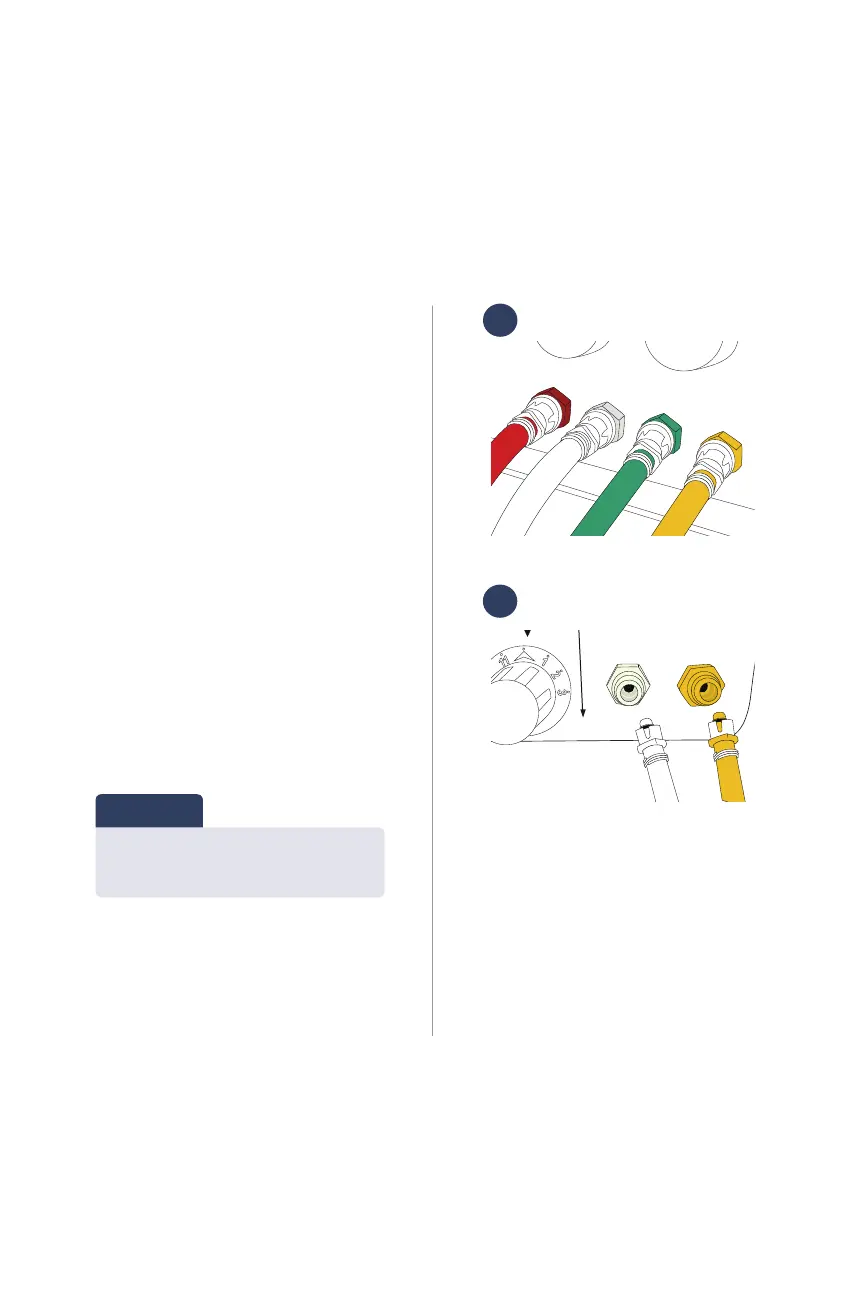

1. Connect red tubing quick
connector to red on device
(if applicable). Figure 31
2. Connect white tubing quick
connector to white/silver
on device. Figure 31
3. Connect green tubing
quick connector to green
on device (if applicable).
Figure 31
4. Connect yellow tubing
quick connector to yellow/
gold on device. Figure 31
Green or red connector may not
be present. Figure 32
NOTE
31
32
