NOTE - Because they
lack lubrication on the
rubber plunger, new
grease guns may be
difficult to load with grease cartridges the first time. Apply a liberal coating of grease to
plunger when using gun for the first time.
This grease gun requires a 14 oz. grease cartridge.
2. Draw handle back fully so that the plunger rod
catches and locks into place. (Figure 2)
CAUTION: Depressing the lock release when
empty causes the handle to snap back quickly.
3. After removing the plastic cap from the grease
cartridge, apply a small amount of grease to the
inside edge of the cartridge. This will make insertion
of the plunger easier. (Figure 3)
4. Push grease cartridge into gun barrel completely, until metal edge tightly seals on top of
the grease gun barrel. Detach flip-top seal from cartridge. (Figure 4)

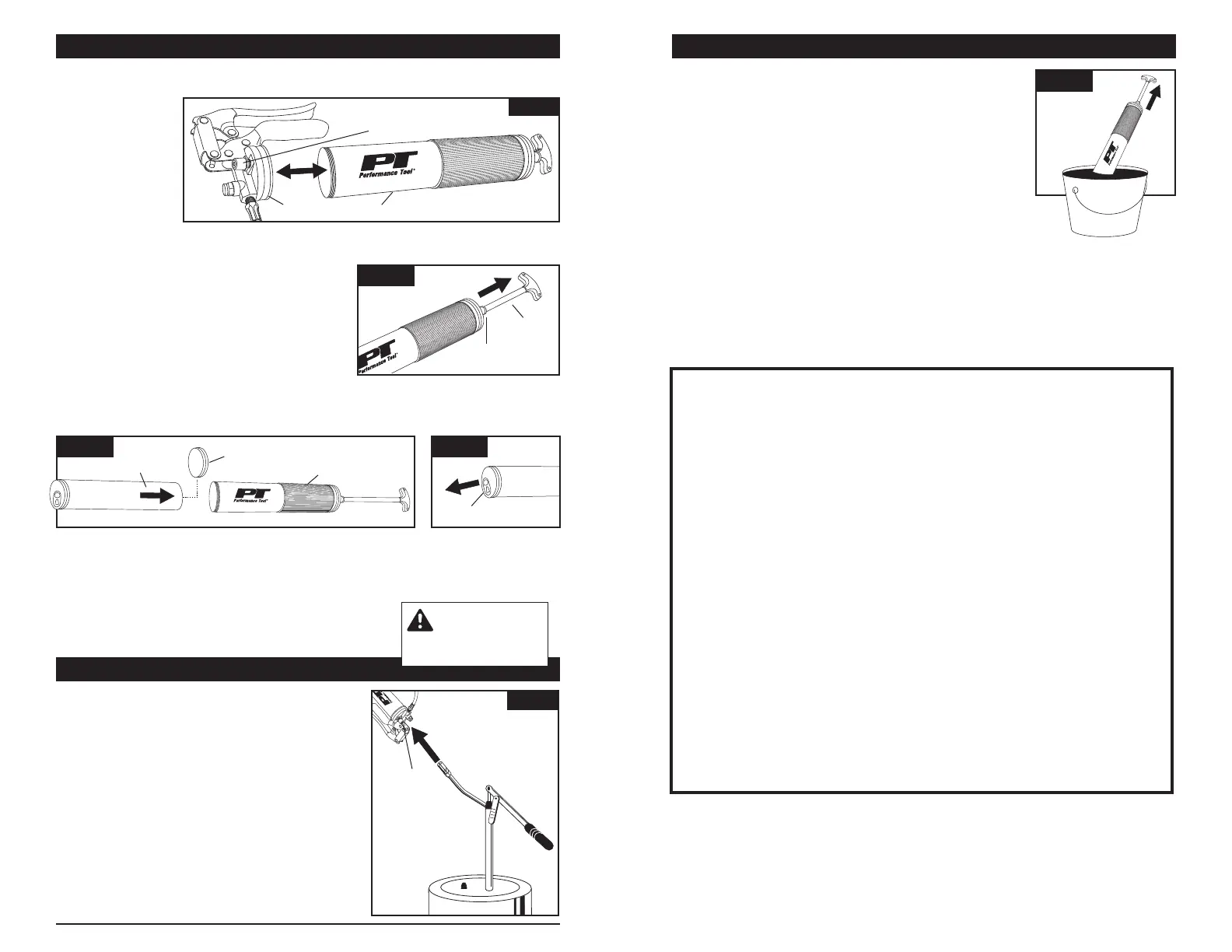

NOTE - This is a basic instruction manual which covers various models of grease guns.
The illustrations below may not depict exactly your specific gun.
1. Rotating counter
clockwise, unscrew
Head Cap from gun
Barrel. (Figure 1)
GREASE CARTRIDGE LOADING
5. Screw on head cap approximately two turns, being sure not to tighten. Release plunger
rod from its locked position and push in. Push on plunger rod handle to force plunger into
cartridge. At the same time, pump the lever or handle to release trapped air. When grease
comes through vents and the head of the gun, fully tighten the head cap to the barrel.
6. As soon as the gun is pumping grease, carefully depress
the lock release and push plunger rod back into gun.
Figure 4
Flip-top Tab
Figure 2
Plunger
Handle
Lock
Release
Figure 3
Barrel
Plastic Cap
Grease Cartridge
Head Cap
Barrel
Bleeder Valve
Figure 1
NOTE - Used cartridges must be removed prior to bulk loading.
1. Make sure the valve is compatible with the adapter
on the pump. (Figure 5)
2. Attach the filler valve to the adapter by pushing in
and rotating slightly.
3. Operate the pump handle while holding the gun
firmly to the pump. As the grease pumps into the
grease gun barrel the plunger handle will extend.
Loading is complete when the plunger rod is fully
extended.
4. A slight twist of the gun will detach it from the pump.
Depress lock release and push the plunger rod back
into the gun.
BULK LOADING WITH DISPENSER
DO NOT REFILL
USED CARTRIDGES
WARNING!
Figure 5
NOTE - Used cartridges must be removed prior to suction filling.
1. Remove the gun head cap from the barrel.
2. Submerge open end of the barrel into grease bucket. Be sure
the plunger handle is depressed completely. Grasp the barrel
firmly and pull back slowly on the plunger handle. Be sure the
mouth of the barrel is always under the surface so that air is not
transferred into the barrel. (Figure 6)
3.
Loading is complete when plunger rod is fully extended.
4. Reattach the gun head cap to the barrel. Depress lock release
and push the plunger rod back into the gun.
NOTE - Grease guns may lose their prime on occasion, because of air pockets in the grease.
If this occurs, remove the trapped air by bleeding the head cap and resume pumping.
Figure 6
SUCTION FILLING
Bulk Load
Filler Valve
LIMITED WARRANTY
PERFORMANCE TOOL extends only the following warranties, and only to original retail purchasers. These warranties give specific legal rights. Except
where prohibited by local law, the law of the State of Washington governs all warranties and all exclusions and limitations of warranties and remedies.
There may be other rights which vary from state to state. PERFORMANCE TOOL warrants the product to be free from defects in materials and
workmanship under normal use and service. A defective product may be returned for a free replacement within 90 days from the date of purchase,
provided that product is returned to place of purchase immediately after discovery of defect. These warranties shall be valid only when a sales receipt
showing the date of purchase accompanies the defective product being returned. These warranties exclude blades, bits, punches, dies, bulbs, fuses,
hoses, and other consumables which must be replaced under normal use and service. These warranties shall not apply to any product or part which is
used for a purpose for which it is not designed, or which has been repaired or altered in any way so as to affect adversely its performance or reliability,
nor shall these warranties apply to any product or part which has been subject to misuse, neglect, accident or wear and tear incident to normal use and
service. PERFORMANCE TOOL does not authorize any other person to make any warranty or to assume any liability in connection with its products.
Except for warranties of title and the limited express warranties set forth above, PERFORMANCE TOOL makes no express or implied warranties of
any kind with respect to its products. In particular, PERFORMANCE TOOL makes no implied warranty of merchantability and no implied warranty of
fitness for any particular purpose, except that for goods purchased primarily for personal, family or household use and not for commercial or business
use, PERFORMANCE TOOL makes an implied warranty of merchantability (and, if otherwise applicable, an implied warranty of fitness for a particular
purpose), but only for the particular qualities or characteristics, and for the duration, expressly warranted above. The laws on limitation of implied
warranties may differ from state to state, so the above limitations may not apply in all cases. PERFORMANCE TOOL shall not be liable for
consequential, incidental or special damages resulting from or in any manner related to any product, or to the design, use, or any inability to use the
product. The sole and exclusive remedy for a defective product or part shall be the repair, or replacement thereof as provided above. The laws on
limitation of remedies or on consequential, incidental or special damages may vary from state to state, so the above limitations may not apply in all
cases. Copyright © 2014 PERFORMANCE TOOL – All rights reserved
