This multi-cut saw precision saw is a versatile
tool that is designed for use in confined work
spaces. By selecting the appropriate cutting
blades, it will cut copper and aluminum tubing,
ceramic and marble tile, and assorted wood
products. The following assembly and operating
instructions will explain the tool and its operation
in detail.
REMOVING THE BLADE
WARNING: Always unplug the tool from
the power source before making any
adjustments or changing the blade.
WARNING: Always be extremely careful
when handling blades. They will be
extremely hot immediately after use. They
are also very sharp and may cause serious
injury.
1. Lay the tool on its right hand side on a
workbench or other suitable work surface.
NOTE: Protect the work surface with
cardboard or a cloth.

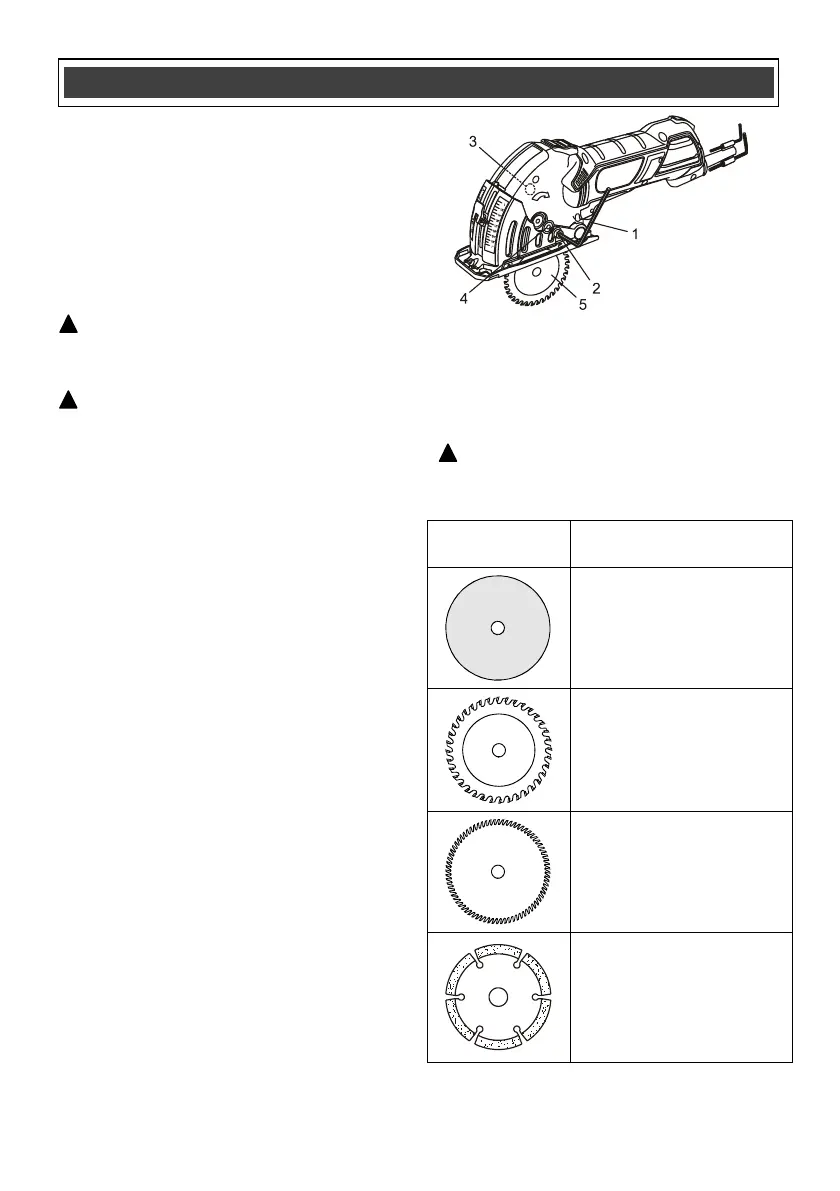

2. Insert the 5 mm hex key (1) into the arbor
screw (2) on the LEFT side of the tool
(Fig. 1).
3. Press inward on the spindle lock button (3)
which is located on the RIGHT side of the
tool.
4. Rotate the hex key CLOCKWISE while
pressing on the spindle lock button until the
spindle lock button engages the spindle.
5. Continue to rotate the arbor screw in a
CLOCKWISE direction until the arbor
screw is removed and the thick arbor
washer (4) can be pulled off the arbor.
NOTE: The arbor screw has a left hand
thread. It must be turned CLOCKWISE to
be removed.
6. Turn the tool to its upright position and
carefully remove the blade (5) through the
slot in the bottom of the blade guard.
SELECTING THE CORRECT BLADE
Before installing a blade into the tool, it is
important to select the correct blade for the type
of material being cut.
WARNING: Using the incorrect blade
type can result in damage to the blade and
possible injury to the operator.
Reinforced cutting disc
85 mm x 1.4 mm corundum
compound.
Cuts non-ferrous metal,
plastic & wood
Carbide tipped blade
85 mm x 1.7 mm x 24 teeth
85 mm x 1.7 mm x 36 teeth
Cuts aluminum, hardwood,
laminates, plastics
HSS Super cut blade
85 mm x 1.0 mm x 80 teeth
Cuts hardwood, soft wood &
plastics
Segmented diamond
blade
85 mm x 1.8 mm
Cuts ceramic and marble
tile, circuit boards &
fiberglass reinforced
plastics
