Performax 24220 - Attaching Sprocket Cover

performaxopeners.com Customer Service: 1-877-436-4402 9

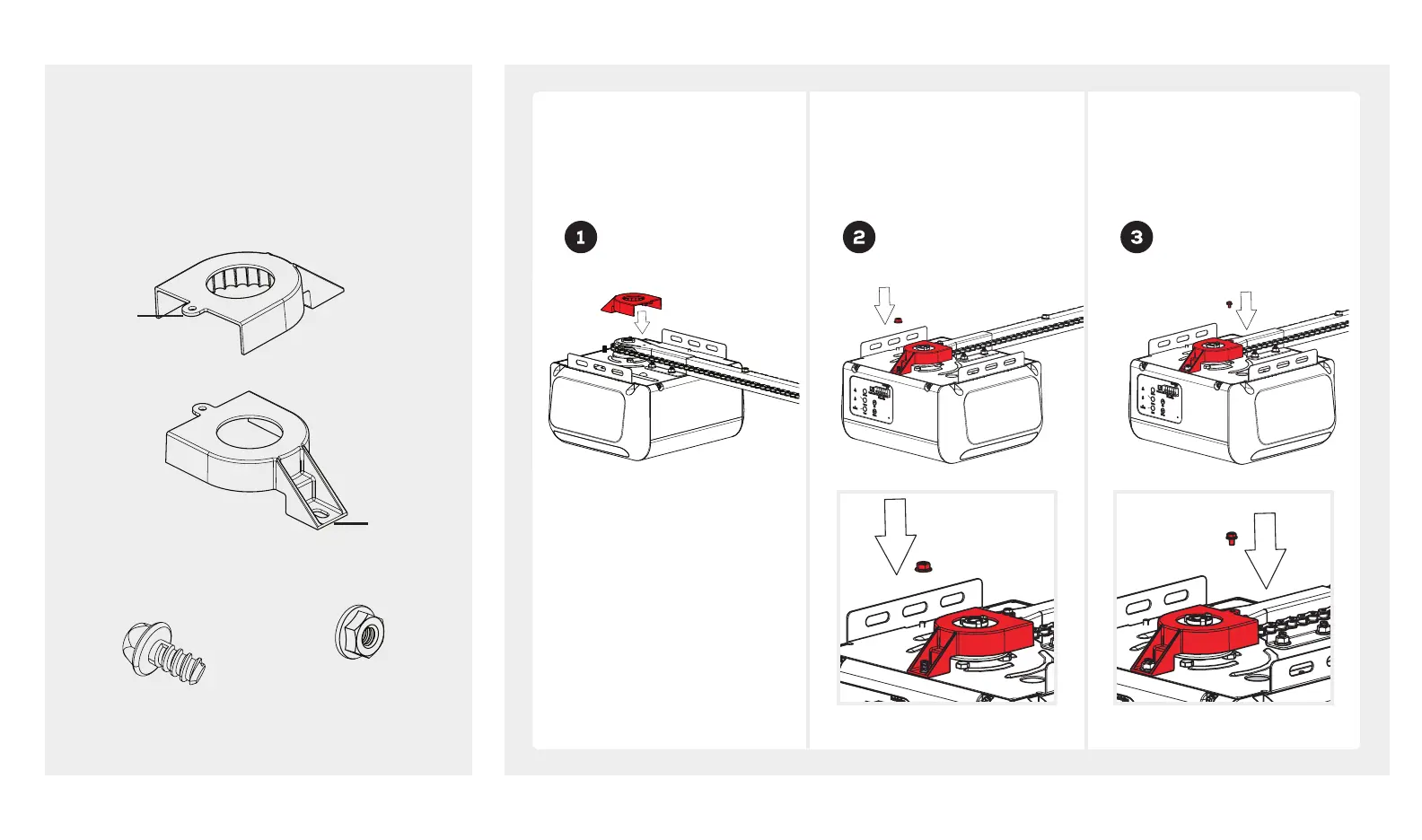

ATTACHING SPROCKET COVER
Look in the box for:
Sprocket Cover
Front
Tab
Rear Tab
Self-Threading Screw
#8-18 x 5/16
Flange Nut
Attach sprocket cover to
power head.
Fasten rear tab with flange nut
on top of steel chassis.
Fasten front tab with self-
threading screws to hole on
top of rail bracket.
