Off Engine Parts and Options

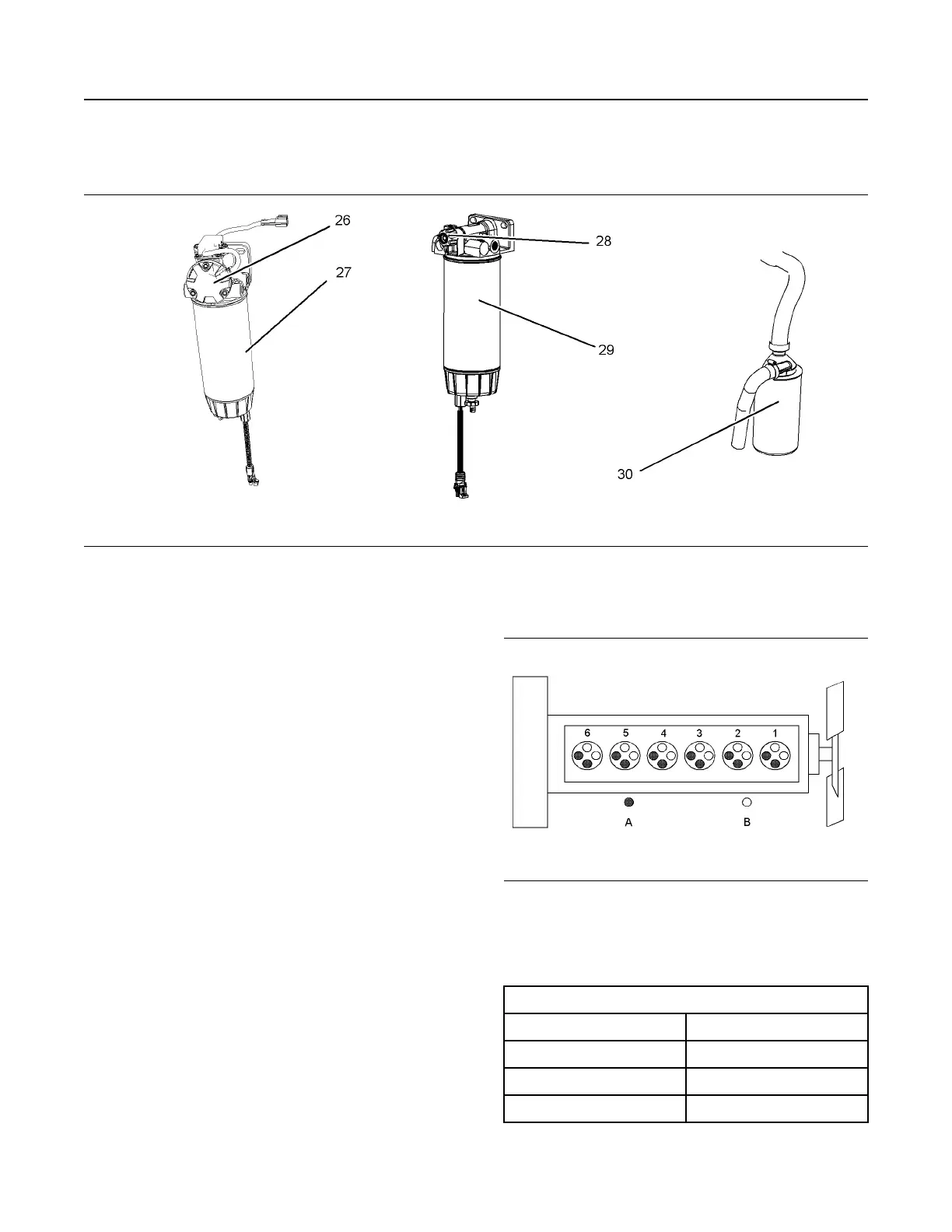

Illustration 20 g03343046
(26) Electric priming pump
(27) Primary fuel filter
(28) Mechanical priming pump
(29) Primary fuel filter
(30) Spin on crankcase breather
i05272410
Product Description
The Perkins 1106C-E70TA and the 1106D-E70TA
Industrial Engines has the following characteristics.
• In-line 6 cylinder
• Four stroke cycle
• Turbocharged aftercooled
Engine Specifications
Note: The front end of the engine is opposite the
flywheel end of the engine. The left and the right
sides of the engine are determined from the flywheel
end. The number 1 cylinder is the front cylinder.
Illustration 21 g01127295
Cylinder and valve location
(A) Exhaust valves
(B) Inlet valves
Table 1
Engine Specifications
Operating Range (rpm)
900 to 2800
(1)
Number of Cylinders
6 In-Line
Bore 105 mm (4.13 inch)
Stroke 135 mm (5.315 inch)
(continued)
22
SEBU8731-04
Product Information Section
Product Description
