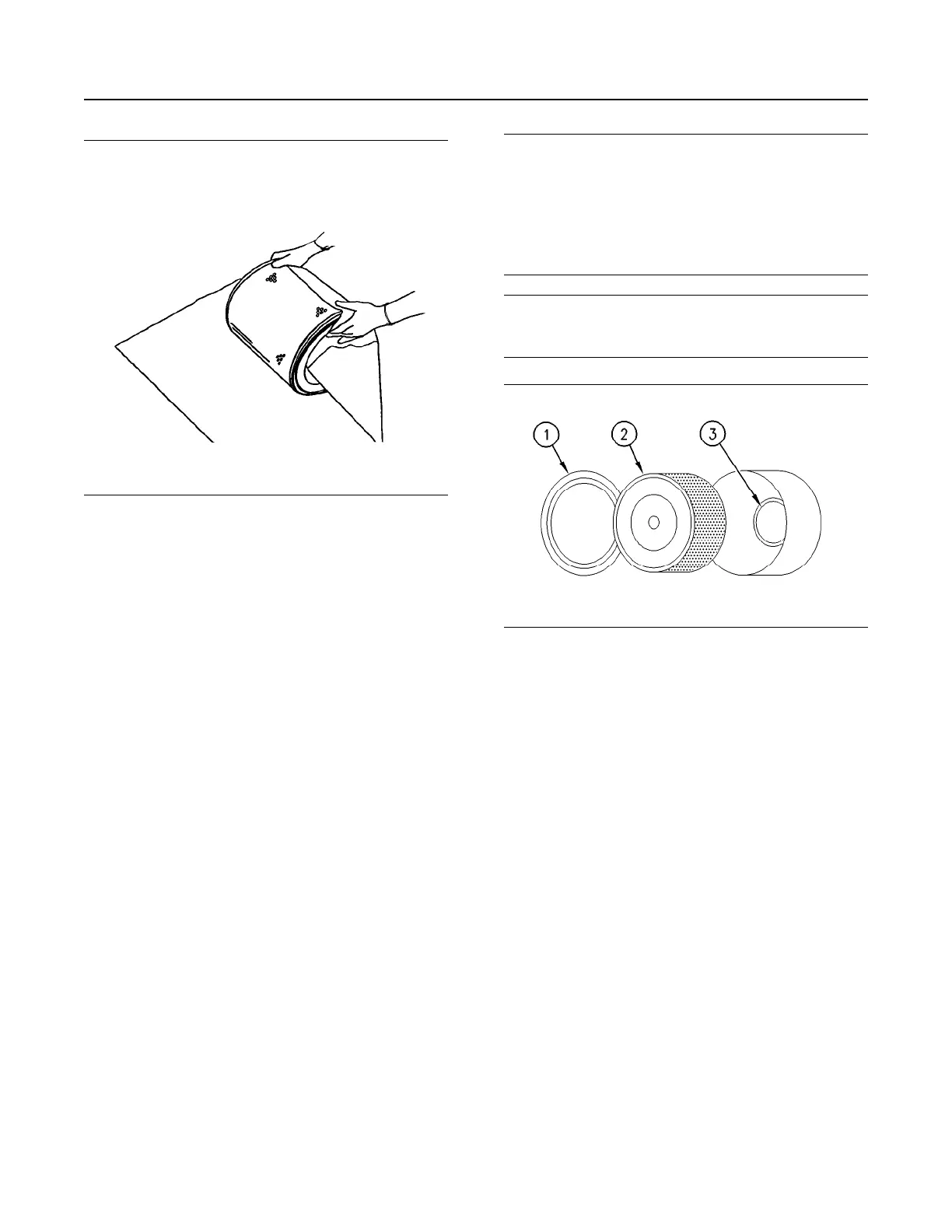

Illustration 44 g03376753
Typical example
Do not use paint, a waterproof cover, or plastic as a
protective covering for storage. An air flow restriction
may result. To protect against dirt and damage, wrap
the primary air cleaner elements in Volatile Corrosion
Inhibited (VCI) paper.
Place the primary air cleaner element into a box for
storage. For identification, mark the outside of the
box and mark the primary air cleaner element.
Include the following information:
• Date of cleaning
• Number of cleanings
Store the box in a dry location.
i01432811
Engine Air Cleaner Element
(Single Element) - Inspect/
Replace
Perform the Operation and Maintenance Manual,
“Engine Air Cleaner Service Indicator-Inspect”
procedure and perform the Operation and
Maintenance Manual, “Engine Air Precleaner Check/
Clean” procedure (if equipped) before performing the
following procedure.
NOTICE
Never run the engine without an air cleaner element
installed. Never run the engine with a damaged air
cleaner element. Do not use air cleaner elements
with damaged pleats, gaskets or seals. Dirt entering
the engine causes premature wear and damage to
engine components. Air cleaner elements help to pre-
vent airborne debris from entering the air inlet.
NOTICE
Never service the air cleaner element with the engine
running since this will allow dirt to enter the engine.
Illustration 45 g00310664
(1) Air cleaner cover
(2) Air filter element
(3) Air inlet
1. Remove air cleaner cover (1) and remove air filter
element (2).
2. Cover air inlet (3) with tape or a clean cloth so that
debris cannot enter the air inlet.
3. Clean the inside of air cleaner cover (1). Clean the
body that holds the air cleaner element.
4. Inspect the replacement element for the following
items:damage, dirt and debris.
5. Remove the seal from the opening of the air inlet.
6. Install a clean, undamaged air filter element (2).
7. Install air cleaner cover (1).
8. Reset the air cleaner service indicator.
i02335405
Engine Air Cleaner Service
Indicator - Inspect
Some engines may be equipped with a different
service indicator.
84
SEBU8731-04
Maintenance Section
Engine Air Cleaner Element (Single Element) - Inspect/Replace
