Control

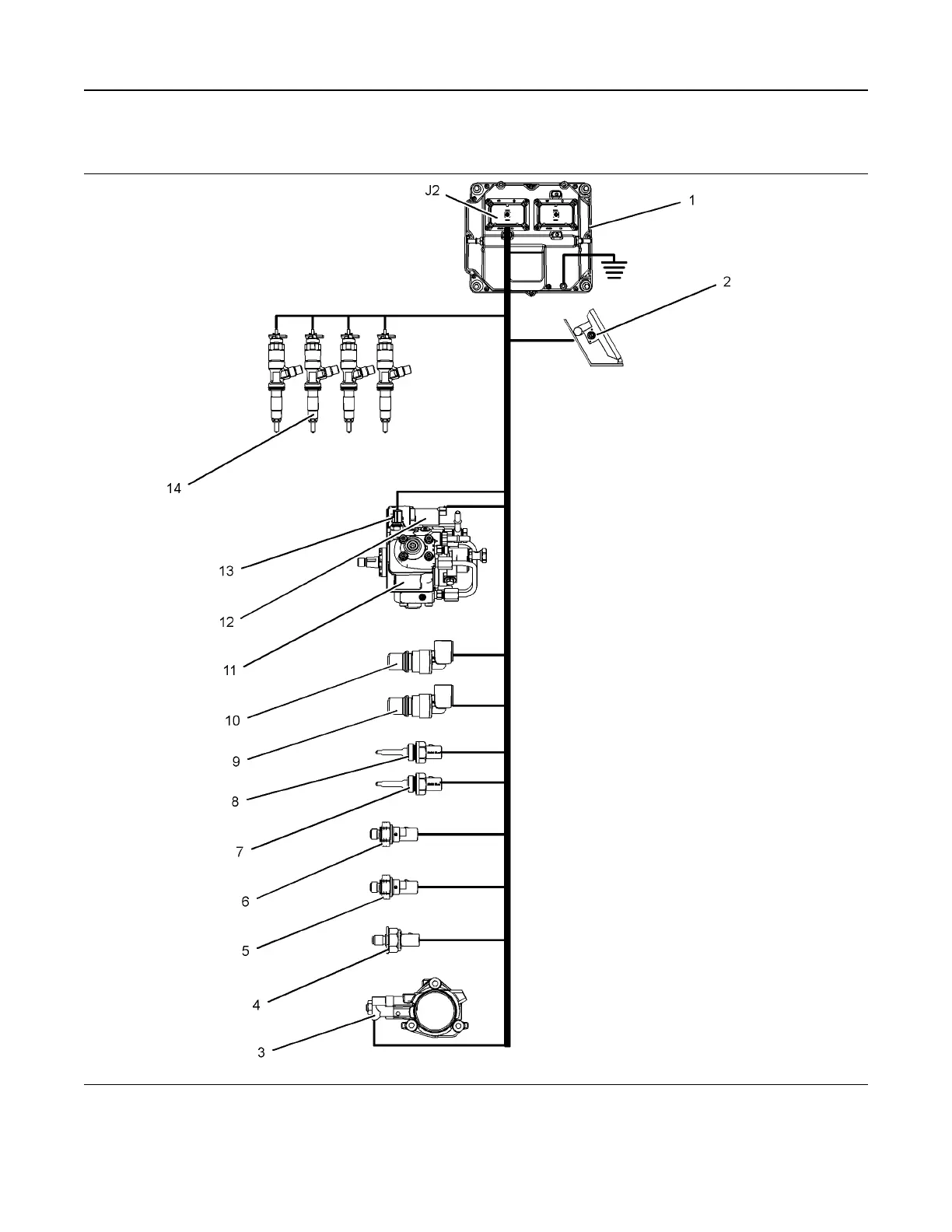

Illustration 38 g02450148
Typical example of the electrical control system for the fuel system
(1) Electronic Control Module (ECM)
(2) Throttle position sensor
(3) Wastegate regulator
(4) Fuel rail pressure sensor
(5) Inlet manifold pressure sensor
(6) Atmospheric pressure sensor
