Aftertreatment System with a DOC, and DEF system

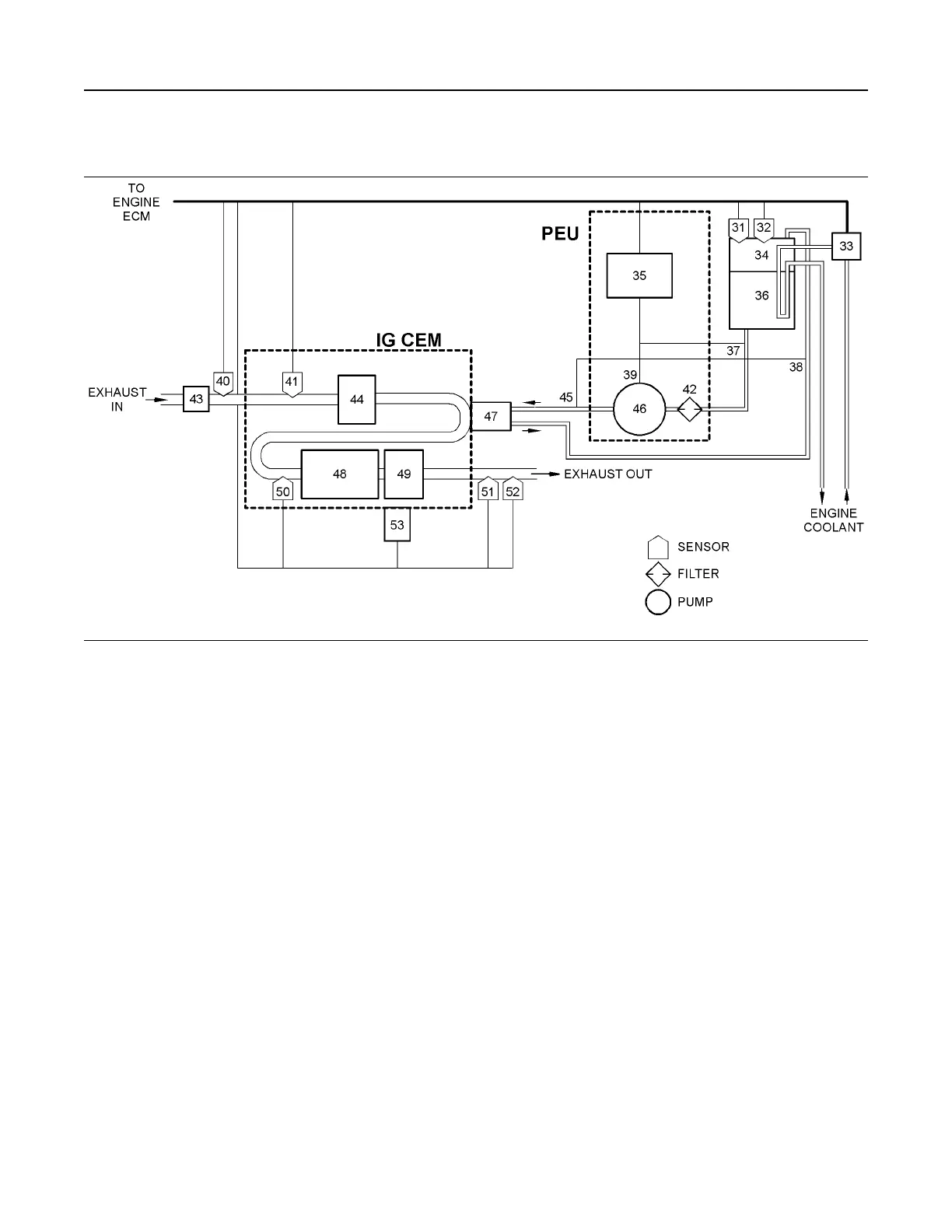

Illustration 44 g03694448
Block diagram for the aftertreatment system with a DOC and DEF system
(31) Diesel Exhaust Fluid (DEF) level sensor
(32) DEF temperature sensor
(33) Coolant diverter valve
(34) DEF header unit
(35) Dosing Control Unit (DCU)
(36) DEF tank
(37) Heated DEF line
(38) Heated DEF line
(39) DEF pump heater
(40) Inlet NOx sensor
(41) Diesel Oxidation Catalyst (DOC) inlet
temperature sensor
(42) DEF filter
(43) Exhaust Back Pressure Regulator
(EBPR)
(44) Diesel Oxidation Catalyst (DOC)
(45) Heated DEF line
(46) DEF dosing pump
(47) DEF injector
(48) Selective Catalytic Reduction (SCR)
catalyst
(49) Ammonia Oxidizing (AMOX) catalyst
(50) SCR inlet temperature sensor
(51) Outlet NOx sensor
(52) Ammonia sensor
(53) Identification module
Sensor Locations for the Engine
The illustrations in this section show the typical
locations of the sensors for the industrial engine.
Specific engines may appear different from the
illustration due to differences in applications.
52 UENR4490-01
Engine Operation
