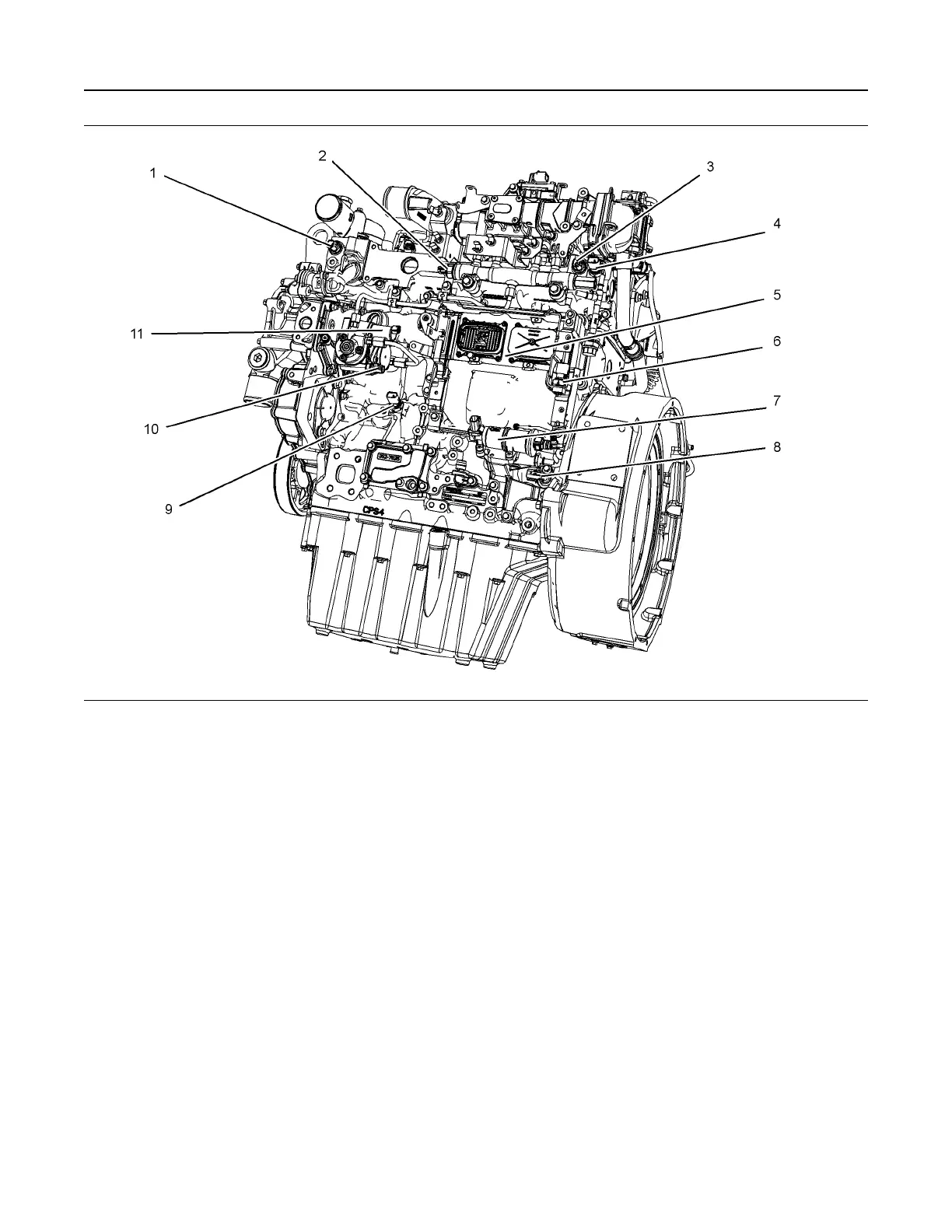

Illustration 45 g03706468
Typical example
(1) Coolant temperature sensor
(2) Fuel pressure sensor
(3) Inlet manifold temperature sensor
(4) Boost pressure sensor
(5) Electronic Control Module (ECM)
(6) Atmospheric pressure sensor
(7) Electric fuel transfer pump
(8) Crankshaft speed/timing sensor
(9) Engine oil pressure sensor
(10) Fuel temperature sensor
(11) Suction control valve for the fuel
injection pump
