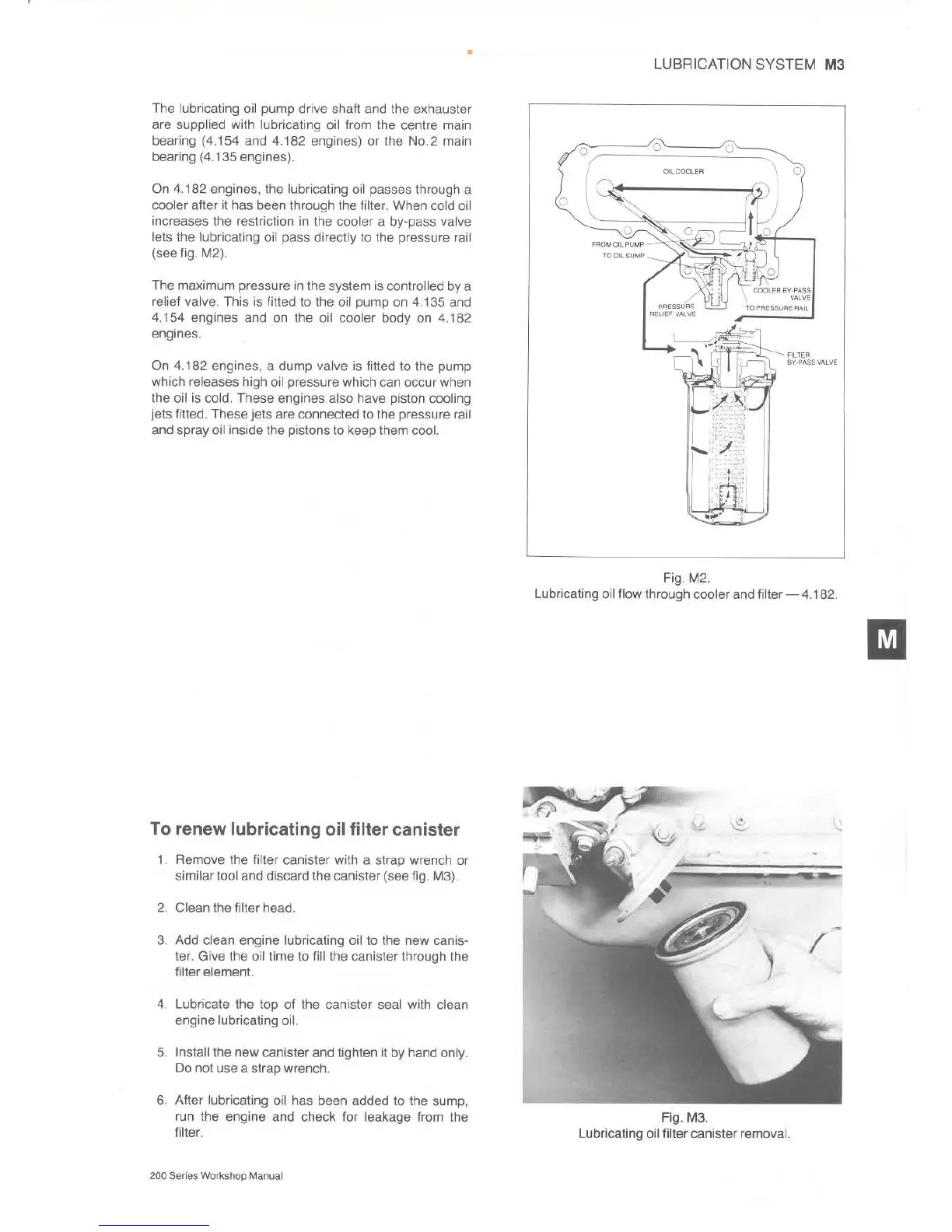

Perkins 4.135 - To Renew Lubricating Oil Filter Canister; Lubricating Oil Flow through Cooler and Filter; Lubricating Oil Filter Canister Removal
