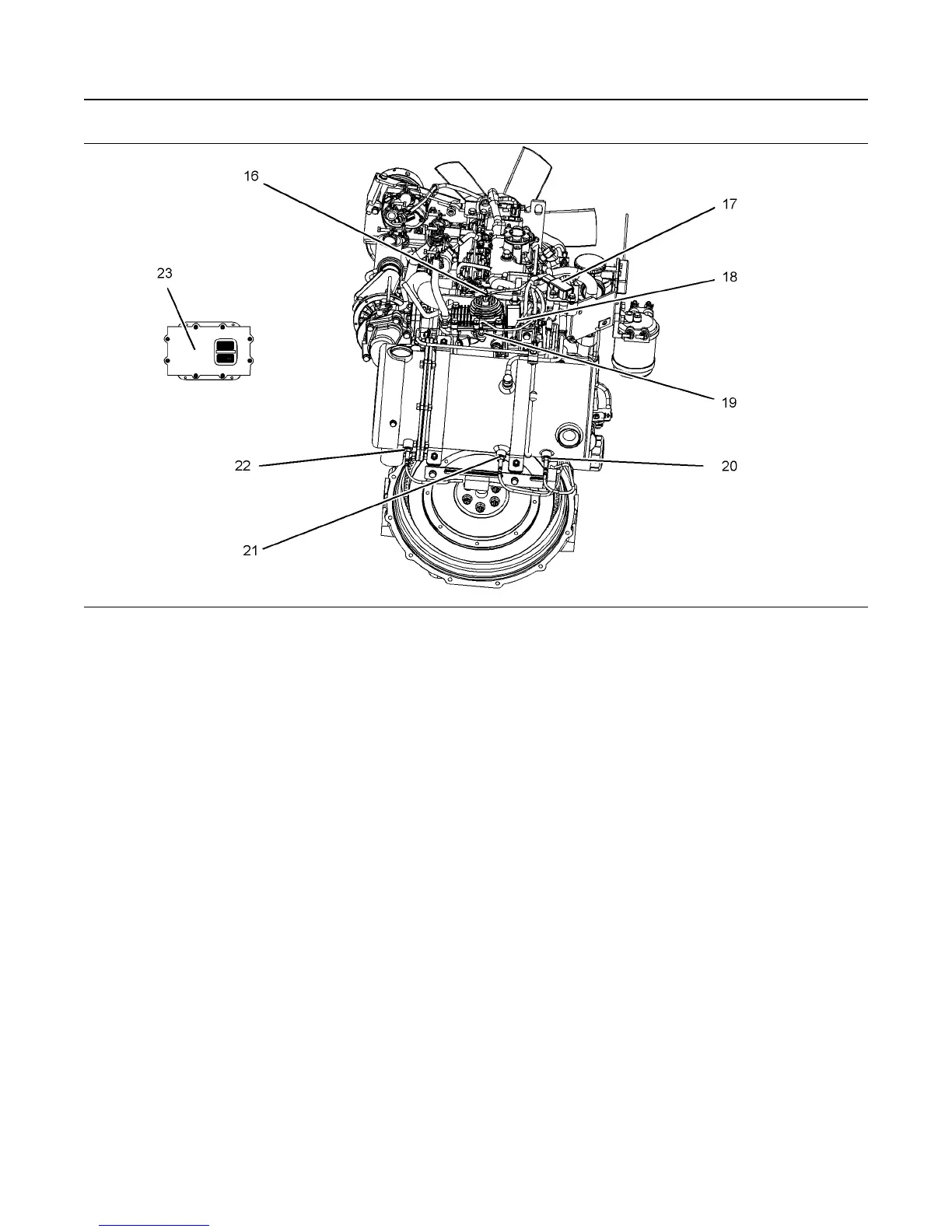

Illustration 32 g03279116
(16) ARD glow plug
(17) DPF pressure differential sensor
(18) ARD injectors
(19) ARD temperature sensor
(20) DOC intake temperature sensor
(21) DPF intake temperature sensor
(22) DPF outlet temperature sensor
(23) ECM
The ECM is remotely mounted. The position of ECM
will depend upon the application.
