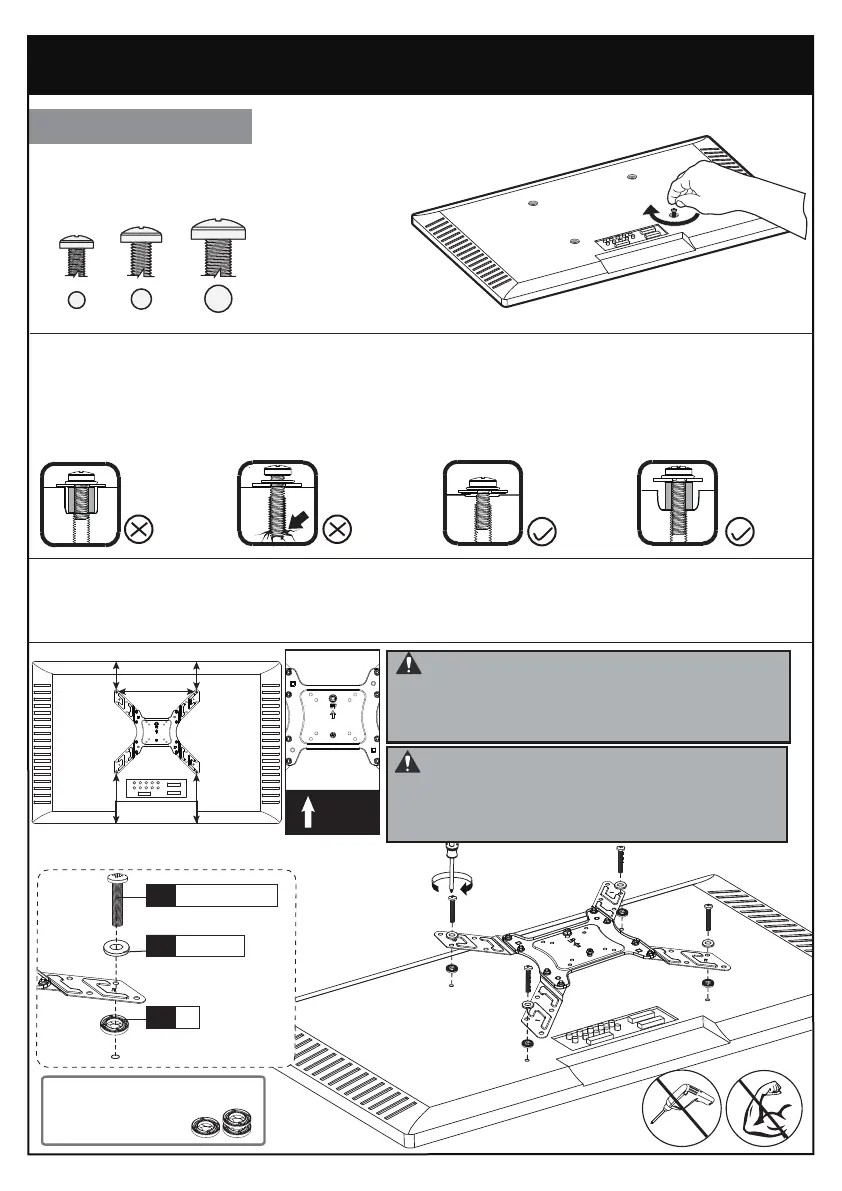

Select TV Bolts
M6M4
M8
Only one bolt size fits your TV.
Secure the Faceplate [01A] or Faceplate [01A] with Extender
Brackets [02] and [03] to TV
Bolt length: Verify adequate thread engagement with bolts or bolts /spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
PLEASE NOTE: When using the spacers, it is important to note that they can be used in
multi-layers (meaning stacked). If you have any difficulty understanding how to install
the TV bolts or spacers, please contact customer service at support@perlegear.com.
Too Short
Too Long Correct
Correct
CAUTION: Ensure the faceplate [01A] or
faceplate [01A] with extender brackets [02]
and [03] is EQUALLY CENTERED on your TV
and securely fastened in place.
UP
Option A (For Flat Back TV)
Step 2
Alternate Setups Spacer
Please Note: The bolt hole locations on
your TV may vary in accordance qith the
manufacturer's design of the TV. We are only
illustrating possible locations of the bolt holes.
05
(If needed)
F1
04
06
C1 / D1 / E1
B1 / B2
